Summary of Contents for MINDS-I DRC-MDWN-001

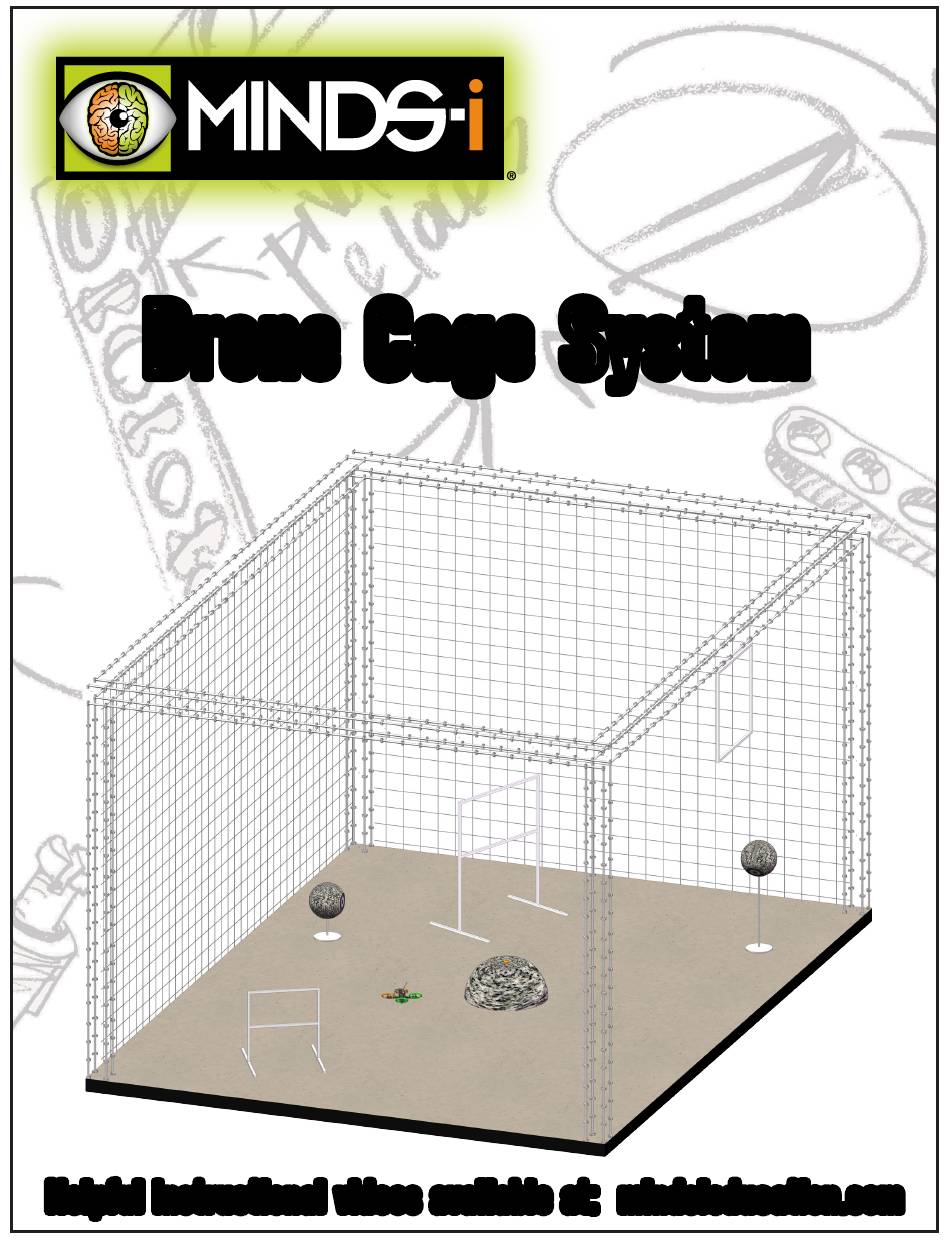

- Page 1 DRC-MDWN-001 Drone Cage System MEDIUM Helpful instructional videos available at: mindsieducation.com...
- Page 3 MINDS-i® PRODUCT SAFETY INFORMATION When safety precautions are followed, your MINDS-i® system will provide years of enjoyment. Use care and good sense at all times when operating this product. Failure to use your system in a safe, sensible manner can result in injury or damage to property. You and you alone must insure that the instructions are carefully followed and all safety precautions are obeyed.
- Page 4 Fully illustrated, step-by-step instructions describe adjustment, operation, and required maintenance procedures. MINDS-i® should not be operated in a crowd, or without adequate space. In an effort to continually upgrade our products, MINDS-i® reserves the right to make improvements and modifications to this system, which may not be reflected in the photographs and specifications printed on this box.
- Page 5 California Ladder Regulations, Safety & Operation A. In construction, except where either permanent or temporary stairways or suitable ramps or runways are provided, ladders shall be used to give safe access to all elevations. 1675(a) B. General requirements for portable ladders are as follows: 1.
- Page 6 fittings. 3276(e)(12) 12. Extension ladders shall be erected so that the top section is above and resting on the bottom section with the rung locks engaged. 3276(e)(13) 13. Do not place ladders in passageways, doorways, driveways, or any location where they may be displaced unless protected by barricades or guards.
- Page 7 • Portable ladder categories: Type IAA:375 pounds, Type IA:300 pounds, Type I:250 pounds, Type II:225 pounds, Type III:200 pounds. • Climb and Work Safely on Ladders • While climbing and working on ladders, you need to climb or work with the body near the middle of the step or rung to keep the load on the ladder centered.
- Page 8 Tips, Tricks & Best Practices 1. Alternate the cam lock when connecting truss sections together. 2. It is best to slide the collapsed truss sections into the 3. Be sure to tuck the extra section of the protective bags protective bags female end first. into the end of the truss before you store them.
- Page 9 Net & Bungee Cord layout 26’ X 15’ 10 BUNGEES 26’ 18’ , 6” 18’ , 6” 18’ , 6” 15’ 26’ 15’ 26’ X 15’...
- Page 10 28 MALE TO FEMALE 2 MALE TO MALE 2 FEMALE TO FEMALE 1 18, 6” X 26’ NET 36 BUNGEES ATTACH BUNGEES IN THE CORNERS NOTED IN FIRST. ATTACH THE NET WITH A BUNGEE AT EACH REMAINING JOINT OF THE TOP FRAME.
- Page 11 4 MALE TO FEMALE 4 BASE PLATE 16 HEX BOLTS MOUNT 4 BASE PLATES TO 4 MALE TO FEMALE, SET ASIDE. 4 MALE TO FEMALE 2 26” X 15’ NET 2 18, 6” X 15’ NET 36 BUNGEES LIFT THE TOP FRAME UP AND ATTACH 4 MALE TO FEMALES TO THE CORNERS.
- Page 12 12 MALE TO FEMALE 24 BUNGEES LIFT THE TOP FRAME UP AND ATTACH 1 MALE TO FEMALE SECTION TO EACH CORNER, REPEAT 3 TIMES. AS YOU RAISE UP EACH SECTION YOU CAN ATTACH THE SIDE NETS TO THE LEGS AT EACH JOINT AS YOU GO. 4 MALE TO FEMALE WITH BASE PLATE 8 BUNGEES...
- Page 13 WITH THE COURSE IN ITS FINAL POSITION CHOOSE A CORNER TO SERVE AS THE ENTRANCE. REMOVE 3 BUNGEES FROM THAT CORNER OF THE NET AS SHOWN. THREAD 2 OF THE NET RETAINERS INTO THE LEG AS SHOWN.
- Page 14 WEAVE THE TENT POLES THROUGH THE BOTTOM HOLE OF EACH SIDE NET TO PREVENT THE UAV FROM SLIDING UNDER THE NET.
- Page 16 For the latest from MINDS-i visit: mindsieducation.com For technical questions with programming email: code@mymindsi.com Patents US 7,517,270; US 7,410,225; US 7,736,211; US 7,841,923; MX 288,350; Additional Patents Pending. Trademarks 3,420,137 and 3,487,694 Copyright © 2012 MINDS-i Inc. All rights reserved.
