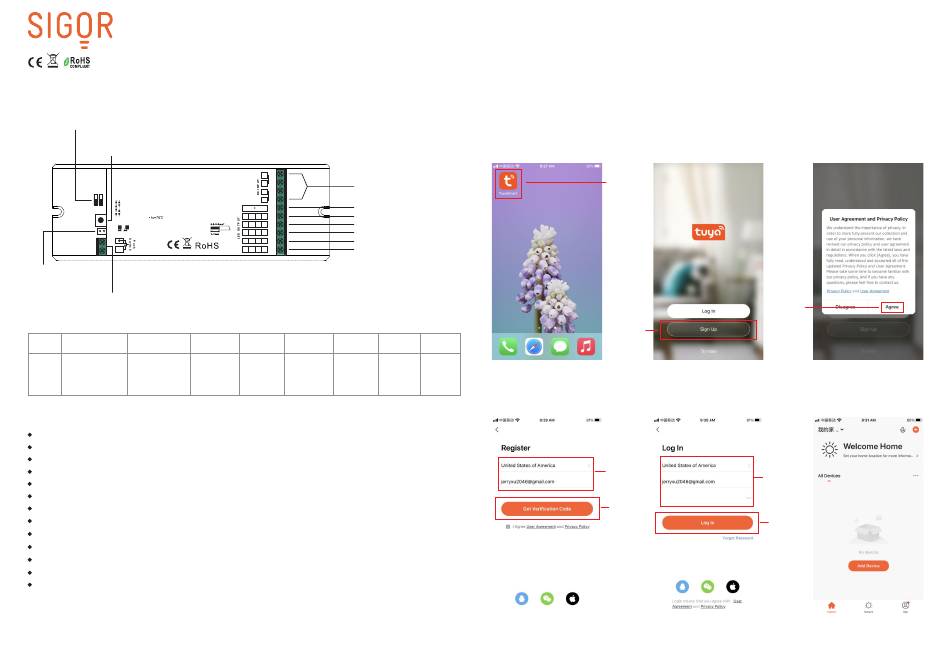

SIGOR 9059101 Quick Start Manual

9059101
Empfänger LUXIGENT/TUYA 5 Kanäle x
Important: Read All Instructions Prior to Installation
Function introduction
Dial switch for device mode selection, DIM, CCT, RGBW and RGB+CCT 4
modes are available, factory default is RGB+CCT mode
"Prog." button, used to pair or delete pairing with
RF remote, to enter WiFi pairing mode

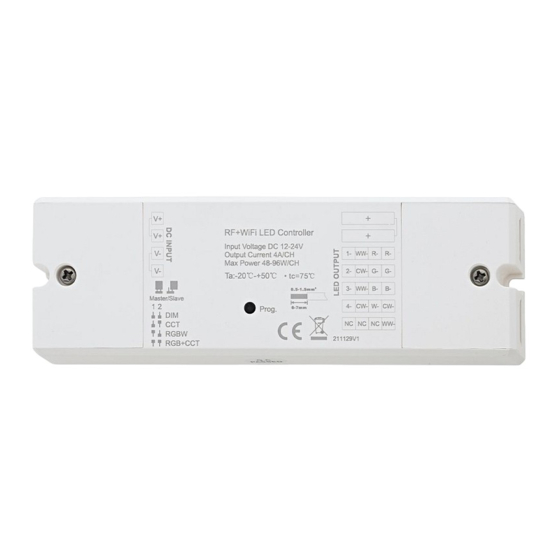

RF+WiFi LED Controller
ON
Uin:12-24V Iout:8Ax5ch Max:8A/ch
1 2
Uin:36V Iout:6Ax5ch Max:6A/ch
DIM
Uin:48V Iout:4Ax5ch Max:4A/ch
CCT
1 2
RGBW
RGB+CCT
ta=-20℃-+50℃
Prog.
Master/Slave
GND
Master/Slave
setting jumper
Push switch input, short press the switch to turn on/off
load, press and hold to increase/decrease brightness
Product Data
Input Output Output Connector
Voltage
Current Power Current Rating
Max. 96W/CH@12V
Max. 8A/CH@12V/24V
Max. 192W/CH@24V
12-48VDC Max. 20A
Max. 6A/CH@36V
Max. 216W/CH@36V
Max. 4A/CH@48V
Max. 192W/CH@48V
Product Features
4 in 1 RF+WiFi+Push Dim LED controller
5 channels 12/24V/36V/48V constant voltage output
Max. 8A output per channel
Enables to set the device type via DIP switches
4 device types are available for setting: DIM, CCT, RGBW, RGB+CCT
Can be controlled through Tuya smart APP
Cloud control enabled based on Tuya platform
Voice control enabled, can be controlled through Amazon Alexa & Google Assistant
Local control available through RF remotes even without WiFi network
Sub-1GHz RF frequency: 434/869.6/916.5MHz
Compatible with universal legacy RF remotes
With push dim function, can be controlled through existing push switches even without WiFi and RF remotes
Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT set the DIP switches with power applied to device.
• DO NOT expose the device to moisture.
V-
V-
DC power input
V+
Pout:96-192W/ch
Pout:216W/ch
V+
Pout:192W/ch
Common Anode Output(+)
CH1:R/R/WW/1 output(-)
1- WW- R- R-
CH2:G/G/CW/2 output(-)
2- CW- G- G-
CH3:B/B/WW/3 output(-)
3- WW- B- B-
CH4:CW/W/CW/4 output(-)
4- CW- W- CW-
CH5:WW/NC/NC/NC output(-)
5- NC NC WW-
NC = No Connection
Ambient
Size(LxWxH)
Wire Size Remarks
Temperature
2
0.05-3.3mm
Constant voltage 170x59x29mm -20℃ ~ +50℃
(12-30AWG)
Operation
1. Do wiring according to wiring diagram.
2. Pair the WiFi LED controller to the smart phone or tablet:
Step 1: Download the "TuyaSmart" APP from APP store or google play, and register an account as instructed,
then log in the account. Please enable bluetooth on your smart phone in advance.
Max. Casing
Temperature
75℃
Tap to run
the App.
Tap Agree.
Tap Sign Up.
Select your Log in with
region and the account
input your you registered.
email address.
Tap to get
verification
code.
Tap to log in.
