Input Voltage:
12/24VAC/VDC
Current Draw: 20mA Idle / 60mA Operating
Inputs:
2 Wet and 2 Dry N.O.
Electrical Life: 100,000 @ rated capacity
D.O.R. #1: 1-30 Seconds
Time Delay
D.O.O. #2: 1-30 Seconds
D.O.R. #3: 1-30 Seconds
0.61" (15.5mm)
0.71" (18mm)
SW1
OFF
ON
ON
OFF
OFF
ON
OFF
ON
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
d s 1 +
DS1+
Switching Network
Bi-Directional Sequencer
SW2
SW3
OFF
ON
1a and 1b
OFF
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
Contact Rating: 3A @ 30VDC
Response Time: 0.3 seconds
Outputs:
2 x Form C (SPDT)
Modes:
8

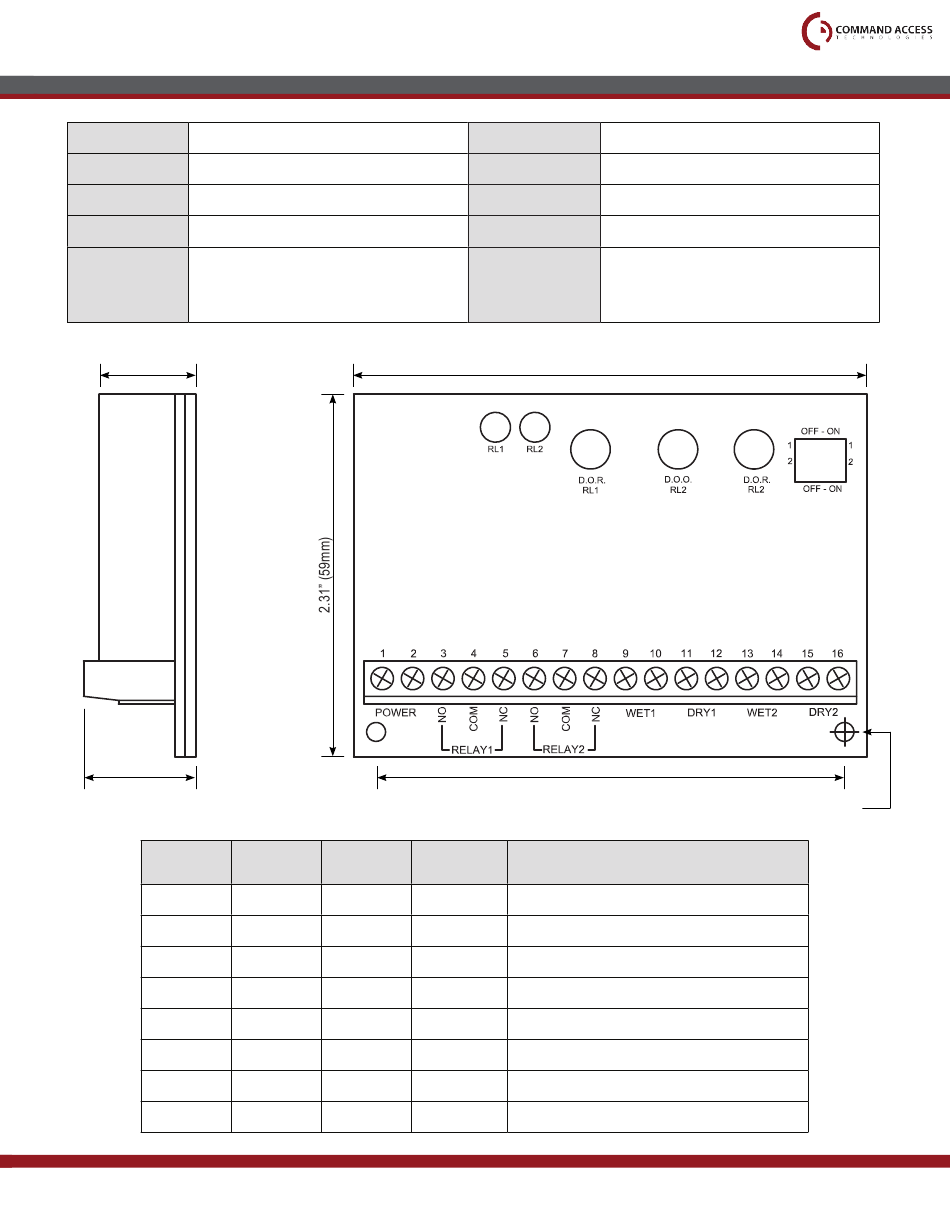

Width- 3.25" (83mm)
Dimensions:
Height- 2.96" (59mm)
Depth- 0.71" (18mm)
3.25" (83mm)
2.96" (75mm)
Mode
Description
Momentary and Momentary Apartment
2
Access Control (Maintained)
3
Smoke Evacuation
4
Latching / Ratchet Mode
5
Bi-Directional Sequencer - Momentary
6
Bi-Directional Sequencer - Maintained
7
Restroom Control - Normally Unlocked
8
Restroom Control - Normally Locked
1
3
3
0.12" (3mm)
# 2 0 6 2 9 _ A
