Summary of Contents for KJM C70

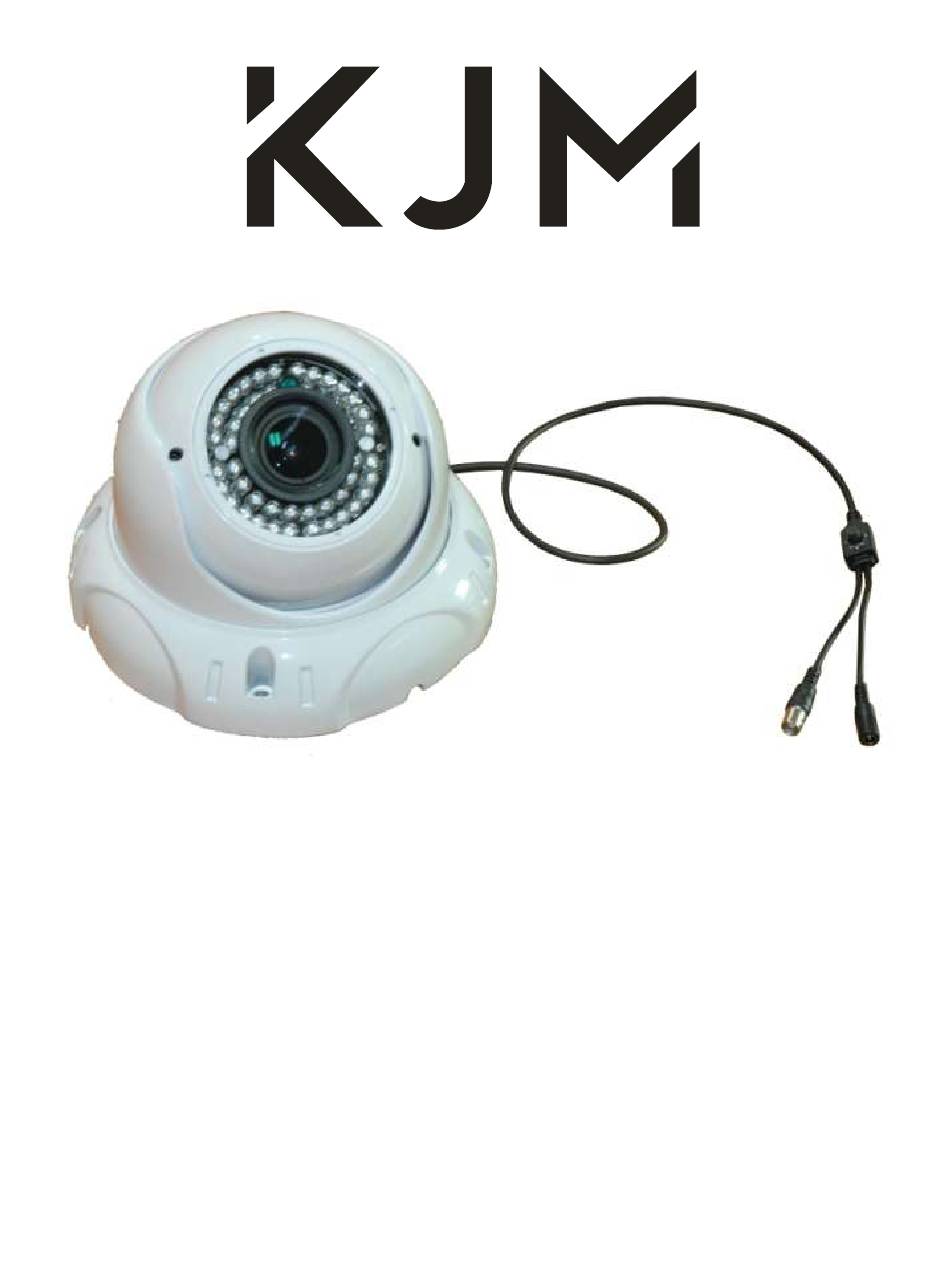

- Page 1 Marine Grade Camera Variable Focal with Day/Night capabilities Installation and Operation Guide...
- Page 2 KJM is dedicated to providing the finest in shipboard cameras and video equipment. Our high quality cameras are built to withstand the harsh marine environment, and are designed by people with over three decades of experience in the marine industry. KJM cameras provide crystal-clear images of whatever you need to monitor, from the engine room to the aft deck.
- Page 3 CAUTION: Be careful not to pinch video or camera cables during installation. 1. Mount the camera base by using the screw holes as guides. Drill two 3/32” (3mm) pilot holes for the mounting screws. 2. Drill one 3/4” (20mm) hole for the camera's cables if installation requires. 3.
- Page 4 Selections: AUTO，OFF，A.FLK，1/160，1/250，1/500，1/700，1/1000，1/1600， 1/2500，1/5000，1/7000，1/10000，1/30000，1/50000，1/90000, (X512，X256，X128，X64，X32， X24，X16，X14，X12，X10，X8，X6，X5，X4，X3，X2 slow shutter speeds) c. SENS-UP – Increases the low LUX performance, by recalculating the brightness level of each pixel Settings: OFF，AUTO X2，AUTO X3，AUTO X4，AUTO X5，AUTO X6，AUTO X8， AUTO X10，AUTO X12，AUTO X14，AUTO X16，AUTO X32，AUTO X64，AUTO X128，AUTO X256， AUTO X512 4.
- Page 5 8. EFFECTS (Additional settings function) a. DZOOM Mode – Allows the camera to digitally zoom into a area Selection: DZOOM PAN - Allows the camera image to be moved to the left or the right Selection: -100 to 100 ...
- Page 6 Electrical DC Connection 2.1mm female plug 12VDC @ 800mA Video Connection BNC Female 1V p-p output Physical 5.5” Diameter base (139mm) x 3.4”H (85mm) Size Weight 2.3LBS (1000 g) Environmental Water Resistance IP66 Storage Temperature -30 to +60°C Relative humidity 95% Max Operating Temperature -10 to +50°C Relative humidity 95% Max FCC STATEMENT...
