This remote is used with American Flame valve components starting with either Serial # 10 or 2014.
If you have a unit manufactured with a Serial # starting with 13, you need a remote for the SIt valve system and please refer
earlier Installation and Operating Instructions for more information.

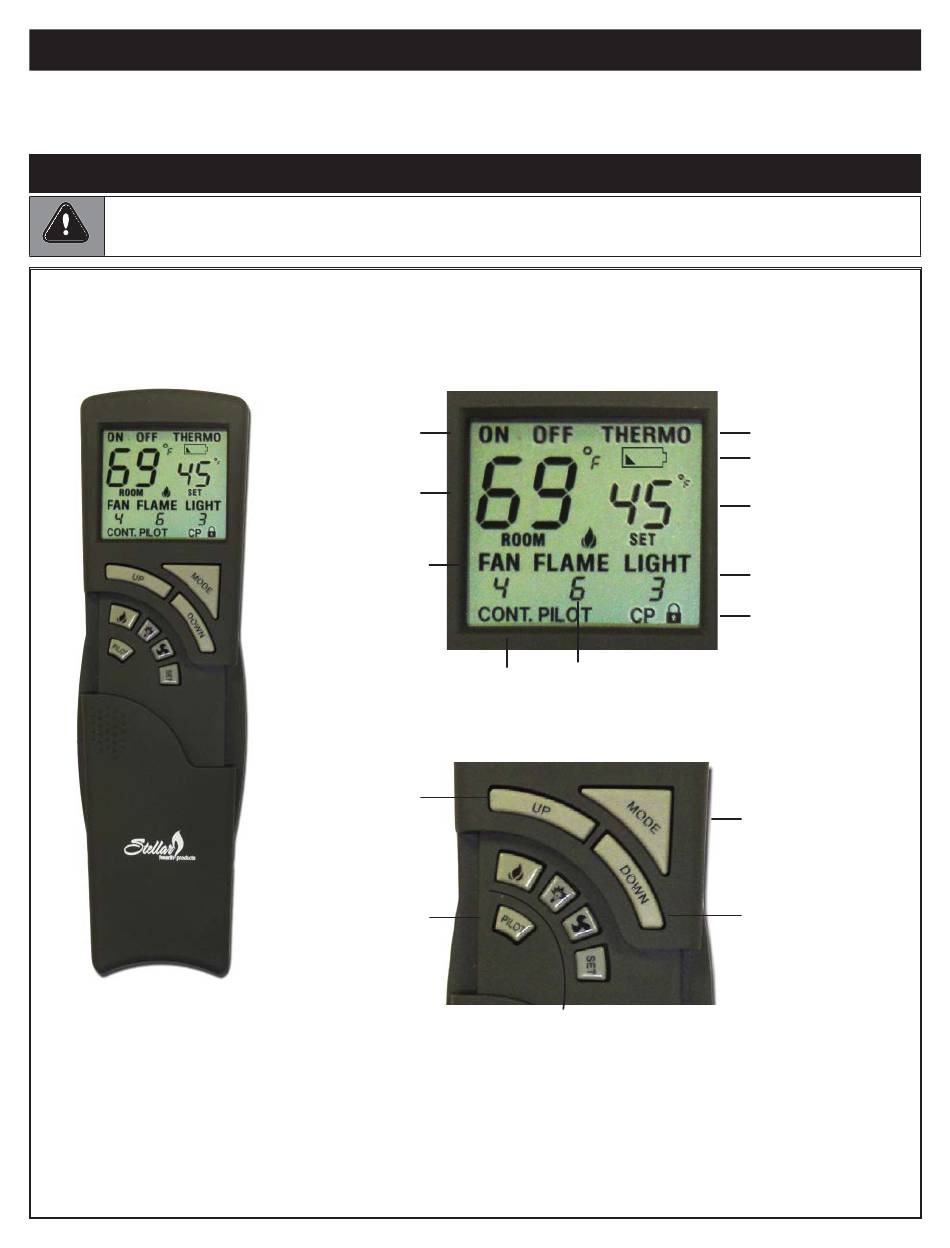

A. REMOTE ICON IDENTIFICATION
NOTE: ON/OFF Rocker Switch must be OFF for the remote to operate.
f i r e - p a r t s . c o m
Figure A.1
INS_Remote Control - Gray
REMOTE CONTROL OPERATION INSTRUCTIONS
Manual On/Off
Room
Temperature
Fan Speed
Up
Pilot
Flame Height
Continuous
Pilot
Left To Right:
Flame, Light, Fan and Set
Thermostat Mode
Battery Life
Set Temperature
(visible only in
Thermostat Mode)
Light Level
Child Proof
Mode
Down
Page 1
Advertisement
Table of Contents
Summary of Contents for american flame AF3003TX
- Page 1 REMOTE CONTROL OPERATION INSTRUCTIONS This remote is used with American Flame valve components starting with either Serial # 10 or 2014. If you have a unit manufactured with a Serial # starting with 13, you need a remote for the SIt valve system and please refer earlier Installation and Operating Instructions for more information.
- Page 2 REMOTE CONTROL OPERATION B. REMOTE CONTROL INFORMATION ELECTRICAL WARNING Electrical wiring must be installed by a licensed electrician. • Do NOT wire 110V to wall switch. • Uninterrupted or continuous power is required at all times in IPI systems EXCEPT when using battery back-up. •...
- Page 3 REMOTE CONTROL OPERATION E. MATCHING SECURITY CODES Before matching security codes make sure 120V AC is connected and powered to fi replace, and hand held remote control is installed with (2) batteries. It may be necessary to program main control module to LEARN the security code of the hand held remote control upon initial use, if batteries are replaced, or if a replacement remote control is purchased from your dealer.
- Page 4 REMOTE RECEIVER INFORMATION H. CELSIUS/FAHRENHEIT CONVERSION Press UP and DOWN keys simultaneously to choose Celsius or Fahrenheit. I. IMPORTANT SAFETY FEATURE This system has a maximum room temperature limit of 95° F (35° C) in both manual and thermostat modes. When room temperature is at or above this point the system will shut down and the hand held remote control will read OFF.
- Page 5 REMOTE CONTROL OPERATION M. FAN MODE This remote will operate the fan, allowing for (6) different speed levels. When the FAN button is pressed, FAN level setting will fl ash on the LCD screen. Press UP or DOWN buttons to select desired fan speed level.
- Page 6 REMOTE CONTROL OPERATION P. THERMO (THERMOSTATE) MODE This remote feature allows you to thermostatically control the fi replace when hand held remote is set to THERMO mode. Set Temperature Range: 45˚F (7˚C) to 90˚F (32˚C). Set remote to THERMO mode by pressing MODE button. The smaller SET window of numbers appears on the LCD screen.
