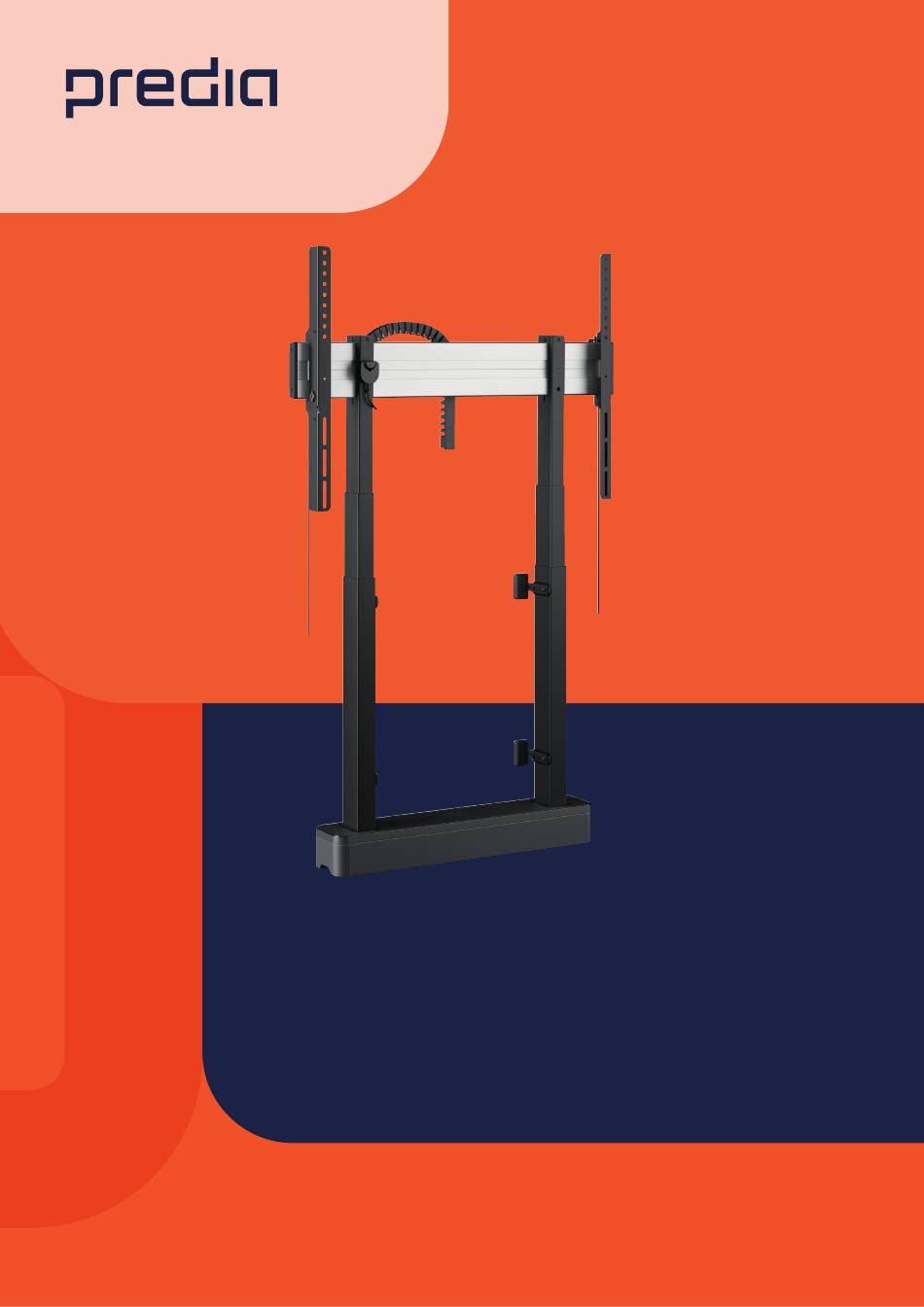

- Page 1 Mounting Instructions PHAS-FlexWall Motorized display lift Floor Stand 50 mm/s Installation & User Manual...
-
Page 2: Table Of Contents
Installation & User Manual PHAS-FlexWall Table of contents Safety Information Declaration of Conformity Mounting Instructions User Instructions Product Data Sheet Checklist All the pictures in this manual are for reference only, subject to our available products. -
Page 3: Safety Information
Installation & User Manual PHAS-FlexWall Safety Information (GB) Important safety information for both Ele rical Safety Mechanical safety in aller and user Conne unit to a properly grounded outlet A ure in allation of unit by authorized In aller: Before arting the in allation only. - Page 4 Installation & User Manual PHAS-FlexWall Safety Information (NL) Belangrijke veiligheidsinformatie voor zowel Elektrische veiligheid Mechanische veiligheid in allateur als gebruiker Sluit het apparaat alleen aan op een Laat de in allatie van het toe el uitsluitend In allateur: Lees aandachtig de veiligheids- corre geaard opconta .
- Page 5 Installation & User Manual PHAS-FlexWall Safety Information (DE) Wichtige Sicherheitshinweise für Monteure und Elektrische Sicherheit Mechanische Sicherheit Verbraucher Schließen Sie das Gerät nur an eine Stellen Sie sicher, da das Gerät nur von einer Monteure: Bi e lesen Sie die Sicherheitshinweise, ordnungsgemäß...
- Page 6 Installation & User Manual PHAS-FlexWall Safety Information (FR) Informations importantes concernant la Sécurité éle rique Sécurité mécanique sécurité de l’in allateur et de l’utilisateur Ne branchez l’appareil que sur une prise de Veillez à ce que l’in allation de l’appareil courant corre ement mise à...
- Page 7 Installation & User Manual PHAS-FlexWall Safety Information (ES) Información de seguridad importante tanto Seguridad elé rica Seguridad mecánica para el in alador como para el usuario Cone e la unidad únicamente a una toma Asegúrese de que la in alación de la In alador: Antes de comenzar la in alación,...
- Page 8 Installation & User Manual PHAS-FlexWall Safety Information (IT) Importanti informazioni sulla sicurezza per Sicurezza ele rica Sicurezza meccanica l’in allatore e per l’utente Collegare l’unità esclusivamente a una A icurarsi che l’in allazione dell’unità sia In allatore: Prima di iniziaare l’in allazione presa adeguatamente me a a terra.
- Page 9 Installation & User Manual PHAS-FlexWall Safety Information (PL) Ważne informacje dotyczące bezpieczeń wa Bezpieczeń wo elektryczne Bezpieczeń wo mechaniczne dla in alatora i użytkownika produktu Urządzenie należy podłączać wyłącznie do Montaż urządzenia może być przeprowadzony In alator: przed rozpoczęciem in alacji prawidłowo uziemionego gniazdka.
- Page 10 Installation & User Manual PHAS-FlexWall Safety Information (RUS) Важная информация по технике безопасности Электробезопасность Механическая безопасность для монтажной организации и пользователя Подключайте устройство только к правильно Монтажом устройства должен заниматься Монтажная организация: прежде чем приступать заземленной розетке. Обеспечьте только авторизованный сервисный специалист.
- Page 11 Installation & User Manual PHAS-FlexWall Additional safety information 1. Power rating: Technical guideline The lifting system is equipped with an Y-cable. The first lead of the Y-cable is used for the internal power supply of the lift system (400W). The installer has the possibility to connect a screen and other peripherals of max 900W to the other lead of the Y-cable.
-
Page 12: Declaration Of Conformity
APPENDIX A: T he following products are covered by this UK declaration of conformity: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products. - Page 13 APPENDIX A: The following products are covered by this EU declaration of conformity: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 14 Naam bedrijf: AANHANGSEL A: Deze EU-conformiteitsverklaring heeft betrekking op de volgende producten: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 15 Vogel’s Products BV Firmenname: ANHANG A: Die folgenden Produkte werden von dieser EU-Konformitätserklärung erfasst: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 16 ANNEXE A : L es produits suivants sont couverts par cette déclaration de conformité de l'UE : PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 17 ANEXO A: Los siguientes productos están cubiertos por esta declaración de conformidad de la UE: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 18 APPENDICE A: I seguenti prodotti risultano coperti da questa dichiarazione di conformità UE: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 19 Vogel’s Products BV D ODATEK A: Następujące produkty są objęte niniejszą deklaracją zgodności UE: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
- Page 20 Vogel's Products BV ПРИЛОЖЕНИЕ А: Данная декларация соответствия ЕС распространяется на следующие продукты: PHAS-FlexWall Art.-Nr.: 7720050PR Predia RISE wall lift PHAS-FlexMobile Predia RISE trolley Art.-Nr.: 7752050PR All the pictures in this manual are for reference only, subject to our available products.
-
Page 21: Mounting Instructions
Installation & User Manual PHAS-FlexWall Mounting Instructions 4X 8,4X25X30 4X M8X45 4X M8X20 4X M8X14 4X M6X18 4X M6X12 8X M6x12x1,6 8X M8x16x1,6 2x M6x8 4x 10 mm 2x M6x10 WARNING All the pictures in this manual are for reference only, subject to our available products. - Page 22 Installation & User Manual PHAS-FlexWall Mounting Instructions MAX POWER (WATT) = 400W MAX DISPLAY EXTRA DEVICES = MAX 900W F R O N BACK All the pictures in this manual are for reference only, subject to our available products.
- Page 23 Installation & User Manual PHAS-FlexWall Mounting Instructions UNTIE PULL LOSBINDEN ZIEHEN B A C B A C All the pictures in this manual are for reference only, subject to our available products.
- Page 24 Installation & User Manual PHAS-FlexWall Mounting Instructions F R O N OPTION 2 OPTION 1 All the pictures in this manual are for reference only, subject to our available products.
- Page 25 Installation & User Manual PHAS-FlexWall Mounting Instructions F R O N LOOSEN 2x FIX 2x B A C 3 Nm All the pictures in this manual are for reference only, subject to our available products.
- Page 26 Installation & User Manual PHAS-FlexWall Mounting Instructions OPTIONAL: REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS (CHECK MANUAL WHITEBOARD SETS) OPTIONAL: ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS (CHECK HANDBUCH WHITEBOARD SETS) 550 mm FIX 2x B A C 3 Nm All the pictures in this manual are for reference only, subject to our available products.
- Page 27 Installation & User Manual PHAS-FlexWall Mounting Instructions MAX 5 CABLES (ø7mm) B A C 275 mm 275 mm All the pictures in this manual are for reference only, subject to our available products.
- Page 28 Installation & User Manual PHAS-FlexWall Mounting Instructions (2x) H2.5 All the pictures in this manual are for reference only, subject to our available products.
- Page 29 Installation & User Manual PHAS-FlexWall Mounting Instructions MIN. PULL-OUT FORCE: 250 N PER BRACKET ø 5.5 ø 8.5 MOUNTING MATERIALS NOT INCLUDED (TIP: USE Fisher © UX 8) LEVEL (2X) FIX (4X) All the pictures in this manual are for reference only, subject to our available products.
- Page 30 Installation & User Manual PHAS-FlexWall Mounting Instructions OPTIONAL: REQUIRED FOR RISE A226 - A228 WHITEBOARD SETS (CHECK MANUAL WHITEBOARD SETS) OPTIONAL: ERFORDERLICH FÜR RISE A226 - A228 WHITEBOARD SETS (CHECK HANDBUCH WHITEBOARD SETS) PREFERENCE VESA 500 4X 8,4X25X30 4X M8X45...
- Page 31 Installation & User Manual PHAS-FlexWall Mounting Instructions All the pictures in this manual are for reference only, subject to our available products.
- Page 32 Installation & User Manual PHAS-FlexWall Mounting Instructions 110 - 230V CLEAN SÄUBERN PRESS 10 SEC. DRÜCKEN 10 SEK. All the pictures in this manual are for reference only, subject to our available products.
-
Page 33: User Instructions
Installation & User Manual PHAS-FlexWall User Instructions MAXIMUM LOAD OF THIS PRODUCT IS 120 KG / 264 LBS. MAXIMALE BELA UNG FÜR DIESES PRODUKT I 120 KG / 264 LBS. DE Achtung! Risiko des Zerquetschens DK Forsigtig! Fare for knusning ES ¡Precaución! Peligro de apla amiento... - Page 34 Installation & User Manual PHAS-FlexWall User Instructions BUTTON FUNCTIONALITY RISE Fun ion Required a ion DOWN Going up bu on Going down Down bu on Reset sy em 1. Move sy em to lowe position. 2. Pre Down bu on 10 sec.
-
Page 35: Product Data Sheet
Installation & User Manual PHAS-FlexWall Product data sheet PHAS-FlexWall Floor Stand 50 mm/s (7720050PR) Dimensions in mm [inch] 55 inch - 86 inch Screen sizes: 140 kg / 308,6 lbs Max load: 28,5 kg / 62,8 lbs Net weight: 29,8 kg / 65,7 lbs... -
Page 36: Checklist
Installation & User Manual PHAS-FlexWall CHECKLIST Motorized Display Lift Floor-Wall Solution Check whether maximum total weight of screen + peripherals does not exceed 120kg Check whether maximum power of screen + peripherals does not exceed 900W Check whether the power cord has strain relief...
