Summary of Contents for ESCEND ALPHA

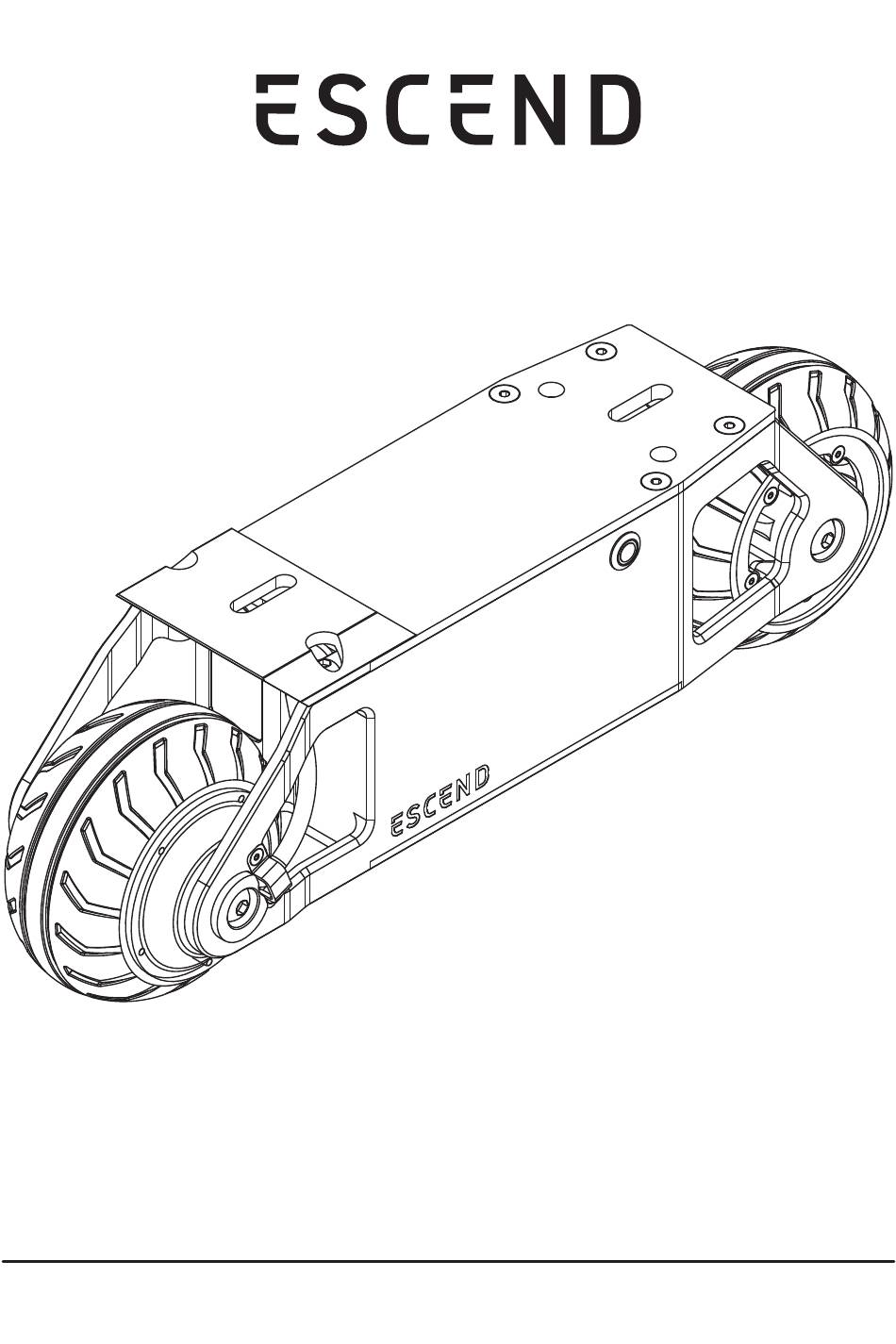

- Page 1 BLADES ALPHA Original Instructions Please read this manual before using the electric skates www.escendblades.com...
-
Page 2: Safety Warning
WARNING - RISK OF ELECTRIC SHOCK: Do not open/tamper with the electronics which is located underneath the battery. Only use ESCEND approved batteries. Tampering or using other batteries will invalidate the warranty. -
Page 3: Disclaimer
DISCLAIMER E-SK8 Ltd is the manufacturer of ESCEND Blades and the owner of the trademark name “ESCEND”. E-SK8 Ltd is the legal entity referred to in the disclaimer below. 1. E-SK8 Ltd is not responsible for any injuries that occur from using this product. -
Page 4: Table Of Contents
POWER ON/OFF CONNECTING & BINDING OPERATING ESCEND BLADES STORAGE AND MAINTAINANCE BATTERY SAFETY GETTING STARTED RIDING OUTSIDE PRIVATE PROPERTY TIPS FOR RIDING ESCEND BLADES MAINTENANCE INSTRUCTIONS FRONT WHEEL MAINTENANCE MOTOR TYRE REPLACEMENT BATTERY REPLACEMENT VENT LABEL REPLACEMENT FRAME POSITION BOOT INSTLLATION... -
Page 5: Introduction
INTRODUCTION Thank you for purchasing ESCEND Blades - Alpha. It is a portable and eco-friendly personal mobility transport, which is incredibly fun to use. Its’ compact dimensions and high manoeuvrability make it perfect for commute and recreational journeys. The frames are compatible with most skate boots so you can ride ESCEND Blades in the comfort of your own boots! It allows you to travel up to 15km with a top speed of 25 km/h. -
Page 6: Getting To Know The Skates
GETTING TO KNOW THE SKATES PACKAGING CONTENTS PARTS: TOOLS: SPARE PARTS - LEFT SKATE (x1) - 5mm Hex Key (x1) - Vent Label (x2) - RIGHT SKATE (x1) - 4mm Hex Key (x1) - REMOTE (x1) - 3mm Hex Key (x1) - SKATE CHARGER (x1) - 2.5mm Hex Hey (x1) - REMOTE CHARGER (x1) - Page 7 Motor Mount Heel Support Bottom Panel Power Switch Front Wheel...
- Page 8 Motor Spacer Barrel Heel Mounting Points (160 - 195 mm) DOOP Boot 2x Mounting Points Front Mounting Point (160 - 195 mm) Barrel...
-
Page 9: Remote Glossary
2.3 REMOTE GLOSSARY Throttle Remote Charging Port (USB C) Ride Mode Switch Power Switch OLED Display... -
Page 10: Remote Oled Display
2.4 REMOTE OLED DISPLAY km/h T : --------, --km O : --------, --km km/h T : --------, --km O : --------, --km km/h T : --------, --km O : --------, --km km/h T : --------, --km O : --------, --km Remaining capacity FORWARD of the remote battery... -
Page 11: User Instructions
USER INSTRUCTIONS 3.1 CHARGING - SKATE Charging 1. Remove the rubber cover on charging port Port 2. Ensure the orientation of charger groove is the same as on charging port and plug in the charger Notes: - The indicator on charger turns green when skates are fully charged or when the charger is disconnected from skates - The indicator on charger turns red during charge... -
Page 12: Power On/Off
3.3 POWER ON/OFF Thumb Throttle Power Switch 1. Power on the skates and remote by holding the Power Switch for 2 seconds, until the light/ indicator turns on 2. Repeat the same steps for powering off the km/h devices T : --------, --km O : --------, --km Note: You can power on the devices in any DEFAULT SCREEN... -
Page 13: Connecting & Binding
3.4 CONNECTING & BINDING Connecting & Binding operation should be used for pairing the remote to skates, changing the remote units, changing the level of regenerative braking STEP 1 and adjusting drivetrain system for a different wheel size REMOTE MODE - Prior to doing this procedure, ensure that both skates and remote are switched off - Use the “Thumb Throttle”... -
Page 14: Operating Escend Blades
3.5 OPERATING ESCEND BLADES Ride Mode Switch Power On/ Drive Direction km/h Speed T : --------, --km Mode O : --------, --km DEFAULT SCREEN Accelerating & Braking: • Push the thumb throttle forward to accelerate • Push the thumb throttle backwards to brake Changing the ride mode: •... -
Page 15: Storage And Maintainance
• DO NOT charge in a wet or damp area • DO NOT charge when the skates are powered ON • Only use the ESCEND charger supplied • DO NOT use the battery to power any other equipment • DO NOT take apart the electronics and tamper with cabling... -
Page 16: Battery Safety
• Never expose the battery to temperatures above 40 Degrees Celsius • Only use the official ESCEND charger • Never leave the skates unattended when charging • Never run the skates while charging • If you do not plan on using the skates for more than 2 months, then try to leave the battery around 50% charge (SOC) •... -
Page 17: Getting Started
• For more learning tips, scan the QR code below to see the video tutorials on our Youtube chanel Chanel Name: ESCEND 4.1 RIDING OUTSIDE PRIVATE PROPERTY • Abide by the laws and regulations of your country or state •... -
Page 18: Tips For Riding Escend Blades
4.2 TIPS FOR RIDING ESCEND BLADES SPEED BUMPS Take care when going over speed bumps, do not go over them at high speeds and keep your balance. Even though the skates can handle a level of abuse they are not designed for extreme jumps or tricks. -
Page 19: Maintenance Instructions
MAINTENANCE INSTRUCTIONS WARNING: Ensure that each skate and remote are powered off when during any maintenance procedure 5.1 FRONT WHEEL MAINTENANCE 1. Loosen the Front Wheel from a fixed position by unscrewing Axle Screw with 5mm Hex Key and pull it away from the frame 2. -
Page 20: Motor Tyre Replacement
5.2 MOTOR TYRE REPLACEMENT 1. Prior to removing the Motor, Protective Wire Cap should be removed by Barrel unscrewing x2 M3x5mm Screws, using 2mm Hex Key. 2. Loosen the motor from a fixed position by unscrewing Axle Protective Screw with 5mm Hex Wire Cap Key and remove the Motor Mount, Barrel... -
Page 21: Battery Replacement
5.3 BATTERY REPLACEMENT WARNING: When replacing the battery, ensure that it is done in a dry and safe environment. Remove any items of clothing or jewellery that can conduct electricity (metal) and short the terminals on XT60 connector. Prior to battery removal and installation, battery pack should be visually inspected for any damage on the main body and wires. - Page 22 1. Remove the bottom panel by removing x4 M5 screws with 3mm Hex Key 2. x2 Foam Pads should be removed from enclosure prior to removing battery pack 3. Battery pack should be taken out of the frame prior to disconnect procedure.
-
Page 23: Vent Label Replacement
5.4 VENT LABEL REPLACEMENT NOTE: Vent Label should be replaced if it gets pierced, damaged or it starts to peel off 1. Remove the old Vent Label 2. Clean the application area with IPA solution or alcohol wipes, ensuring that it is free from any sort of contamination. Make sure for IPA solution to dry out prior to applying the new label. -
Page 24: Frame Position
5.5 Frame Position NOTE: When installing the boots, make sure the left and right boots are mounted to correct frames. This will minimise the level of scratches and wear on the frames caused by falls and other Left frame Right frame damage. -
Page 25: Doop Boots Instllation
5.7 DOOP Boots installation 1. Prior to mounting Doop boots Ankle Support Square Nuts to frames, adjust the boots to fit your foot size by changing the position of ankle support on the soleplate NOTE: We recommend trying out the doop boot with your shoes to adjust it perfectly and making a note of the Ankle Support position on... -
Page 26: Ufs Adapter Instllation
5.8 UFS Adapter installation 1. Prior to UFS adapter installation, heel support should be removed by undoing x2 M6x15mm (Button Head) screws 2. Prior to UFS adapter installation, x2 front M5x15 mm (Countersunk Head) screws on the Top Plate should be removed 3. -
Page 27: Techincal Parameters
TECHNICAL PARAMETERS SECTION PARAMETERS DETAILS Product Dimensions 129.5 x 99.7 x 394.9mm (Per Skate Platform) Specification Wheelbase 290 mm Total Weight 3.7 kg x 2 Ground 32.5 mm Clearance Climbing Angle 20 Degrees Incline (Max) Frame Material Aluminium 6061 & Thickness Min Load 40 kg Product... - Page 28 SECTION PARAMETERS DETAILS Motor Motor Type Permanent magnet BLDC Hub Motor - 90 x 64.3 mm Parameters Rated Output 400W x 2 Torque 5 Nm Max Instant 600W x 2 Power Rated Voltage 25.2V Max Tyres & Type Silicone Rubber - Puncture Proof Bearings Specification...
-
Page 29: Warranty
WARRANTY STANDARD WARRANTY COVER • The warranty covers all products sold by ESCEND through their official website or official channels. • Please check the quality of the products upon arrival and contact us if anything is out of the ordinary. For items damaged upon arrival, you must contact us within 2 weeks of receiving the product. -
Page 30: Returns Procedure
NOT covered by ESCEND’s Standard Warranty. RETURNS PROCEDURE Any warranty claims must go through the official channels by filling out a returns form and waiting for confirmation from ESCEND team. Any products that are received with no “Returns” documentation will be destroyed. -
Page 31: Fcc Requirements
FCC REQUIREMENTS Changes or modifications are strictly prohibited and if not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. -
Page 32: Product Id & Manufacturer Information
PRODUCT ID & MANUFACTURER INFORMATION MANUFACTURED BY: E-SK8 Ltd MANUFACTURER ADDRESS: 20-22 WENLOCK ROAD, LONDON, N1 7GU, UNITED KINGDOM EU AUTHORISED REPRESENTATIVE: Comply Express Unipessoal Limitada, StartUp Madeira, EV141, Campus da Penteada, 9020 105 Funchal, Portugal MODEL NUMBER: AV1 FCC ID: 2A7XJ - AV1 IC ID: 28809 - AV1 PLACE LABEL SERIAL NUMBER:...
