Page 3
safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
Page 4
safety information 6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling objects. 7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric shock.
Page 5
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.
Page 6
important safety instructions Other Notes 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Page 7
WARNING • To prevent damage which may caused by IR LED, don't stare at operating lamp. for below models only. SCO-6025R* / SCD-6025R* Risk Group 1 WARNING IR emitted from this product. Do not stare at operating lamp.
INTRODUCTION Features Components and Accessories Component names and functions INSTALLATION Before installation Installation(SCD-6025R) Adjusting the monitoring direction for the camera (SCD-6025R) CONNECTION Connecting to Monitor Connecting to Power Using Coaxial Communications CAMERA OPERATION Menu Configuration Menu Setup TROUBLESHOOTING Troubleshooting...
FEATURES y High Resolution Use of a 2 mega pixel CMOS device provides clear pictures with a resolution of 1945x1097. y Excellent Sensitivity <SCD-6025R> - Color : 0.17Lux (F1.6, 1/30 sec) B/W : 0Lux(IR LED on) <SCO-6025R> - Color : 0.11Lux (F1.6, 1/30 sec)
COMPONENTS AND ACCESSORIES Check if the following items are included in the product package. <SCD-6025R> High Resolution Camera User Manual SCD-6025R SCO-6025R Camera User Manual Tapping Screw Template 10_ introduction...
Page 11
<SCO-6025R> High Resolution Camera User Manual SCD-6025R SCO-6025R Camera User Manual Tapping Screw Template English_11...

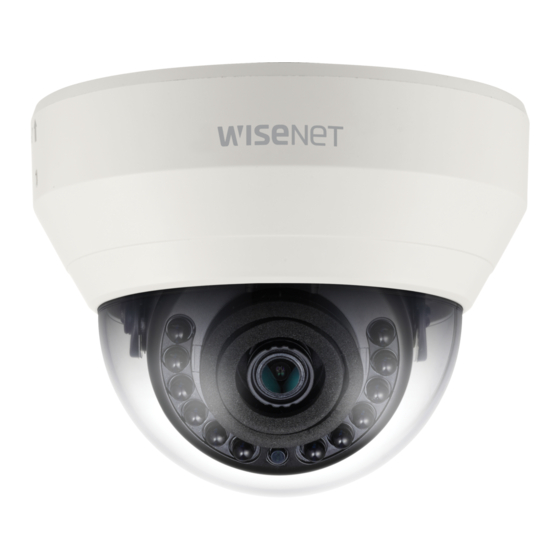

COMPONENT NAMES AND FUNCTIONS SCD-6025R Dome Cover Rotate base : control rotating angle of camera. Lens Module ➌ Function Setup switch : Display the menu on the screen and move the cursor to four ➍ directions to confirm status or after changing a selected item.
Page 13
SCO-6025R ➍ ➎ ➌ ➏ Camera Sunshield Knob Sunshield : Fixing the sunshield onto the camera. Front cover ➌ Function Setup Switch : Display the menu on the screen and move the cursor to four ➍ directions to confirm status or after changing a selected item. ...
Installation BEFORE INSTALLATION Ensure you read out the following instructions before installing the camera: y You have to check whether the location (ceiling or wall) can bear five times the weight of your camera. y Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
INSTALLATION(SCD-6025R) Disassembling 1. Use one hand to hold the camera’s bottom part and turn the cover counterclockwise with another hand to separate it. English_15...
Page 16
Installation Installing the camera on a ceiling or wall 1. Attach the installation template to the selected area and punch 2 holes as shown in the figure. 케이블 구멍 2. Use the 2 supplied screws to fix the camera to the 2 punched holes. y Set the <FRONT>...
Adjusting the monitoring direction for the camera(SCD-6025R) Lens rotation Tilt ` Adjusting the monitoring direction You can adjust the camera direction only when the camera is fixed on the ceiling. Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.
Connect the Video OUT port on the rear panel of the camera to a AHD DVR. RE C HD D ALAR M NETWOR K BACKUP POWE R AHD DVR VIDEO POWER SCD-6025R Monitor SCO-6025R RE C HD D ALAR M NETWOR K BACKUP POWE R AHD DVR...
CONNECTING TO POWER You can connect power as shown in the following figure. Power Input Terminal SCD-6025R SCO-6025R Power Input Terminal When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm...
OSD Control method CAMERA MENU/ENTER UP KEY DOWN DOWN KEY LEFT LEFT KEY RIGHT RIGHT KEY RE C HD D ALAR M NETWOR K BACKUP POWE R VIDEO POWER COAX Coaxial Cable SCD-6025R COAX Coaxial Cable SCO-6025R 20_ connection...
Page 21
- Video Cable The camera's video output port is connected to the DVR with a BNC coaxial cable, shown below. Recommended Cable Distance Specification 500m 5C2V It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable.
IMAGE ADJ SPECIAL ◦ ◦ ◦ DAY/NIGHT DEFOG PRIVACY ◦ ◦ MOTION RETURN EXIT ◦ ◦ ◦ SAVE NOT SAVE RESET MENU SETUP Use the Function Setup switch within the camera. Function Setup switch <SCO-6025R> <SCD-6025R > 22_ camera operation...
Page 23
MAIN SETUP 1. VIDEO FORMAT Select the Change the status 2. PROFILE function using BASIC using the Function the Function 3. WHITE BAL Setup switch. Setup switch. 4. EXPOSURE 5. BACKLIGHT 6. SPECIAL 7. EXIT SAVE 1. Press the Function Setup switch. y Main SETUP menu is displayed on the monitor screen.
Page 24
camera operation PROFILE 1. When the SETUP menu screen is MAIN SETUP displayed, select ‘PROFILE’ by using 1. VIDEO FORMAT the Function Setup switch so that 2. PROFILE BASIC the arrow indicates ‘PROFILE’ . 3. WHITE BAL 2. Select a desired mode using the 4.
Page 25
White Bal (White Balance) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen MAIN SETUP is displayed, select ‘White Bal’ by 1. VIDEO FORMAT using the Function Setup switch so 2. PROFILE BASIC that the arrow indicates ‘WHITE BAL’...
Page 26
camera operation EXPOSURE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’ . 2. Select a desired mode using the Function Setup switch. y BRIGHTNESS : Adjusts the video EXPOSURE brightness.
Page 27
When adjusting the noise reduction level in the SSNR4 mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image. y DWDR When there are both bright and dark areas at the same time, this mode makes both areas distinctive.
Page 28
camera operation BACKLIGHT The camera uses high performance DSP chips that are designed to clearly display the object and the background despite severe reverse light. 1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Function Setup switch. so that the arrow indicates ‘BACKLIGHT’ . 2.
Page 29
SPECIAL 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Function Setup switch so that the arrow indicates ‘SPECIAL’ . 2. Select a desired mode using the Function Setup switch. y DISPLAY If the SPECIAL menu screen is ➊...
Page 30
camera operation - FONT COLOR : You can change the OSD font color. (WHITE, YELLOW, GREEN, RED, BLUE) - LANGUAGE : You can select the menu language according to your requirements. - RETURN : Return to the SPECIAL menu. y COAX : You can select whether to use COAX communication. y IMAGE ADJ If the SPECIAL menu screen is displayed, use the Function Setup switch so that the ❶...
Page 31
y DAY/NIGHT: You can display pictures in color or in black and white. If the SPECIAL menu screen is displayed, use the Function Setup switch so ➊ that the arrow indicates ‘DAY/NIGHT’. Select a desired mode using the Function Setup switch according to the ➋...
Page 32
camera operation y DEFOG : You can use the defog mode to allow the camera to automatically detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. If the SPECIAL menu screen is displayed, use the Function Setup switch so that the ➊...
Page 33
y MOTION : This product generates signals each time an object movement is detected in the four areas of the screen so efficient monitoring can be achieved. If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow ➊...
Page 34
camera operation - If an object’ s brightness or color is similar to that of the background - If there is little movement near the screen edge - If multiple movements keeps occurring randomly, such as scene switching or sudden light changes - If an object fixed in the same location keeps moving - Moving away from the camera or approaching the camera.
Page 35
troubleshooting TROUBLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and monitor are properly connected.
