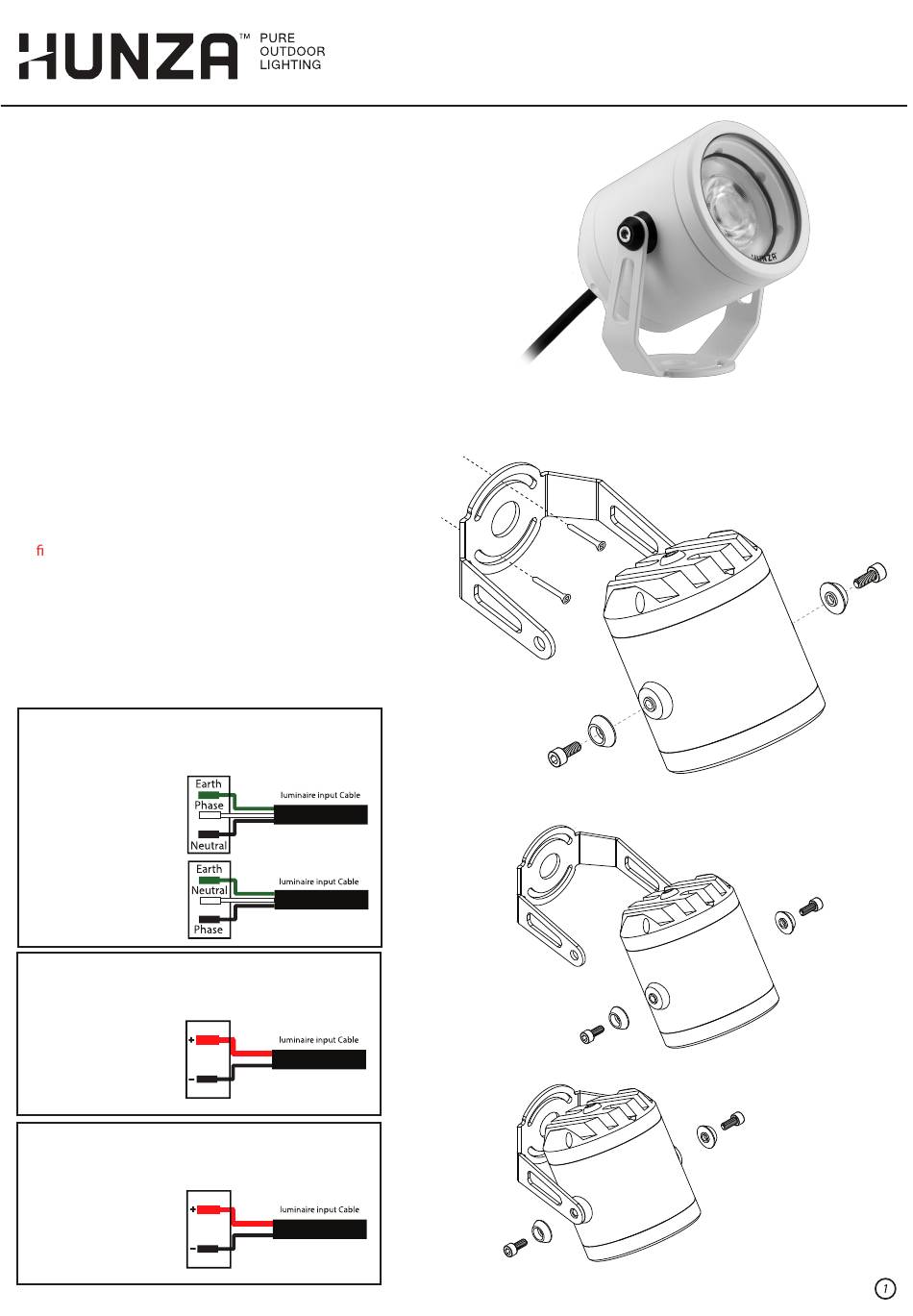

Hunza ULTRA 12 SPOT Installation Instructions

ULTRA 12 SPOT
Installation instructions
Follow Diagram opposite to correctly fix
the Bracket to the desired surface.
Fixing screws are provided however
some mediums may require different
fixing hardware. If so please ensure the
fixing hardware is adequate to take the
weight of the fixture.
After the Bracket has been fixed in place
make the input connections. All
connections should be water tight to stop
water ingress into the fixture via power
cables.
See diagrams below for correct wiring
Warning: Do not connect secondary side (output) of a live
driver to the Fixture. This will cause a spike in voltage that
can damage the LED. When connecting or disconnecting
the tting always ensure the 120/240V power supply is
disconnected.
When using a photocell and/or timer we recommend using
devices with relay outputs as opposed to electronic. The
high frequency of electronic devices can lead to failure of
the LED driver.

120/240V (RETRO) CONNECTIONS

Make input connections according to diagram below.
(Green)
INPUT: 100-277VAC
(white)
(Black)
(Green)
INPUT: 100-277VAC
(white)
USA
(Black)

24VDC INPUT CONNECTIONS

Make input connections according to diagram below.
(Red)
24VDC CONSTANT
VOLTAGE
(Black)

REMOTE DRIVEN (SERIES) CONNECTIONS

Make input connections according to diagram below.
(Red)
DRIVER OUTPUT:
CONSTANT
CURRENT 700mA
(Black)
Max, 18Vdc
POSITIVE
NEGATIVE
POSITIVE
NEGATIVE
NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR
LOCAL ELECTRICAL AUTHORITY REGULATIONS, WITH WHICH
ALL INSTRUCTIONS HERE IN MUST COMPLY.
PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
The Ultra 12 Spot must be specified with a mounting accessory.
