Ozark Trail 10 x 25 COMPACT BINOCULAR Quick Start Manual

10 x 25 COMPACT BINOCULAR
•Durable roof-prism design • Coated optics for true color

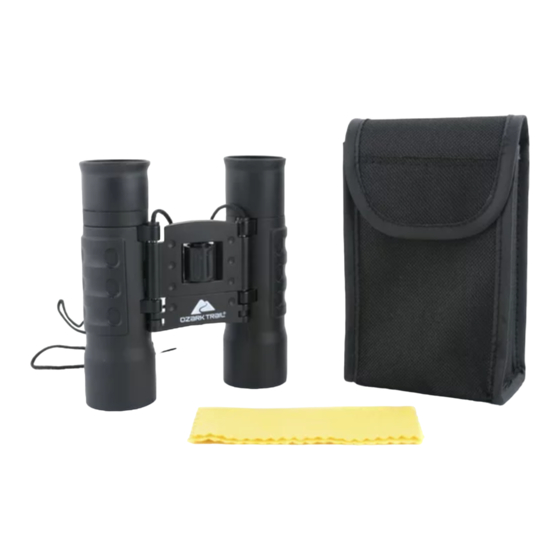

• Includes case, cleaning cloth and strap
Parts:
1. Eyepiece/Eyecups
2. Diopter
3. Focus Wheel
How to adjust the distance between your eyes:
The distance between your eyes is called interpupillary distance, It varies
from person to person. To achieve perfect alignment of the lenses to eyes,
follow these simples steps.
1. Hold your binoculars in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart
until you see a single circular field. Always reset your binoculars to this
position before using. Most binoculars have a graduated area at the top of the
center hinge for reference in setting interpupillary distance for subsequent
use.
How to adjust the diopter setting and center focus:
1. Adjust the diopter scale on the right eyepiece to 0.
Look through the binoculars an object about 150 feet away.
2. Shut your right eye, and focus correctly for your left eye using the center
focus wheel (3).
3. Now shut your left eye, and adjust the focus for your right eye, using the
diopter setting (2).
4. Now the binoculars are correctly adjusted. You can vary the focus using the
center focus wheel and both eyes will always remain in focus. Make note of
the diopter setting on the right side, for future use.
How to adjust the eyecups:
If you wear sun or eyeglasses, fold down the eyecups (1).
This will bring your eyes closer to the lenses thus providing an improved field
of view.
How to clean:
1. Blow away any dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or fingerprints, clean with a soft cotton cloth by rubbing in
a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch
the lens surfaces and eventually cause permanent damage to the binoculars.
3. To thoroughly clean your binoculars, you may use a photographic - lens
cleaning fluid. Always apply the fluid to the cleaning cloth, never directly onto
the lens.
Product Registration
1010 South 48th Street
Springdale, AR 72762
Register your product.
Learn about the full range of service your warranty provides.
Registering online is quick and easy!
https://explorescientificusa.com/product-registration
Serial Number:
Model Number:
Name
Address
Address 2
City
State/Zip Code
Phone
Email
Date Purchased
Store Name
For products that do not include a serial
Would you like to sign up for Would you like to learn more about our
number, use the product item number
our newsletter? Explore Care Alliance Program?
followed by the date of purchase
expressed in a six-digit format.
YES NO YES NO
For example, a purchase date of
January 1, 2019, would be entered as
010119.
Please mail to:
Explore Scientific
