Summary of Contents for HOIN HOP-HL80

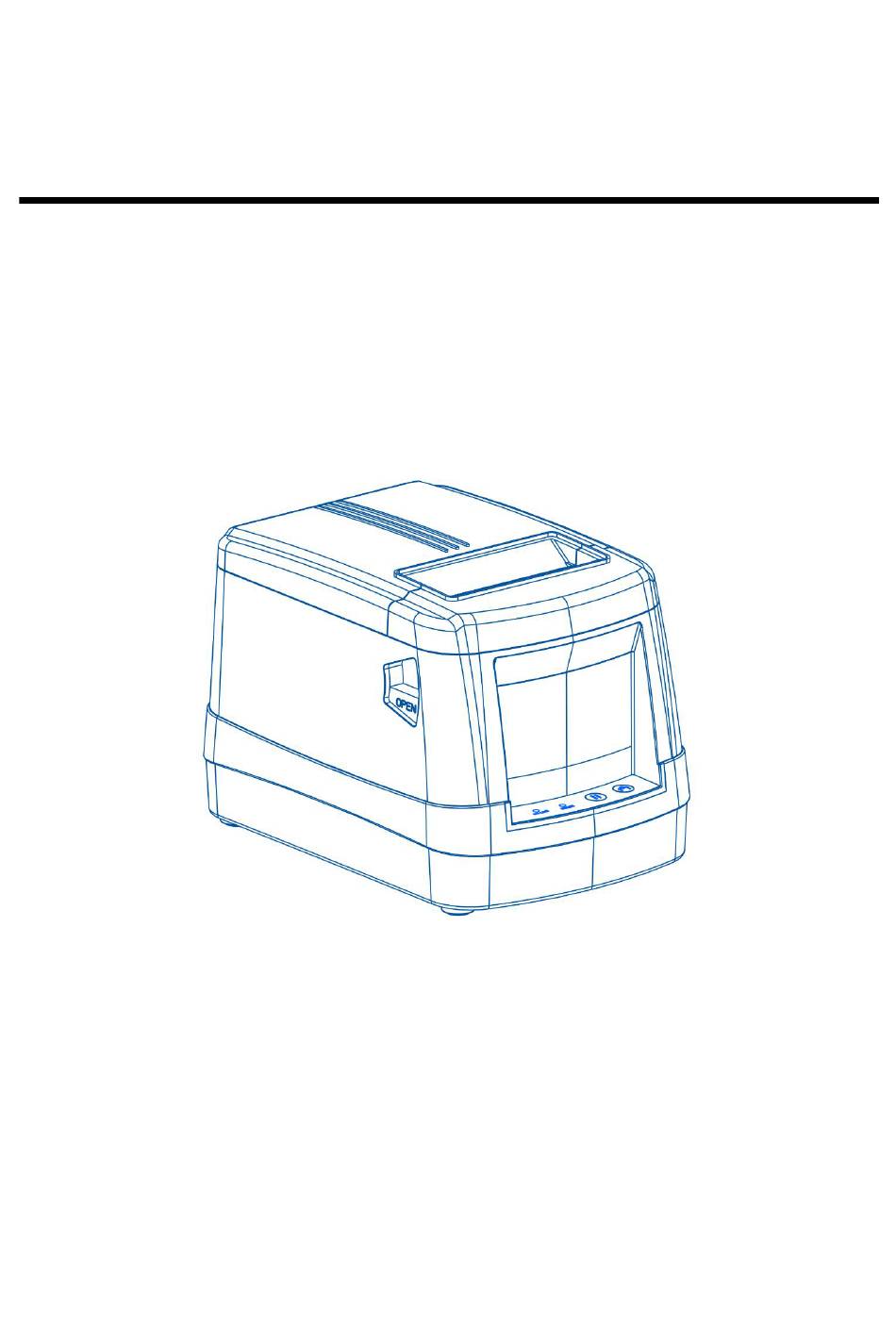

- Page 1 Fast Installation Guide HOP-HL80 Thermal Barcode Printer...
- Page 2 Appearance and components Picture 1 Picture 2...
- Page 3 Picture 3 Picture 4...
- Page 4 Main features ●Maximum printing speed 5 inch/sec; ●Support TSPL, ZPL, EPL, DPL multiple command sets; ●Support different sizes of thermal label paper; ●At the same time meet the medium at different range 20mm -82mm, easy to operate; ●Automatic paper detection and positioning function; ●Temperature self-adaption control;...
- Page 5 Techinical datas Resolution 203 DPI Print Method Thermal Print Print Speed(Max) 127 mm (5") / s， Print Width(Max) 80mm(3”) Print Length(Max) 1770 mm (70”) Printer Size 225 mm (D) x151 mm (W) x151 mm (H) Printer Weight 1.08kg Label Paper Roll Diameter 25-120mm Paper Direction Paper Up Processor...
- Page 6 Rotation on font,Bar code 0°, 90°, 180°, 270° Command TSPL-EZ,EPL,ZPL,DPL emulation Printer connection Connect the power cable ■ Make sure the printer power switch is off; ■ Connect well the power adapter and the power cable,Then let one of its side match the printer port, and other side connect with the socket, and then turn on the power switch;...
- Page 7 Indicator Light： There are two lights on the printer [a blue online light and a red error light]. No. Indicator Light Status Instructions Online light on and error light off Printer power Switch on and it is Normal Status. Online light on and error light flash Printer Pause Online...
-
Page 8: Troubleshooting
printer will feed the paper to the front of the next label Pause When the printer is printing, press the pause button, the printer work will stop Self test page ①Turn off the printer. ②Make sure the printer has loaded paper, and close the printer cover. ③... - Page 9 is selected correctly ■ Replace new transmission line ■ Clean the print head ■ The printer density setting is incorrect Storage is full ■ FLASH/DRAM full of storage ■ Clear unnecessary files inside (FLASH/DRAM) FLASH/DRAM ■ DRAM can store up to 256 files, the maximum capacity is 1024KB, the number of file is related to the content size of a single file...
- Page 10 on black label paper ■ Rubber roller is dirty ■ please clean the rubber roller (Refer to the method recommended in Article 9 for specific operation methods and steps) Unstable printing ■ Printer in hex dump mode ■ Turn the printer off and on again, and jump out of dump mode...
