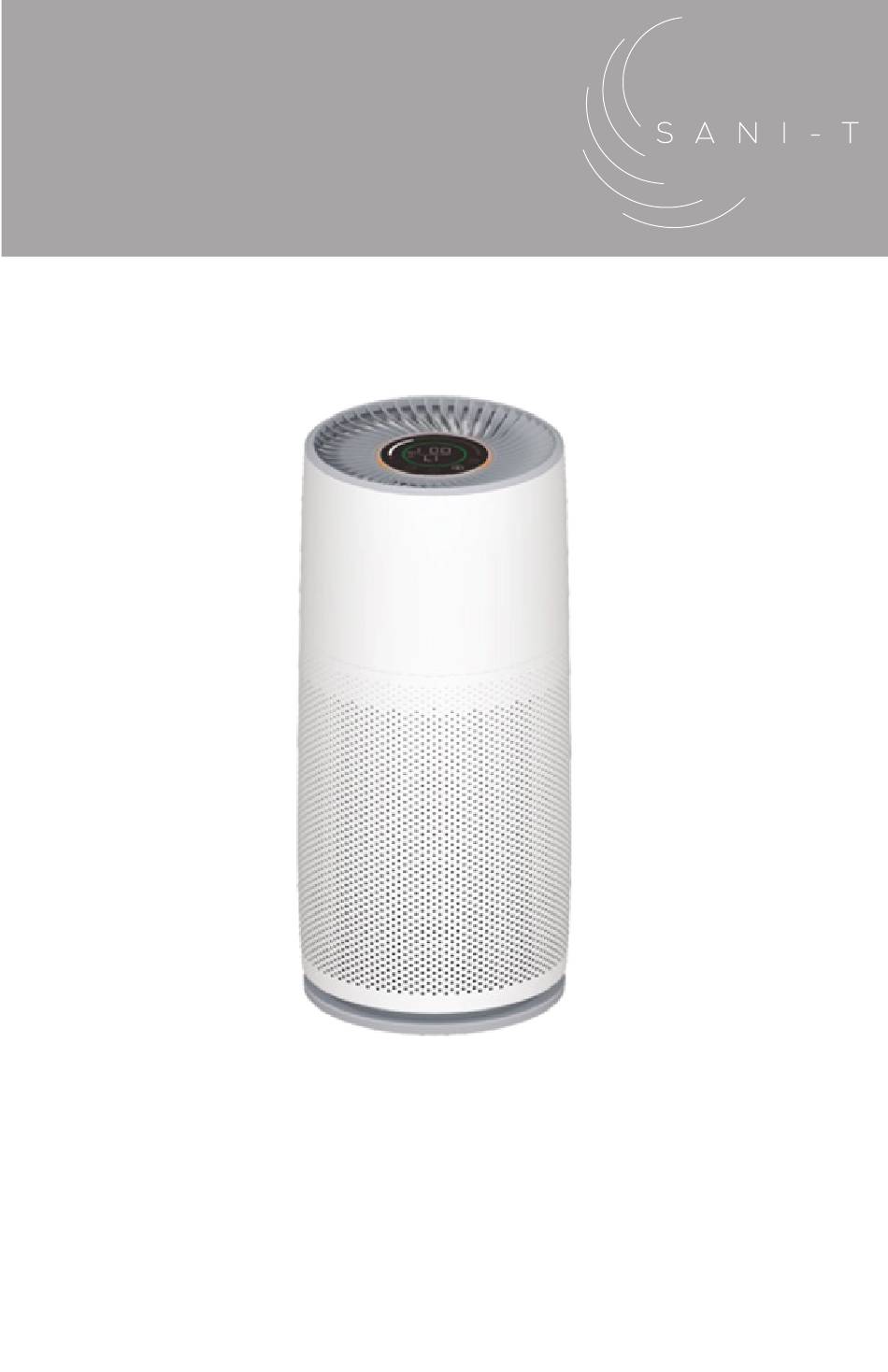

- Page 1 SAN-485 Sani-T Floor Air Purifier READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Product Specifications
PRODUCT SPECIFICATIONS Model No. SAN-485 Power Rating 50 W Voltage Rating 120 V, 60 Hz Noise (Max) 58 dB(A) CADR (Clean Air Delivery Rate) 215 CFM (Cubic Feet/Minute) Room Size 380-430 Sq. Ft. 1 x PM2.5 Laser Sensor, Sensors 1 x VOC 5 x Touch Buttons for Functions (Fan Speed, Auto Mode, On/Off, Night Light Mode,... - Page 3 WARNING !!! TO REDUCE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: • Please note that changes or modifications of this product not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. • Inspect the unit prior to use.
-
Page 4: Product Overview
PRODUCT OVERVIEW Air outlet Light Ring Control Panel Interface Sensor Cover Air Inlet Base/Filter Cover... -
Page 5: About This Product
ABOUT THIS PRODUCT The SAN-485 Floor Air Purifier uses a dual sensor system to monitor the air quality in the surrounding area using PM2.5 and VOC sensors. The PM2.5 sensor monitors for the presence of microscopic particles up to 2.5 micrometers in size which are found in the air. This includes smoke, bacteria and allergens. -
Page 6: Location & Set Up
LOCATION & SET UP Place the unit upright on a dry, flat surface indoors. Do not place too close to walls as this may affect the sensors and reduce the performance of the unit. We recommend keeping the unit a minimum of 8"... -
Page 7: First Use
FIRST USE When you plug the unit into the electrical outlet, it will beep once to alert you that it is receiving power. Press the Power button and the unit will beep again confirming it is now turned on; the Control Panel will illuminate. Once turned on, the dual sensor system will analyze the surrounding air and within approx. - Page 8 THE CONTROL PANEL FAN SPEED control bar After pushing the FAN button, slide your finger left/right over this bar to manually adjust fan speed AIR QUALITY RING PM2.5 LEVEL display display Illuminates GREEN, YELLOW or RED Displays PM2.5 level when depending on quality of the air turned on.
-
Page 9: Cleaning And Maintenance
CLEANING & MAINTENANCE IMPORTANT! Always unplug the purifier from the electrical outlet before cleaning and/or changing the filter. Cleaning the Air Intake We recommend you clean this regularly for optimal performance. If not cleaned regularly, it may reduce the performance of the air purifier. Remove the Base/Filter cover from bottom of purifier and take out the filter. -
Page 10: Checking The Filter
CHECKING THE FILTER Filter Maintenance The filter life is 3,000 hours. If used in Auto Mode, the filter will last approx. 4 months. When the remaining filter life reaches 10%, the Filter Life button will illuminate RED to alert you that it needs to be replaced. For optimal performance, it is recommended to always replace the filter when alerted before it reaches zero. -
Page 11: Replacing The Filter
REPLACING THE FILTER We recommend ordering a new filter when there is approx. 25% life left in the current filter. When the filter needs to be replaced, the Filter Life button will illuminate in RED to indicate a replacement filter is needed. Unplug the unit from the electrical outlet and gently place it upside down to access the filter cover on the bottom of the unit. - Page 12 CLEANING & MAINTENANCE TROUBLESHOOTING The unit is plugged in but not running: • Make certain that the electrical outlet is operational. • Press the power button to turn the unit on. The unit is plugged in AND turned on but not running: •...
- Page 13 REPLACING THE FILTER FREQUENTLY ASKED QUESTIONS Does this unit emit ozone? No, Sani-T air purifiers do not emit any ozone. How often do I need to change the filter? The filter life is 3,000 hours. If used in Auto Mode, the filter will last approx.
- Page 14 Purchase Date Order Number Retailer Purcased From Smart Living Home & Garden offers a 1 Year Limited Manufacturer’s Warranty from the original date of purchase on products shipped from authorized distributors and retailers. The warranty covers products which are properly used and regularly maintained as required. If the product fails due to a defect in material or workmanship, we will replace the defective parts or unit free of charge.
- Page 15 Email: customerservice@smartlivinghg.com You can also visit our website to view the FAQs, video walk throughs or to order replacement filters. Website: https://smartlivinghg.com FAQs: https://smartlivinghg.com/faq Parts: https://smartlivinghg.com/parts Smart Solar Inc DBA Smart Living Home & Garden 1203 Loyola Drive, Libertyville, IL 60048...
- Page 16 Sani-T is a Smart Living Home & Garden brand ©2021 V21.0 Smart Living Home & Garden Telephone: +1 813 343 5775 Email: customerservice@smartlivinghg.com Web: www.smartlivinghg.com...
