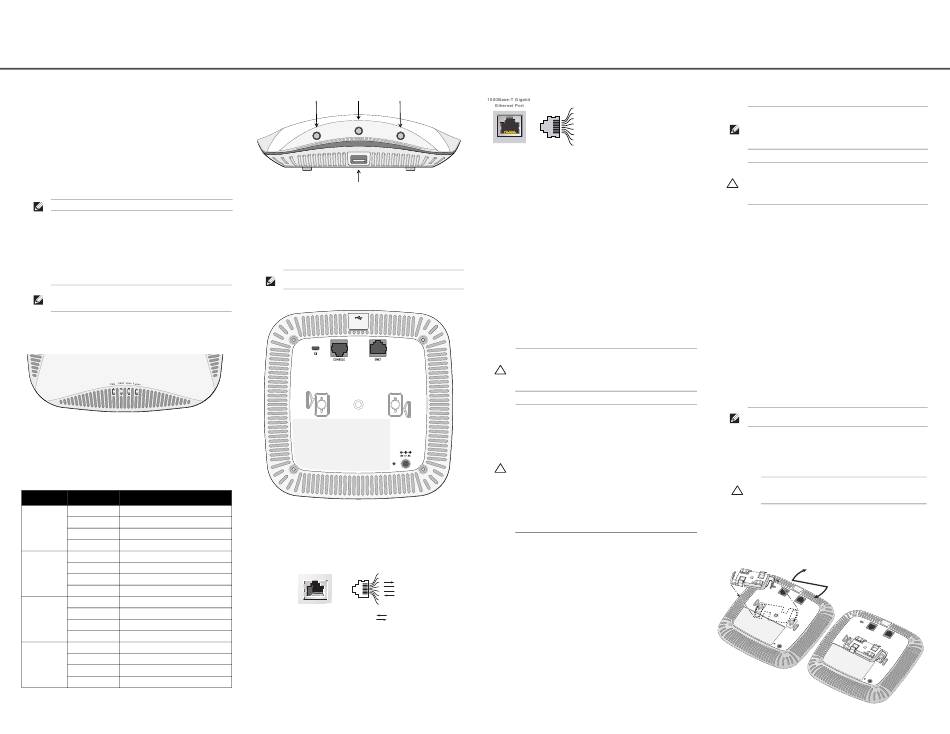

Dell Networking W-IAP210 Series Installation Manual

Dell Networking W-IAP210 Series Wireless Instant Access Point
Installation Guide
Dell Networking W-IAP210 Series (W-IAP214 and W-IAP215) wireless Instant Access
Points (IAP) supports IEEE 802.11n standard for high-performance WLAN. It uses
MIMO (Multiple-Input, Multiple-Output) technology and other high-throughput
mode techniques to deliver high-performance, 802.11n 2.4 GHz and 802.11ac 5 GHz
functionality while simultaneously supporting existing 802.11a/b/g wireless services.
The W-IAP210 Series Instant access points works only in conjunction with a virtual
controller.
The W-IAP210 Series Instant access point provides the following capabilities:
Wireless transceiver

Protocol-independent networking functionality

IEEE 802.11a/b/g/n/ac operation as a wireless access point

IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

Compatibility with IEEE 802.3at PoE+ and 802.3af PoE

Note: The W-IAP210 Series requires Dell Instant 4.1.1 or later.
Package Contents
W-IAP214 or W-IAP215 Instant Access Point

9/16" and 15/16" Ceiling Rail Adapters

Quick Start Guide

Installation Guide (this document)

Note: Inform your supplier if there are any incorrect, missing, or damaged parts. If
possible, retain the carton, including the original packing materials. Use these
materials to repack and return the unit to the supplier if needed.
W-IAP210 Series Hardware Overview
Figure 1 W-IAP210 Series LEDs
LEDs
The W-IAP210 Series is equipped with four LEDs that indicate the status of its various
components.
PWR: Indicates whether or not the IAP is powered-on

ENET: Indicates the status of the IAP's Ethernet port

5 GHz: Indicates the status of the IAP 802.11a/n radio

2.4 GHz: Indicates the status of the IAP 802.11b/g/n radio

LED Color/State Meaning
PWR Off No power to IAP
Red Initial power-up
Green - Flashing IAP booting
Green - Steady IAP ready
ENET Off Ethernet link unavailable
Yellow - Steady 10/100Mbps Ethernet link established
Green - Steady 1000Mbps Ethernet link established
Flashing Ethernet link activity
5 GHz Off 5 GHz radio disabled
Yellow - Steady 5 GHz radio enabled in non-HT WLAN mode
Green - Steady 5 GHz radio enabled in HT WLAN mode
Flashing - Green 5 GHz Air or Spectrum Monitor
2.4 GHz Off 2.4 GHz radio disabled
Yellow - Steady 2.4 GHz radio enabled in non-HT WLAN mode
Green - Steady 2.4 GHz radio enabled in HT WLAN mode
Flashing - Green 2.4 GHz Air or Spectrum Monitor
Figure 2 W-IAP210 Series Side View (W-IAP214 shown)
ANT2 ANT1 ANT0
USB Port
External Antenna Connectors
The W-IAP214 Instant access point is equipped with three external antenna
connectors. The connectors are labeled ANT0, ANT1, and ANT2, and correspond to
radio chains 0, 1, and 2.
USB Interface
The W-IAP210 Series Instant access point is equipped with a USB interface for
connectivity with cellular modems.
Note: The USB interface is disabled when the W-IAP210 Series Instant access
point is powered from 802.3af PoE.
Figure 3 W-IAP210 Series Rear View
Console Port
The serial console port allows you to connect the IAP to a serial terminal or a laptop for
direct local management. This port comprises of an RJ-45 female connector with the
pinouts described in Figure 4. Connect it directly to a terminal or terminal server using
an Ethernet cable.
Figure 4 Serial Port Pin-Out
Serial RJ-45 Female
Console Port Pin-Out
1
2
3 TxD
4 GND
5 GND
6 RxD
7
8
Direction
Input
Output
Ethernet Port
The W-IAP210 Series Instant access point is equipped with one 10/100/1000Base-T
(RJ-45) auto-sensing, MDI/MDX wired-network connectivity port. This port supports
IEEE 802.3af and 802.3at Power over Ethernet (PoE) compliance, accepting 48 VDC
(nominal) as a standard defined Powered Device (PD) from a Power Sourcing
Equipment (PSE) such as a PoE midspan injector, or network infrastructure that
supports PoE.
The port comprises of an RJ-45 female connector with the pin-outs shown in
Figure 5 Gigabit Ethernet Port Pin-Out
RJ-45 Female Signal Name
Pin-Out
1 BI_DA+
2 BI_DA-
BI_DB+
3
BI_DC+
4
5 BI_DC-
BI_DB-
6
BI_DD+
7
8 BI_DD-
DC Power Socket
If PoE is not available, an optional Dell AP/IAP AC-DC adapter kit (sold separately)
can be used to power the IAP.
Additionally, a locally-sourced AC-to-DC adapter (or any DC source) can be used to
power this device, as long as it complies with all applicable local regulatory
requirements and the DC interface meets the following specifications:
12 VDC (+/- 5%)/18W

Center-positive 1.7/4.0 mm circular plug, 9.5 mm length

Reset Button
The reset button can be used to return the IAP to factory default settings. To reset the
IAP:
1. Power off the IAP.
2. Press and hold the reset button using a small, narrow object, such as a paperclip.
3. Power-on the IAP without releasing the reset button. The power LED will flash
within 5 seconds.
4. Release the reset button.
The power LED will flash again within 15 seconds indicating that the reset is
completed. The IAP will now continue to boot with the factory default settings.
Before You Begin
Caution: FCC Statement: Improper termination of access points installed in the
United States (non-US model Regulatory Domain model/s) will be in violation of
the FCC grant of equipment authorization. Any such willful or intentional violation
may result in a requirement by the FCC for immediate termination of operation and
may be subject to forfeiture (47 CFR 1.80).
Caution: EU Statement:
Lower power radio LAN product operating in 2.4 GHz and 5 GHz bands. Please
refer to the Dell Networking W-Series Instant User Guide
restrictions.
Produit réseau local radio basse puissance operant dans la bande fréquence 2.4
Dell Networking W-Series Instant User
GHz et 5 GHz. Merci de vous referrer au
Guide pour les details des restrictions.
Low Power FunkLAN Produkt, das im 2.4 GHz und im 5 GHz Band arbeitet. Weitere
Informationen bezlüglich Einschränkungen finden Sie im
Series Instant User Guide.
Apparati Radio LAN a bassa Potenza, operanti a 2.4 GHz e 5 GHz. Fare riferimento
alla Dell Networking W-Series Instant User Guide
detagliate sulle restrizioni.
Pre-Installation Checklist
Before installing the W-IAP210 Series Instant access point, ensure that you have the
following:
CAT5e or better UTP cable of required length

One of the following power sources:

IEEE 802.3at or 802.3af-compliant Power over Ethernet (PoE) source. The POE

source can be any power source equipment (PSE) virtual controller or midspan
PSE device
Dell AP AC-DC adapter kit (sold separately)

Summary of the Setup Process
Successful setup of a W-IAP210 Series Instant access point consists of four tasks, which
must be performed in this order:
1. Verify pre-installation connectivity.
2. Identify the specific installation location for each IAP.
3. Install each IAP.
Figure 5.
4. Configure the virtual controller. Refer to the Dell Networking W-Series Instant
Quick Start Guide
Function
Bi-directional pair +A
Note: Dell, in compliance with governmental requirements, has designed the W-
Bi-directional pair -A
IAP210 Series Instant access points so that only authorized network administrators
Bi-directional pair +B
Bi-directional pair +C
can change the settings. For more information about IAP configuration, refer to the
Bi-directional pair -C
Dell Networking W-Series Instant Quick Start Guide
Bi-directional pair -B
Bi-directional pair +D Instant User Guide
.
Bi-directional pair -D
Caution: Access points are radio transmission devices and as such are subject
to governmental regulation. Network administrators responsible for the
configuration and operation of access points must comply with local broadcast
regulations. Specifically, access points must use channel assignments
appropriate to the location in which the access point will be used.
Identifying Specific Installation Locations
You can mount the W-IAP210 Series Instant access point on a wall or on the ceiling.
Use the AP/IAP placement map generated by Dell Airwave VisualRF Plan software
application to determine the proper installation location(s). Each location should be as
close as possible to the center of the intended coverage area and should be free from
obstructions or obvious sources of interference. These RF absorbers/reflectors/
interference sources will impact RF propagation and should have been accounted
during the planning phase and adjusted in the VisualRF plan.
Identifying Known RF Absorbers/Reflectors/Interference Sources
Identifying known RF absorbers, reflectors, and interference sources while in the field
during the installation phase is critical. Make sure that these sources are taken into
consideration when you attach an AP to its fixed location. Examples of sources that
degrade RF performance include:
Cement and brick

Objects that contain water

Metal

Microwave ovens

Wireless phones and headsets

Installing the IAP
Note: Service to all Dell W-Series products should be performed by trained service
personnel only.
for details on
Using the Ceiling Rail Adapter
The W-IAP210 Series Instant access point ships with two ceiling rail adapters for 9/16"
and 15/16" ceiling rails. Additional wall mount adapters and ceiling rail adapters for
other rail styles are available as accessory kits.
Caution: Make sure the IAP fits securely on the ceiling tile rail when
Dell Networking W-
hanging the device from the ceiling, because poor installation could cause
it to fall on people or equipment.
per avere informazioni 1. Pull the necessary cables through a prepared hole in the ceiling tile where the IAP
will be placed.
2. Place the adapter against the back of the IAP at an angle of approximately 30
degrees to the tabs (see Figure 6).
3. Twist the adapter clockwise until it snaps into place in the tabs (see
Figure 6 Attaching the Ceiling Rail Adapter
Dell Networking W-Series
and
Figure 6).
