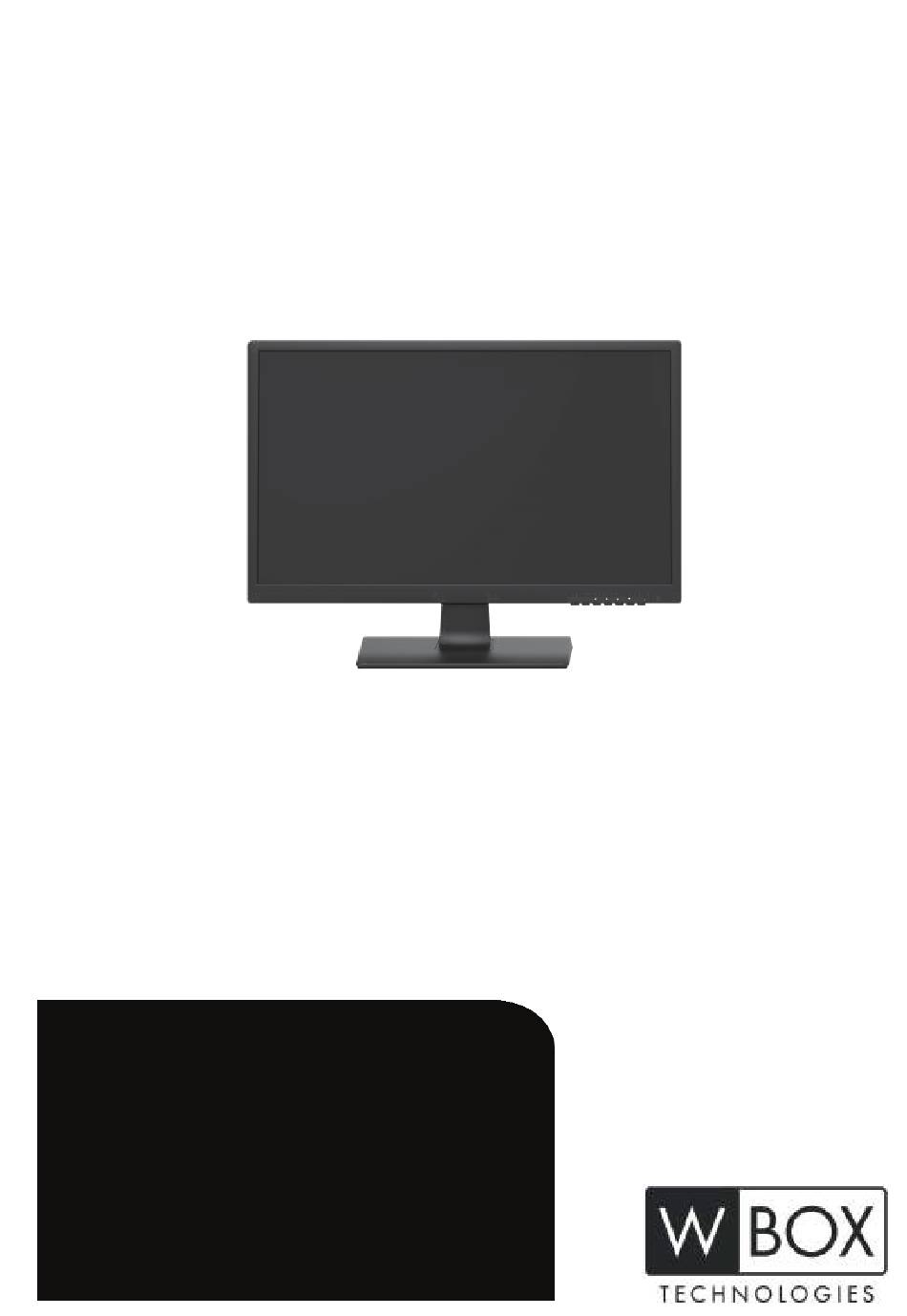

- Page 1 Source Menu Power 16:9/4:3 FULL HD PRO-GRADE LED COLOR MONITOR Tech Support #833-574-9124(Option2) info@wboxtech.com 0E-27LED2...
-
Page 2: Table Of Contents
Contents Contents ............................1 Safety ............................1 Cautions............................3 FCC RF Interference Statement ..................4 Connections ..........................5 Controls & Menu Operation ....................6 Mounting Guide ........................ 12 Accessories ..........................13 Power Indicator / Modes of Operation ................13 Dimensions ..........................14 Specifications ........................ - Page 3 D. If batteries are used, please dispose of all batteries as per local regulations. E. Use the monitor in indoor environments as per the temperature and humidity specs. 8. The monitor should be operated from a power source indicated on the rear of the monitor.
-
Page 4: Cautions
Cautions CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING. 1. Never open the monitor case Only specially qualified personnel should open the case. No user serviceable parts inside. 2. -
Page 5: Fcc Rf Interference Statement
FCC RF Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Connections
Connections Back View of Monitor Connector panel is located on the underside of the case rear projection, just above the stand. Detailed View of the Connector Panel Only use a properly, grounded, three wire cord appropriate for the local power system. Remote control The remote control offers various shortcuts and added convenience... -
Page 7: Controls & Menu Operation
Controls & Menu Operation Control Keys / Buttons 16:9/4:3 Buttons are located on the right side of the Bezel on 0E- 0E-27LED2 models. Source Auto detection function when there is/are source(s) connect to the monitor, monitor will auto detect the source(s) and auto select the desired source. - Page 8 D. “RIGHT” button ●Press RIGHT button, volume increase E. “DOWN” button ●Press the button to scroll the cursor to desired function. ●Press the DOWN to decrease the value of selected function in sub OSD menu. F. “UP” button ●Press the button to scroll the cursor to desired function.
- Page 9 Picture Menu The “PICTURE” menu is for adjusting the image appearance and parameters. The Picture menu is the same for BNC/CVBS and HDMI; the Picture menu options differ for VGA. Picture Menu (BNC/CVBS & HDMI) Press the MENU button to bring the menu on screen, and then the right/left buttons to move up along the main menu selections to choose the <...
- Page 10 Adjustments Noise Reduction: Reduce noise of the display image (LOW/MID/HIGH/OFF) < < Noise Reduction < < Normal Color Temperature Color Temp: Adjust color reproduction: choose between Normal/Warm/User/Cool. Green Blue To set custom color temperature (R.G.B values), select “USER” to set color temperature. Select Move Exit...
- Page 11 OSD Menu Press the MENU button to bring the menu on screen, and then left/right buttons to move along the menu selections to highlight the OSD menu. Press up/down to move the left side main menu < < OSD Language English <...
- Page 12 Computer Menu (VGA model Only) Press the MENU button to bring the menu on screen, and then left/right buttons to move along the menu selections to highlight the GEOMETRY menu. Press up/down to move < Auto Adjust between the left side main menu selector into H-Position the window of menu choices and parameters.
-
Page 13: Mounting Guide
Mountin g Guide Wall or Other Mounting with VESA Standard CAUTION The wall mount must bear a minimum of five times the monitor’s net weight. To mount your MONITOR to the wall or another surface, you need to purchase a VESA wall mount. -
Page 14: Accessories
Screws Type: BB 4.0×7mm Qty: 5 Screws Type: BM 4.0×8mm Qty: 3 PM 4.0x8mm Qty: 4 FULL HD PRO-GRADE LED COLOR MONITOR Tech Support #833-574-9124(Option2) info@wboxtech.com 0E-27LED2 Batteries Base of Stand Stand Support User Manuals Qty: 2 Qty: 2 Qty: 1... -
Page 15: Dimensions
Dimensions Model 0E-27LED2 Letter Dimension inch Width of monitor body 624.1 24.57 Height of monitor body 14.7 373.4 Depth of monitor body 52.1 2.05 Height of monitor on base 462.5 18.2 Width of base 277.9 10.94 Depth of base Width of viewable area 598.5... -
Page 16: Specifications
Specifications Model 0E-27LED2 Screen Diagonal Dimension (inches) 27” Viewable Area W x H (inches) 23.54*13.24 Led Type Pixel Pitch (mm) 0.3114x0.3114 Screen Maximum Resolution 1920x1080 Display Resolutions 720x400;640x480;800x600;1024x768;1280x1024;1366x768;1920x1080 Supported Input Resolutions 720x400;640x480;800x600;1024x768;1280x1024;1366x768;1920x1080 Refresh Rate (Hz) Color Depth (M) 16.7 Brightness (cd/㎡）... -
Page 17: Limited Warranty
Section 1(b), ADI warrants its W Box Technologies products to be free from defects in materials and workmanship under normal use and service, normal wear and tear excepted. Except as required by law, this Limited Warranty is only made to Buyer and may not be transferred to any third party. - Page 18 B. Specific Warranties for Product Categories Product Categories Warranty CCTV Power Supplies 24 months Monitors 30 months Video Baluns 30 months Analog Cameras 36 months DVR’s, NVR’s (excluding HDD) 60 months IP Cameras 60 months Racks 60 months TV Mounts 60 months Analog Cables Limited Lifetime...
- Page 19 Any product description (whether in writing or made orally by ADI or ADI’s agents), specifications, samples, models, bulletin, drawings, diagrams, engineering sheets, or similar materials used in connection with the Buyer's order are for the sole purpose of identifying ADI's products and shall not be construed as an express warranty or condition. Any suggestions by ADI or ADI's agents regarding use, applications or suitability of the products shall not be construed as an express warranty or condition unless confirmed to be such in writing by ADI.
- Page 20 ADI reserves the right to issue a credit only in lieu of replacement. If any W Box Technologies product is found to be in good working order or such product's inability to function properly is a result of user damage or abuse, the product will be returned to Buyer in the same condition as received and Buyer shall be responsible for any return freight changes.
- Page 21 Tech Support E505978 0E-27LED2 #833-574-9124(Option2) info@wboxtech.com LED MONITOR 1 1 9 1 4 0 2 9 7 8 wboxtech.com...
