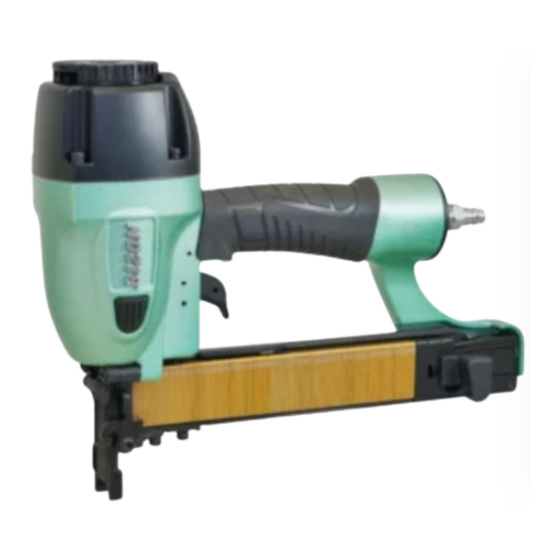

16ga. medium crown stapler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

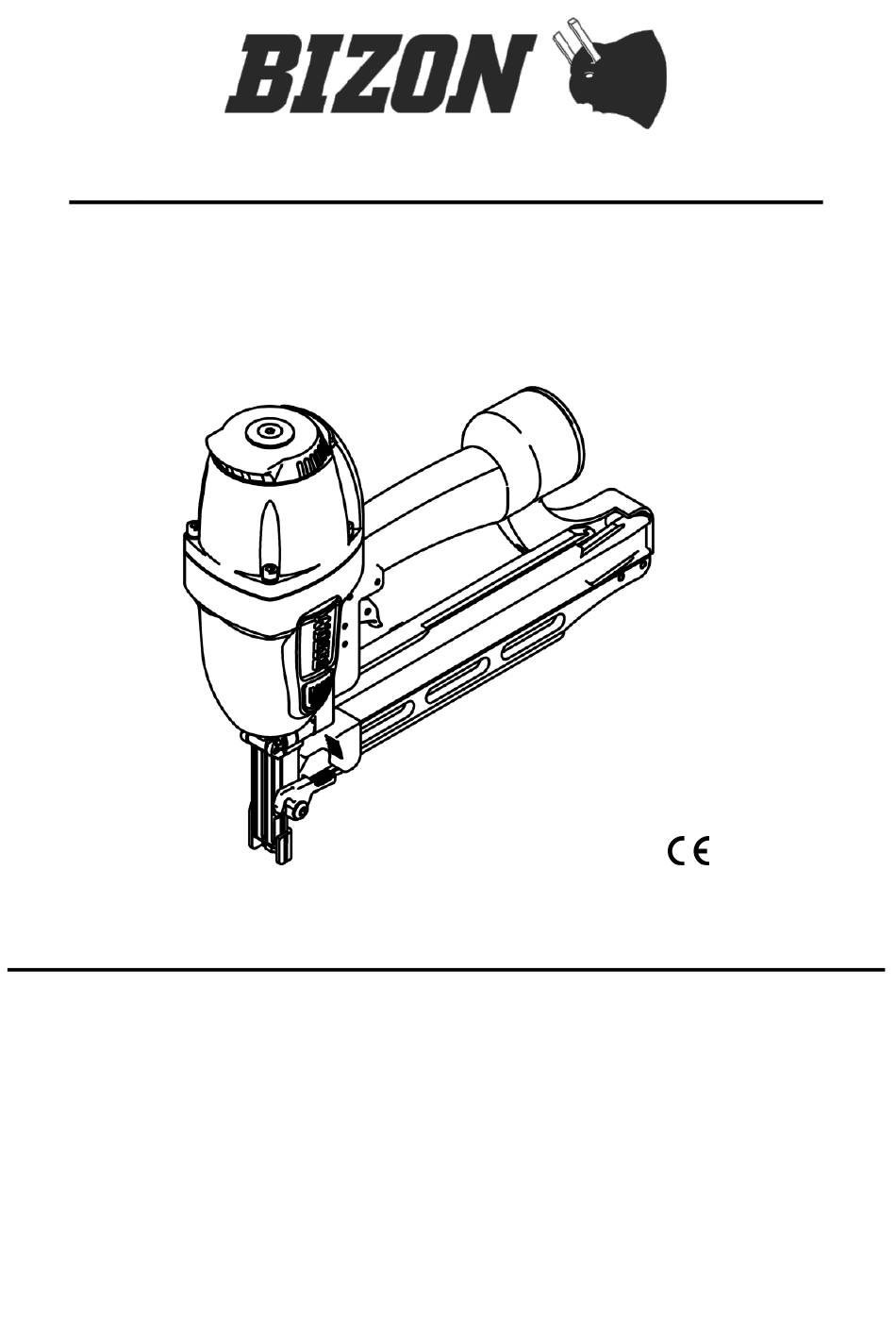

OPERATION and MAINTENANCE MANUAL
□ MODEL: BIZON 14 / 40-B74
□ MODEL: BIZON 14 / 50-B81
16GA. MEDIUM CROWN STAPLER
△
WARNING:
,!
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY MANUAL TO UNDERSTAND AND FOLLOW
THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE
REFERENCE. IF YOU HAVE QUESTIONS, CONTACT YOUR DISTRIBUTOR.
2022/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14/40-B74 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bizon 14/40-B74

  • Page 1 OPERATION and MAINTENANCE MANUAL □ MODEL: BIZON 14 / 40-B74 □ MODEL: BIZON 14 / 50-B81 16GA. MEDIUM CROWN STAPLER △ WARNING: BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
  • Page 2 285 mm 2,19 kg 162 staples type 14 FASTENER SPECIFICATIONS STAPLE MODEL CROWN SIZE WIDTH×THICKNESS LENGTH Stapler model BeA / BIZON type 14 10.5 mm 1.45×1.3 mm 14-40 mm 14/40-B74 BeA / BIZON type 16 10.8 mm 1.57×1.3 mm 21-40 mm...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY FIRST These safety instructions provide information necessary for safe operation of pneumatic tools. DO NOT attempt to operate the tool until you read and understand all safety precautions and manual instructions. ◆ WEAR EYE AND HEARING PROTECTION Always wear hearing and eye protection devices, including side shields when operating or working in the vicinity of a tool.
  • Page 4 This tool is equipped with a safety mechanism, called a work contacting element, to help prevent accidental firing. Never tamper with, disable or remove the work contacting element. Do not use the tool unless the work contacting element is working properly. The tool could fire unexpectedly. ◆...

  • Page 5: Air Systems

    malfunctioning tool. ◆ USE ONLY RECOMMENDED PARTS AND FASTENERS. Use only parts and fasteners specifically designed and recommended for use in the tool and for the work to be done. Using unauthorized parts and fasteners or modifying the tool in any way creates dangerous situations. Replace all missing parts-refer to tool schematic for correct placement and part number.

  • Page 6: Tool Installation

     A moisture trap and a filter/regulator/lubricator are installed at the compressor.  Air hoses and fittings are large enough so that air flow not restricted .Minimum hose size is 3/8 inch ID, with 1/2 inch ID hose used for any application over 25 feet.

  • Page 7: Tool Operation

    preferably within ten feet. Refer to the Air Systems section of this manual for air hose requirements and lengths. In general, no other special installation is required. • If the operator is working at a bench or table, it is usually best to run the air line underneath the bench.
  • Page 8 TOOL OPERATION ◆ PRECISION PLACEMENT DRIVING:  Grasp the tool handle firmly and hold the bottom of the work contacting element firmly against the workpiece until it is completely depressed.  Squeeze the trigger to drive the fastener.  Lift the tool from the workpiece. ...

  • Page 9: Tool Loading

     Depress the work contacting element and hold it against the work surface before pulling the trigger.  After each fastener is driven, completely release the trigger and lift the tool from the work surface. TOOL LOADING STAPLER (1) Grasp the stapler handle firmly.

  • Page 10: Maintenance

    DRIVING FASTERS / CLEANING JAMMED STAPLE CONTACT FIRE OPERATION Hold the trigger. Depress the contact arm against the work surface. CLEANING JAMMED STAPLES Take out the staples from the inside of the magazine Press the stopper and open door. Remove staples that are jammed inside the nose by using a punch or slotted screw driver.

  • Page 11: Cold Weather Care

    ◆ COLD WEATHER CARE When temperatures are below freezing, tools should be kept warm by any convenient, safe method. If this is not possible, the following procedure should be used to warm up the tool parts.  Reduce the regulated air pressure to 30 psi. ...

  • Page 12: Tool Lubrication

    will perform the job properly.  Ensure that all hardware is tight.  Ensure that the work contacting element is installed correctly in relation to the trigger, and that both parts move freely.  Ensure that the magazine is properly attached. ...
  • Page 13 MAINTENANCE CAUTION Disconnect the tool when performing repairs or clearing jams. MAINTENANCE TABLE ACTION Drain air line filter (daily) Prevent accumulation of Open manual petcock moisture and dirt. (most air supply systems have such a valve) Keep lubricator filled. Keep tool lubricated. Fill with recommended air tool lubricant Clean filter element-then...

  • Page 14: Operator Troubleshooting

    OPERATOR TROUBLESHOOTING CAUTION Disconnect the tool when performing repairs or clearing jams. PROBLEM CORRECTIVE ACTION Fasteners will not drive completely into wood Adjust work contacting element (retract length). increase air pressure(do not exceed 120 psi) Fasteners penetrate properly during normal Increase air flow to tool-use larger air lines (3/8 operation, but won’t drive fully at faster speeds.
