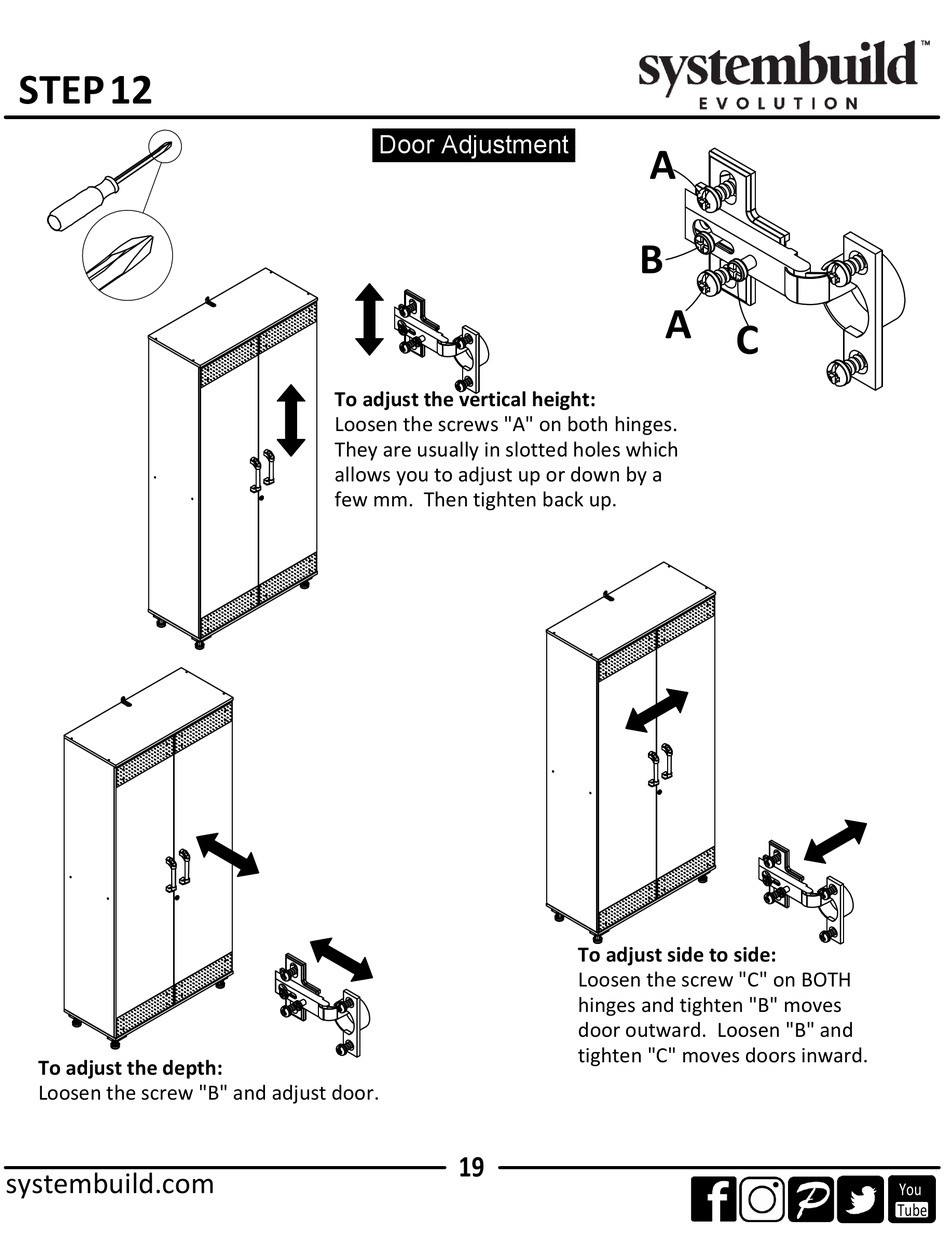

STEP 12
To adjust the depth:
Loosen the screw "B" and adjust door.
systembuild.com
Door Adjustment
To adjust the vertical height:
Loosen the screws "A" on both hinges.
They are usually in slotted holes which
allows you to adjust up or down by a
few mm. Then tighten back up.
19
A
B
A C
To adjust side to side:
Loosen the screw "C" on BOTH
hinges and tighten "B" moves
door outward. Loosen "B" and
tighten "C" moves doors inward.
