Summary of Contents for Airgineers VR02

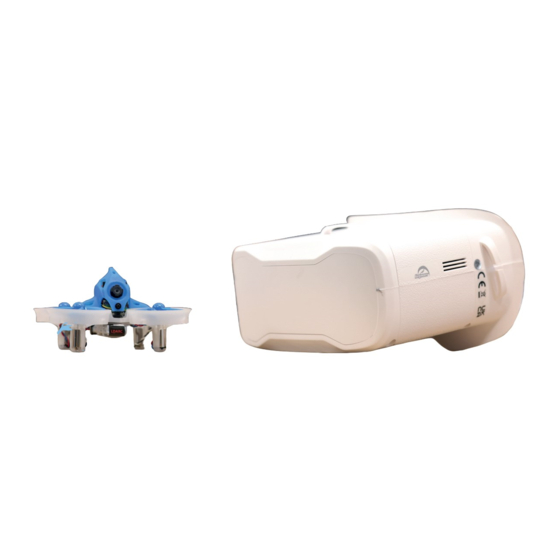

- Page 1 VR02 FPV Goggle Instructions...
- Page 2 Contents What is in the box Goggle Specifi cations Operating Instructions Band and Channel Selection Frequency Sweep Function Fast Frequency Search Function 8 1 BETAFPV VR02 FPV Goggles 2 Adjustable Headband...
- Page 3 • Dimensions: 126 x 143 x 86.3mm BODY • Weight: 300g, with 2hr 2000mAh battery With the built-in antennas and structure patented design, the VR02 • Three-Way adjustable headband Goggles are compact and lightweight, weighing less than 300g they are comfortable to wear and carry.
- Page 4 Goggle Specifications 4.3 inches LCD Concave Mirror Beam Splitter With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles are compact with a small, lightweight body. Airginners VR02 FPV goggles manual version 1.0 2022...
- Page 5 “S” button for 1 second to start the frequency auto-search. Short press the “S” button again, to return to the camera view screen display. Short press for CH 1~8 cycles. Search Band+ Airginners VR02 FPV goggles manual version 1.0 2022...
- Page 6 5584 5621 – The VR02 FPV Goggles have a frequency sweep function and a fast frequency auto-search function, these help pilots find a stronger frequency Band, to get a better flight experience. – The frequency sweep function can display the occupancy status of each channel in the current space, so that pilots can fly with a better frequency Band and enhance the flight experience.
- Page 7 “Band+” and “Ch+” buttons. Short press the “S” button again, to return to the camera view screen display. Green 0<RSSI<20, not occupied 20<RSSI<70, there is a drone occupying the Band Yellow far away, or there is interference 70<RSSI<99, occupied White Current Band (highest RSSI in the sweep result) Airginners VR02 FPV goggles manual version 1.0 2022...
- Page 8 After powering on, press and hold the “S” button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding frequency Band of the drone. Airginners VR02 FPV goggles manual version 1.0 2022...
