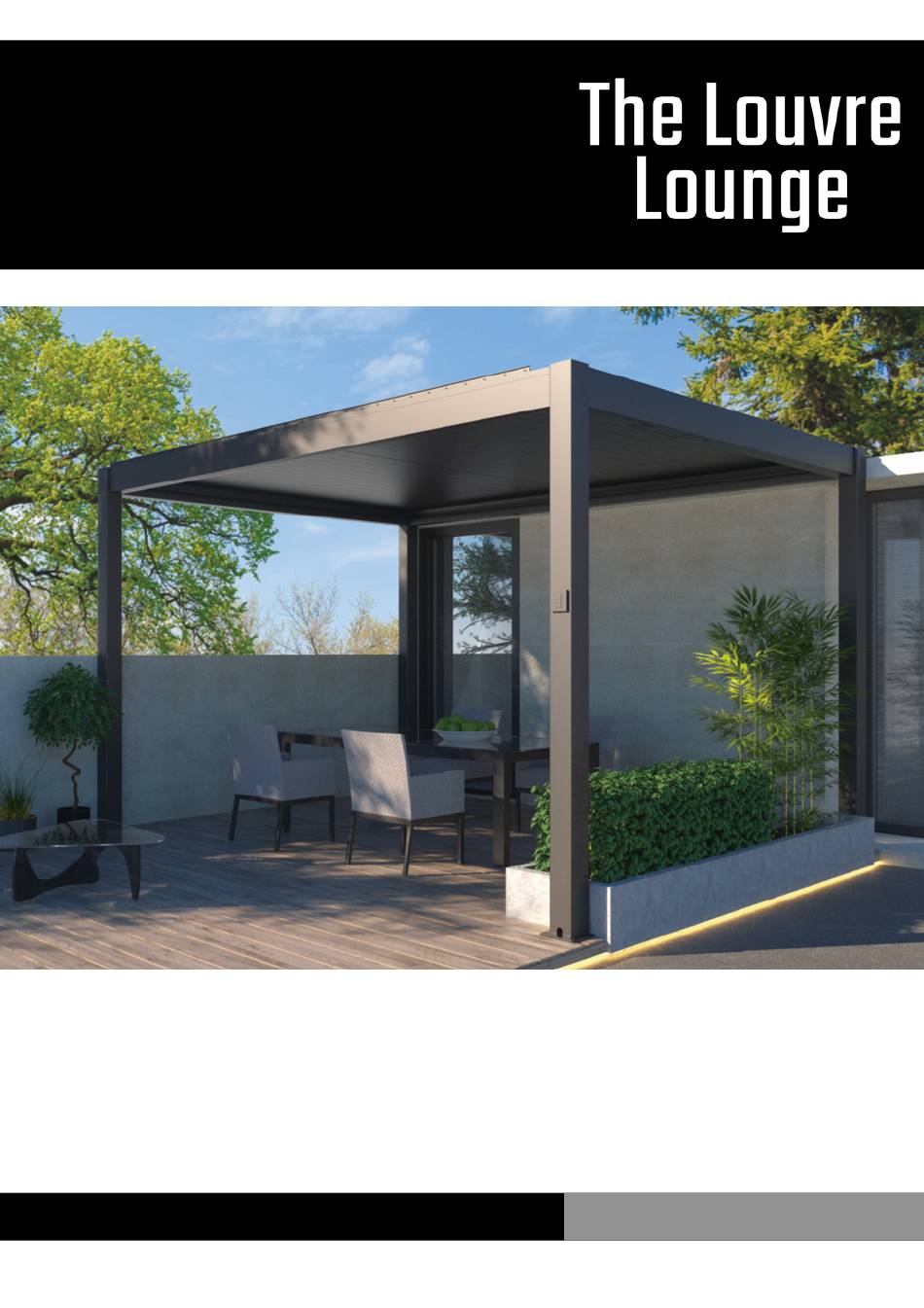

- Page 1 3400 Instruction Manual www.thelouvrelounge.co.nz...
-
Page 2: Table Of Contents
CONTENTS Required Tools & Man Force Parts List Product Description Safety Disclaimers Installation 9-17 Foundation Installation 18-19 Remote Setup Disassembly Storage & Disposal ATTENTION: Read this instruction manual thoroughly before starting installation. First of all, thank you so much for choosing The Louvre Lounge to spice up your outdoor space. -
Page 3: Required Tools & Man Force
Tape Measure Pencil Spirit Level Rubber Mallet Electric Drill M10/13 Open Wrench (SUPPLIED) 5mm Hexagon Wrench (SUPPLIED) Man Force We recommend installing The Louvre Lounge with 2-3 people although having a third person would make the installation quicker. www.louvrelounge.co.nz | 3... -
Page 4: Parts List
PARTS LIST Before commencing the installation, please confirm all parts are present. Email us at help@louvrelounge.co.nz if you have any issues. www.louvrelounge.co.nz | 4... -
Page 5: Product Description
Hardware: Aluminium Structure: PRODUCT DESCRIPTION Make the most of your outdoor living area with the 3400 series Louvre Lounge. The motorised louvres and LED lights transform your outdoor space into the ultimate entertaining area for you to enjoy for years to come. -
Page 6: Safety Disclaimers
SAFETY DISCLAIMER'S WARNING: For the safety of yourself and others, it is essential to follow all instructions and obey warnings. Definitions: This warning triangle calls attention to hazards that that can lead to death, severe injuries or which are important for the functioning of the Pergola. This symbol identifies important notes. - Page 7 Do not install the pergola when you find damaged parts or parts that are missing. Contact us. Keep children and pets out of the working area during assembly and adjustments. This product and its fixing parts are only suitable for installation on a plain cement pad.
-
Page 8: Installation
INSTALLATION Step 1: Attach base plate③x4 to the bottom of posts ( x1, x1),use bolts①x8 to attach with hex key or electric drill. Both posts need to be installed diagonally. Refer to the diagram below. www.louvrelounge.co.nz | 8... - Page 9 INSTALLATION Step 2: a. Remove bolts ⑥x6 from each post and set them aside. A total of 24 bolts should be set aside. b. Attach beams x1 and x1 to the posts, and use bolts ⑥ which were previously removed to fasten tightly.
- Page 10 INSTALLATION Step 3: Attach the last beam x1 to the posts using the remaining ⑥x6 bolts from step 2 to fasten tightly. Refer to the diagram for correct installation. www.louvrelounge.co.nz | 10...
- Page 11 INSTALLATION Step 4: Attach the upright covers ④x4 to the top of each post. Use bolts ⑥x8 to fasten. www.louvrelounge.co.nz | 11...
- Page 12 INSTALLATION Step 5: Attach all four gutters ( x2 and x2 )by slotting them on the inside of all four beams - www.louvrelounge.co.nz | 12...
- Page 13 INSTALLATION Step 6: Locate the holes in the centre of the beams( and ). Place the strength louvre into the 16th slot, lining up with the holes. Using the M10 nut ⑤X2, secure the louvre in place on both sides. Place the driving louvre in line with the 6th slot on the beams...
- Page 14 INSTALLATION Step 7: Attach the control rods x2 to each side of the pergola by placing the plastic spacer ⑦ between the control rod and the louvre's, threading the bolt ⑥ through from the control rod side and tightening with a nut ⑧.
- Page 15 INSTALLATION Step 8: Place a rubber gutter connector in each of the four corners to seal the gutters. Next, place the 50 to 40 pipe fitting ② inside the gutter connecter closest to the motor. Ensure cables run through the 50 to 40 pipe fitting down the post to stop water flowing through the beam and onto the cables.
- Page 16 INSTALLATION Step 9: a. Unscrew the 4 bolts on the beam where the motor will be positioned and set aside. Fasten the motor ⑨x1 to the beam with the 4 bolts previously set aside. b. Next, fasten the motor to the driving louvre from step 6.
- Page 17 INSTALLATION Step 10: a. Connect the motor to the power cable by connecting the male and female plugs (DC24V to DC24V). b. Connect the LED lighting to the motor power cable by connecting the male and female plugs DC24V to DC24V) between each gutter.
-
Page 18: Foundation Installation
FOUNDATION INSTALLATION The last step in the installation process involves securing your Louvre Lounge to the foundation. We provide instructions to install into a concrete pad although you must seek professional advice to ensure the pergola is installed correctly to all local regulations. Once the pergola is in place and square, mark 4 holes for each post then move aside and drill all 16 holes using a 12mm drill bit. - Page 19 FOUNDATION INSTALLATION Refer to the following diagram to ensure the pergola is perfectly square before installing the foundation permanently. 2503 (Overall height) 2330 (Including base plate thickness) www.louvrelounge.co.nz | 19...
-
Page 20: Remote Setup
REMOTE SETUP Once all installation steps are complete, plug the pergola into the power outlet to start the remote pairing process. Remote Pairing: Press and hold the lamp button on the manual control attached to the pergola post for 5 seconds. After this has been completed, press the up button on the remote. -
Page 21: Storage & Disposal
STORAGE If your Louvre Lounge won't be used for a longer period of time, we recommend removing the pergola from the brackets and storing it away. Make sure that the frame is completely dry before storing. Store the Pergola in a dry and safe place that is out of reach from children.
