Summary of Contents for SMART4CARS T61W

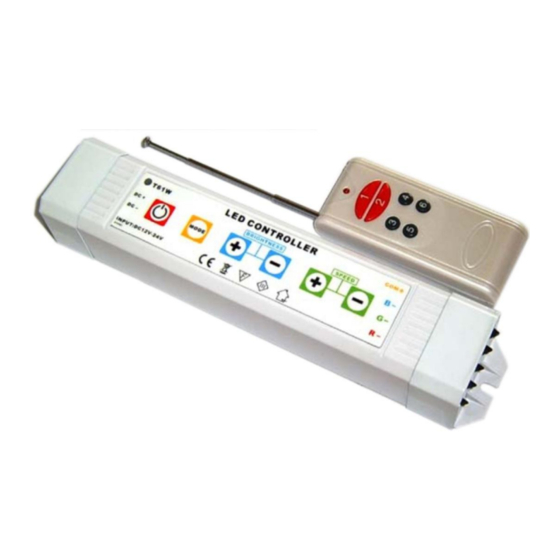

- Page 1 T61W（RGB）R06 LED Controller User Manual 1 / 6 T61W（RGB）R06 LED Controller User Manual Before using this controller, please read this notebook carefully.
- Page 2 T61W（RGB）R06 LED Controller User Manual 2 / 6 Instructions Thank you for choosing our T61B（RGB）R06 controller. Before installing and using it, please read this notebook carefully to ensure fully understand the function and characters of the production to avoid the unnecessary damage because of the wrong operation.
- Page 3 T61W（RGB）R06 LED Controller User Manual 3 / 6 Introduction Welcome to use T61B（RGB）R06 controller. This production uses advanced micro-electronics control technique to control the output of red, green, blue signals. Each way can realize the control of 6-level brightness and 16-level speed.
- Page 4 T61W（RGB）R06 LED Controller User Manual 4 / 6 T61 Control T61 control divides into panel key control and long-distance wireless remote control. Panel control There are 6 keys in all on panel (chart 1). Chart 1: chart of panel keys.
- Page 5 SPEED_SLOW: Speed-down button. Press one time, speed decreases one level, it means the time between jump change and gradual change is decreasing. But it works only in model 8 to model 11. Diagram of T61W (RGB) R06 connecting system Packaging...
- Page 6 T61W（RGB）R06 LED Controller User Manual 6 / 6 (2).Packaging list Symbol Name Picture External dimension（mm） Unit T61W(RGB) L212*W41*L30(mm) Controller R06(remote) L86*W40*16(mm) Manual 61ERGB-R06 A6 sheet...
