- Page 1 Piezo Driver MTAD3001 Instruction Manual (Version 0.2)

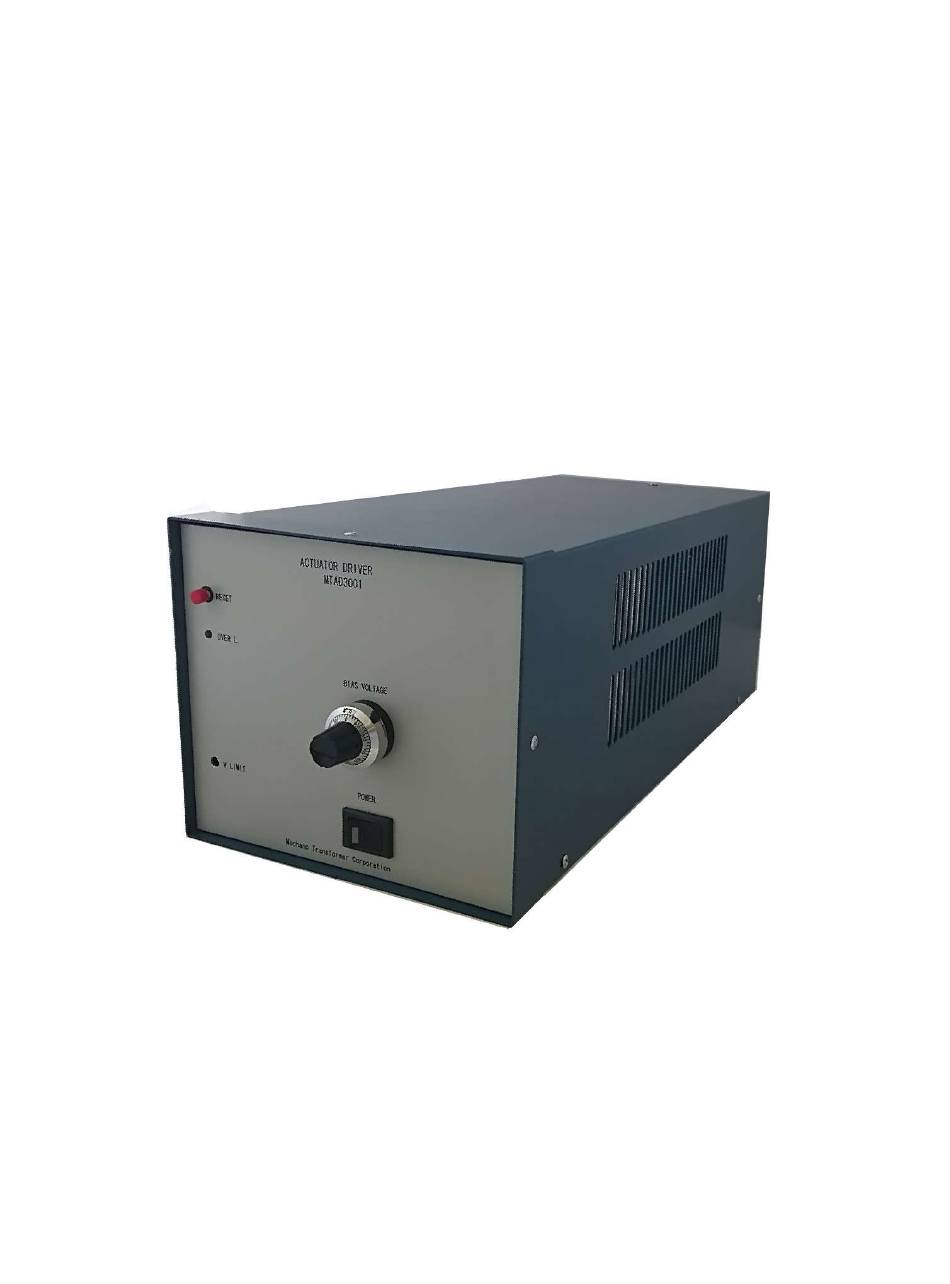

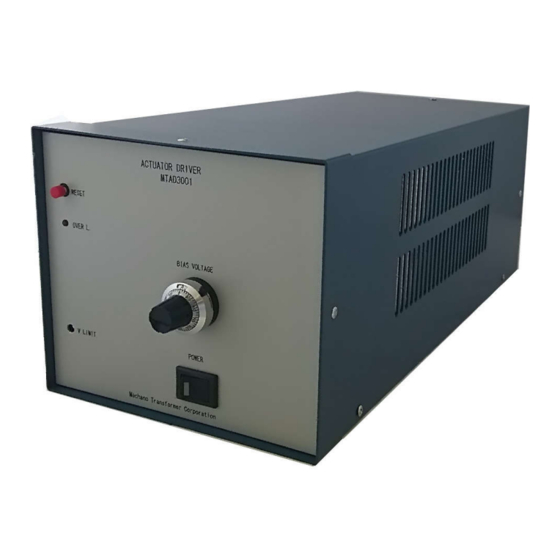

- Page 2 Overview The Piezo driver MTAD3001 is a linear amplifier with high precision and low noise, designed to drive capacitive load such as the piezoelectric actuators. A DC bias can be applied easily with knob attached. Therefore, a bias voltage can be easily added to the intended driving pattern.
- Page 3 ：AC100V 50/60Hz or AC230V or AC110V 3.13 Power supply *Need to define when order. ：340 x 450 x 220 mm 3.14 Dimension ：6.6 kg 3.15 Weight Operation manual 4.1 Operation parts The operation parts on the front and rear panels are shown as follows. <Front panel>...
- Page 4 ②〔CASE GND〕 ：Ground terminal of body case. ③〔INT. GND〕 ：Ground terminal of internal circuit. ④〔RESET〕 ：To reset the MTAD3001 with external TTL level signal(High). ⑤〔OL. OUT〕 ：An open collector connection to sense an overload drive or short circuit remotely. ⑥〔COM.〕...
- Page 5 Only reset the〔RESET〕switch after make sure there is no short circuit, overload and etc. 4) Power bandwidth For reference the power bandwidth of the MTAD3001, some examples of the driving conditions are summarized as follows. Load capacitance Max. amplitude Gain bandwidth (－３dB）...
- Page 6 The protector circuit may fail to protect the MTAD3001 at some circumstances. A frequent activation of the protector circuit in short interval time like 1 minute may cause the protector circuit fail to protect the MTAD3001.
