Summary of Contents for Mystic Romance Di Aroma Mars

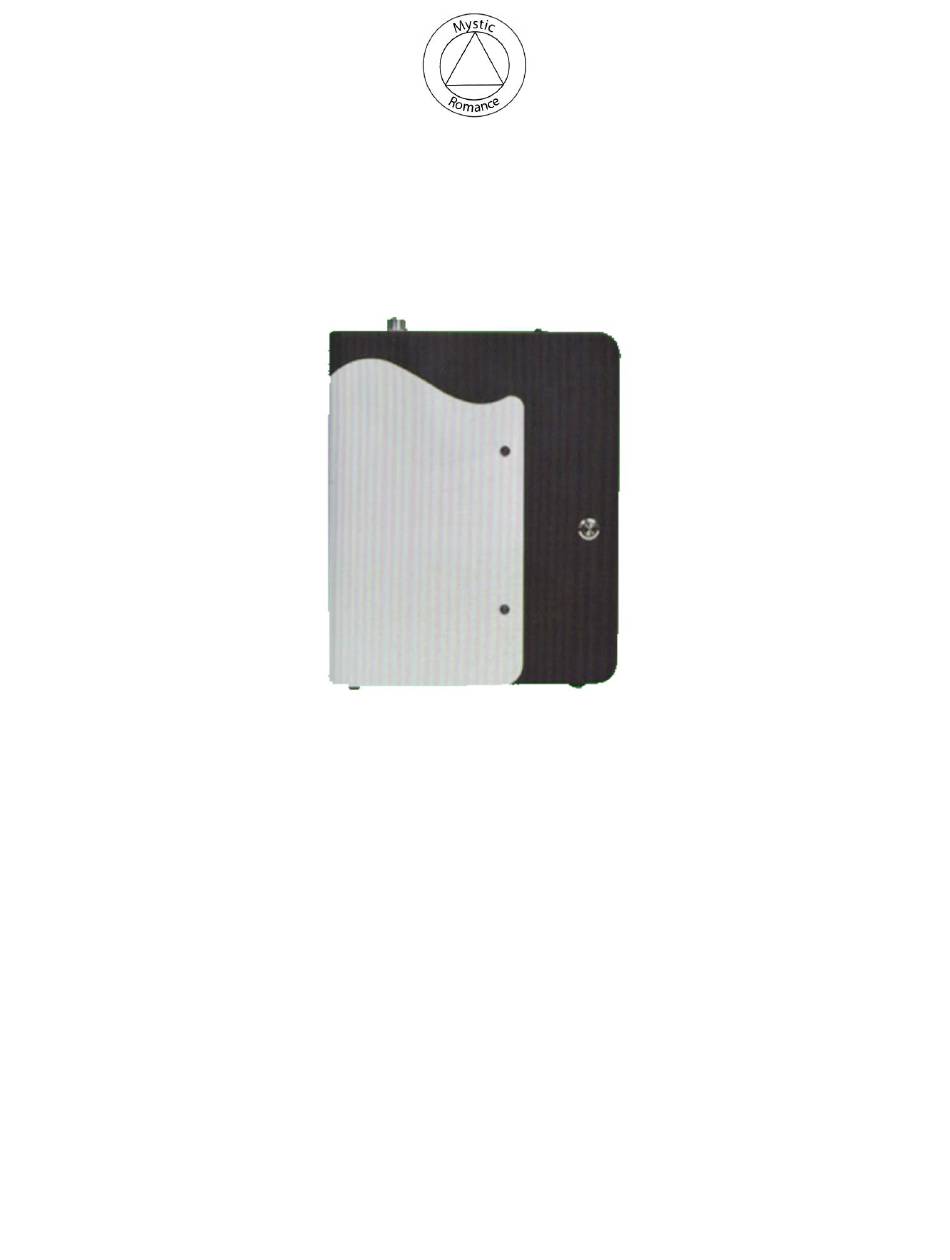

- Page 1 SCENT EQUIPMENT USER MANUAL EXPERT IN FRAGRANCE DELIVERY SYSTEM SOLUTION SAFETY EFFECTIVE ENVIRONMENTAL thenaturearoma.com...
-
Page 2: Product Introduction
PRODUCT INTRODUCTION This scent machine is for small commercial area. It uses advanced atomization technology to make the liquid oil into fog, then can diffuse the fragrance into the air quickly. The machine has a fan installed, it can be used directly to diffuse the fragrance and, also can be connected to the HVAC system. - Page 3 Step First: Use the key to open the machine Second: Move the cover to the left and take it down Third: Remove the oil bottle clockwise, add or replace the oil into the bottle, then install oil bottle against clockwise. Fourth: Point the cover to the small holes, move the cover to the right and fix it, finally use the Key to lock it.
-
Page 4: Set The System Time
SET THE SYSTEM TIME Firstly, to press [SET), the LCD display showed "hours" figure will flash, then press (UP/DOWN) to adjust hour. Press (SET) at second time. Hour adjustment finished. The minutes figure will flash, then press (UP/DOWN) to adjust the minutes. - Page 5 SET THE WORKING PERIODS: The machine can be set for 5 groups different working periods, it can also set different working days from Monday to Sunday according to different request. (Such as working for Monday, Wednesday, Friday; Stop for Tuesday, Thursday, Saturday) •...
-
Page 6: Troubleshooting And Maintenance
TROUBLESHOOTING & MAINTENANCE TROUBLES ELIMINATION MAINTENANCE METHODS Check the power supply Connect the power supply NO LCD indication and the switch again and turn it ON Check the power supply; Connect the power supply check the pump working or again to check the pump NO atomization not;... -
Page 7: Warranty
WARRANTY It is suitable for all the machines. Within 12 months after purchase date, Warranty is offered for all qualified machines. During warranty, we will offer repair services and the free parts. The warranty card & purchase Invoice are needed if after service required. Please do contact with us within warranty if any problems. -
Page 8: Installation Method
EQUIPMENT COMPONENT INSTRUCTIONS INSTALLATION METHOD thenaturearoma.com... - Page 9 METHOD OF CHANGING ATOMIZING CORE Step 1: Screw out the essential oil bottle, then pull out the pipe and take the atomizing core out. Step 2: Put the oil pipe into the opposite hole of the remarkable hole, then put the new atomizing core inside the machine.
- Page 10 thenaturearoma.com...
