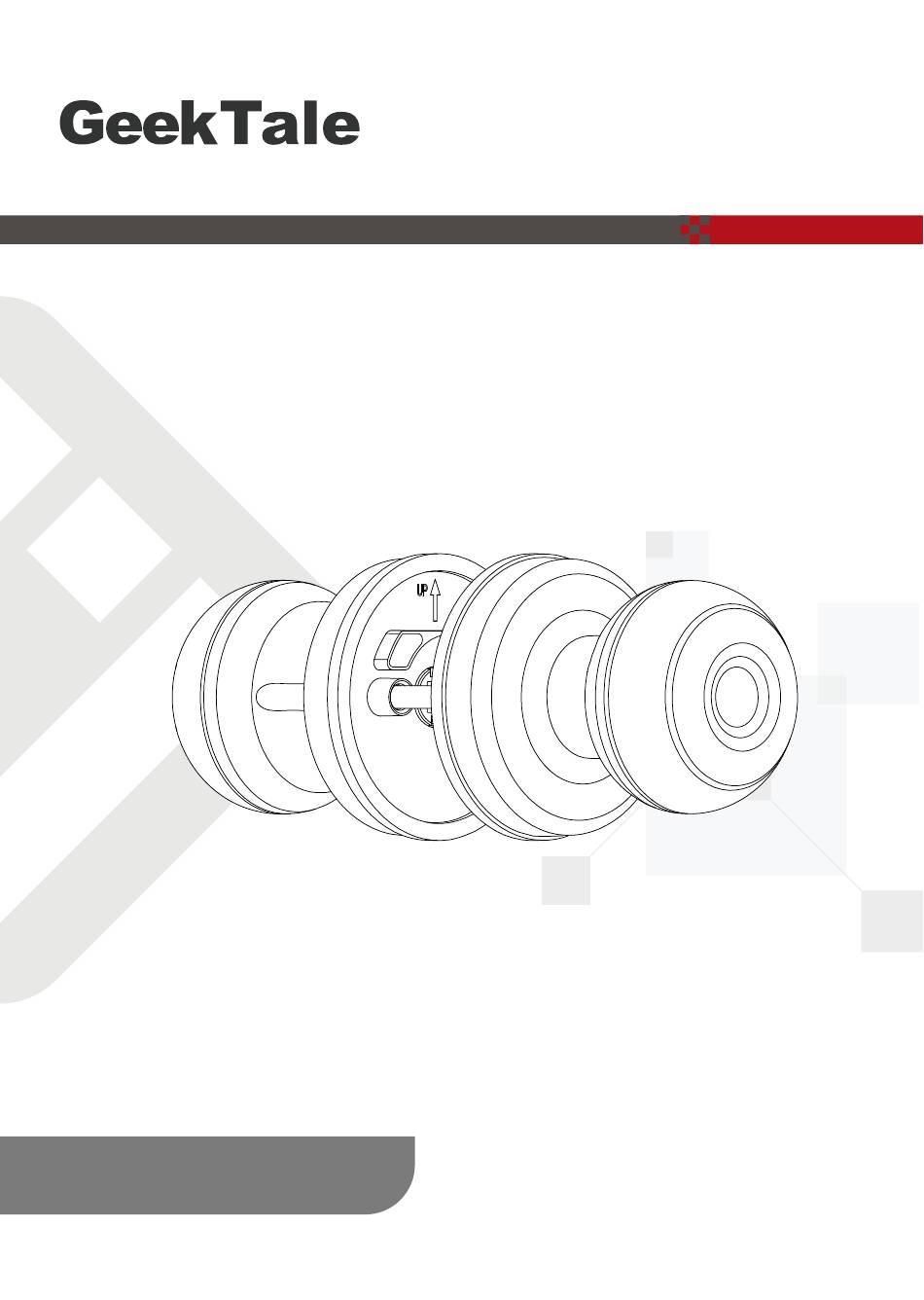

- Page 1 User Manual Model No.: K01 IMPORTANT： Read the instructions carefully before operating the appliance and keep them for future reference.
- Page 2 Features Specifications How To Use Geek Tale Geek Tale service_lock@geektechnology.com Scan the QR code for more Geek Tale Products...
-
Page 3: Product Description
Product description Product Dimensions ONE Product Features 1. Unlock way： Fingerprint、 Key、 APP 2. Passmode 3. Emergency power interface： Type-C 4. Secure lock mode 5. Door thickness： 35-55mm 6. Suitable for residential areas, apartments, offices, office buildings, etc. - Page 4 According to the opening of the lock body used,the distance of the square hole of the lock body needs to be adjusted according to the distance between the door edges. For the opening size, please refer to the opening diagram on the end page.
- Page 5 Lock Body Opening Diagram Depth 14mm Depth 14mm...
- Page 6 Specificataions Technical Parameters Name Parameter Description Type-C/ 5V2A Fingerprints max Low power warrinning 4.8V±0.2 Voltage range 4.5~6.5V Stand-by current ＜90uA Working current <250mA Unlock time ≈1.5 sec Range of working -5~55℃ Temperature Packing List Name Name Exterior knob Strike box Manual Screw B Screw A...
-
Page 7: How To Use
How To Use Installation Method 1. Install the three-bar lock body (pay attention to the direction of the oblique tongue and the direction of opening the door). See Figure Step ①; unscrew the fixing screws of the lock body, as shown in Figure Step ②. 2. - Page 8 Search "GeekSmart". 2. Register and log in with your mobile phone number. 3. Press the "+" to add a device, find "Smart lock " and record "K01", click and follow the prompts to complete the device addition and use. (Note: Touching the fingerprint head on the APP and the lock link is faster to wake up the...
- Page 9 lock end. If only Bluetooth is connected without adding a fingerprint, the lock is still in the factory experience mode).
- Page 10 4. Add administrator fingerprint (to operate on the lock side) Member management →Members → click “+” →fill in name and other data → Role setting choose “Administrator ” →back to Members interface →click the account you just create → click (add) → (operate according to the prompt displayed on the mobile phone), after the addition is successful, the fingerprint can be unlocked.
- Page 12 NOTE: ONLY the first BLE conneted mobile phone can be the priority Admin, who have the authority to manage the lock, including adding or deleting the fingerprint, BLE unlock; any other users or admins don't have the authority to manage the lock, BLE unlock or remote control.
- Page 13 5. Add ordinary user fingerprint (operate on the lock side) Member management →Members → click “+” →fill in name and other data →Role setting choose “Common Member ” →back to Members interface → click the account you just create → click (Add) → (operate according to the prompt displayed on the mobile phone), after the addition is successful, the fingerprint can be unlocked.
- Page 14 6. Delete fingerprint (operate on the lock side) Member management → click (fingerprint icon) of XXXX → click (fingerprint to be deleted) → (operate according to the prompt displayed on the mobile phone), after the deletion is successful, the fingerprint cannot be unlocked. Note: The lock end should retain an administrator fingerprint.
- Page 15 7. Remote unlocking Settings→Remote unlock click (Open icon). Note: The gateway can only be unlocked remotely.
- Page 16 8. Automatic lock Settings→Auto-lock (icon is on), it can be automatically locked after the delay time; Auto-lock (icon is off), fingerprint or mobile phone APP will not be automatically locked after starting (normally open), continue APP It will be automatically closed after it is automatically locked (the icon is turned on) and unlocked with a fingerprint or mobile phone APP.
-
Page 17: Key Unlock
Key Unlock Press the screw in the back of the front knob, the fingerprint head cover will come out for you to easily pull and turn. Pull out the fingerprint head cover, turn the key 90° to unlock, then turn the front ball to open the door. -
Page 18: Other Instructions
Other Instructions 1. In the factory state, any fingerprint can be unlocked. 2. How to get back to factory state? Use Pin to press the setting button in the back Knob for 5 second (the buzzer beeps once, the fingerprint head flashes green) Back to factory state succeed. - Page 19 GEEK TECHNOLOGY CO. LTD. 120 Route 46 West, Parsippany,NJ 07054, Toll Free 1-844-801-8880/(862)352-0406...
