Summary of Contents for AXIXTECH SAF205H
- Page 1 Model SAF205H Electronic Handheld Siren Installation and operation manual Notice to installer Before installation and use -- read all instructions and warnings. Deliver this manual to the end user of this equipment. Doc. No.: SAF205H Siren_v.1...
-
Page 2: Table Of Contents
Light Control Connections...................7 PROGRAMMING....................8 OPTION SWITCHES.....................10 OPERATION........................11 POWER (ON/OFF)....................11 SIREN CONTROLS....................11 Hands-Free Button....................11 Siren Button......................12 Radio Button......................12 Manual Button....................12 Horn Button......................12 PA........................12 HRT Input (optional)...................12 PKL Input (optional)....................12 LIGHT CONTROLS.....................13 LV Buttons......................13 Auxiliary Buttons....................13 TROUBLESHOOTING....................14 SAF205H Siren_v.1 - 1 -... -
Page 3: General Description

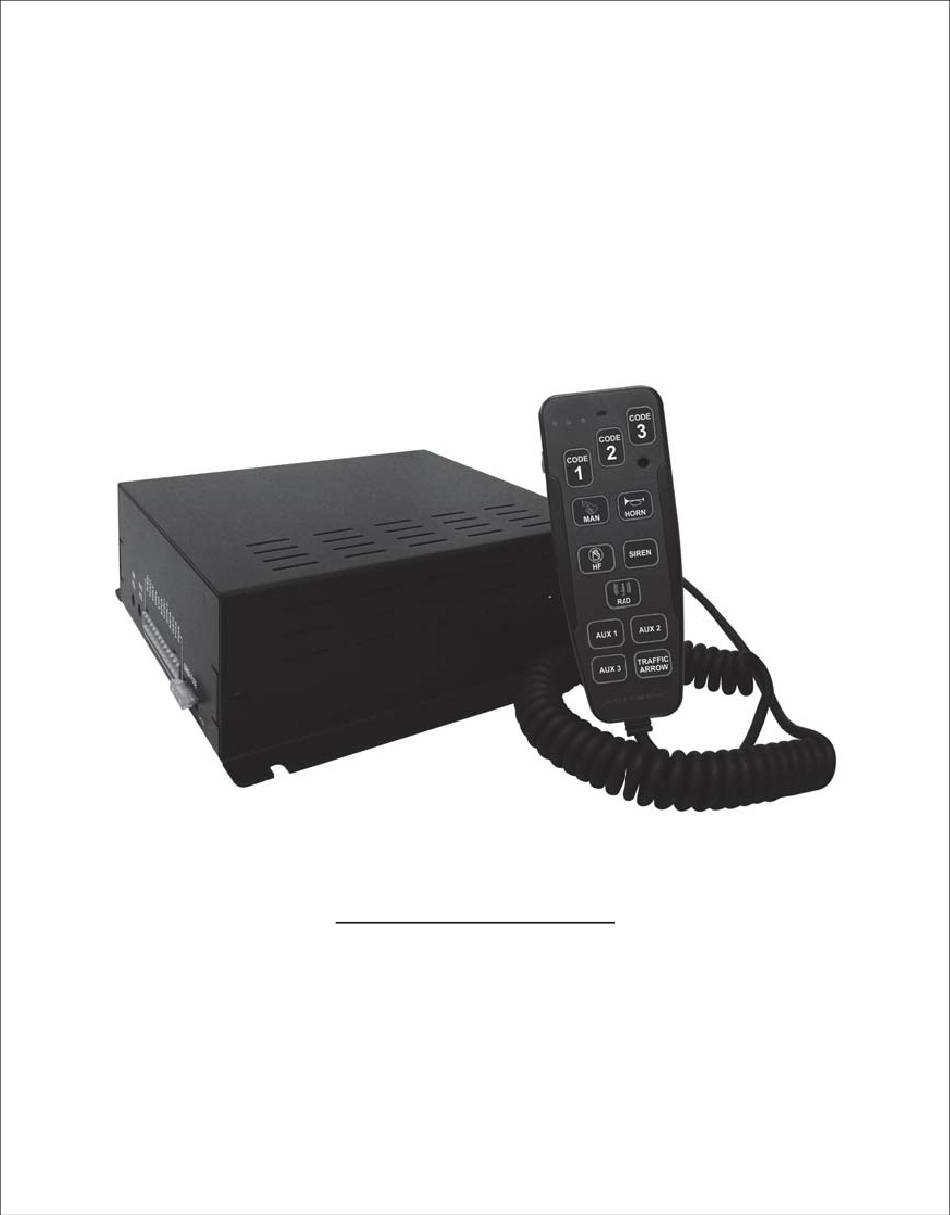

GENERAL DESCRIPTION The SAF205H Handheld Siren Amplifier is a premium 200W unit designed for single or dual 100W speaker use with full lighting control. A remote handheld controller is connected to the amplifier with a thin cable. The control head comes with a noise-canceling microphone for PA use and push-button override in all modes. -
Page 4: Specifications
LV1, LV2, LV3 (push buttons) 3-position screw terminal outputs. Connections SW1, SW2, SW3, SW4 (push buttons) 5-position screw terminal outputs. Size Siren Amplifier 20.8cm x 18.8cm x 6.9cm Controller: 5.6cm x 14cm x 3.3cm Boxed Weight 2.5kg SAF205H Siren_v.1 - 3 -... -
Page 5: Installation
The correct mounting and wiring is key to the effectiveness of SAF205H siren. Installers must read and follow installation instructions and warnings in the manual from original manufacturer. -
Page 6: Wiring
Speaker Output Connection – Both connections must be used. Two speakers may be connected in parallel. VID Output Connection (Option) – A Video Camera trigger output is activated when ever the unit is in SIREN or HF mode. (Not available in this model). SAF205H Siren_v.1 - 5 -... - Page 7 -VDC Switching example 15-25 Must set HRT_N +VDC Switching example 25-40 option switch 40-60 Use next larger size #22 AWG GRAY x2 Connect to output if longer than 10ft. jack, terminals, or speaker of radio SAF205H Siren_v.1 - 6 -...
-
Page 8: Light Control Connections
10-15 15-25 25-40 40-60 Use next larger size if longer than 10ft. NOTE: The controller is shipped without any button plates or decals installed. Place decal onto button plates, then install plates onto each button. SAF205H Siren_v.1 - 7 -... -
Page 9: Programming
NOTE: The Timed Momentary operation, typically used as a Gun Lock Timer, must begin with push button 3. If push button 3 is programmed as timed momentary, only then push button 2 may be programmed also as a timed momentary and so on. SAF205H Siren_v.1 - 8 -... -
Page 10: Option Switches
DIP-SW1-4 (PHASER_D) – Phaser/HiLo tones are disabled by setting this switch on. DIP-SW1-5 (HORN_D) – Horn tone is disabled by setting this switch on.hart. DIP-SW1-6 (SIREN_SW1) – See “Siren Mode settings” chart. DIP-SW1-7 (SIREN_SW2) – See “Siren Mode settings” chart SAF205H Siren_v.1 - 9 -... - Page 11 DIP-SW2-7 (AUTSR_D) – With this switch off, Siren tone is automatically activated when LV3 button is activated. With this switch on, Automatic Siren tone is disabled. DIP-SW2-8 (PRG) –Turn this switch on to enter Programming mode; see PROGRAMMING section. SAF205H Siren_v.1 - 10 -...
-
Page 12: Operation
SILENT-> WAIL-> SILENT -> WAIL -> YELP (MAN press once) YELP-> PHASER YELP-> HILO HRT quickly tap twice SILENT (MAN quickly tap twice) SILENT (with DIP-SW2-1 off) HRT press +0.5 secs HORN (with DIP-SW2-1 on) SAF205H Siren_v.1 - 11 -... -
Page 13: Siren Button
PKL Input (optional) – The Park Kill input may be connected to the vehicle door switch or other switching device to turn off any siren tone when activated. The siren will remain deactivated until the vehicle is shifted into gear or the door is closed and the siren is automatically restarted. SAF205H Siren_v.1 - 12 -... -
Page 14: Light Controls
LIGHT CONTROLS The 3 LV buttons (LV1, LV2, LV3) in the top area of the handheld controller are dedicated for primary lighting functions. There are additional 4 programmable on/off buttons for HORN auxiliary lighting or other devices. SIREN LV buttons – The LV buttons can be set RADIO to operate as a Progressive or Non- progressive switching. -
Page 15: Troubleshooting
See DIP-SW1-8 (TA_D) for corresponding Handheld controller LED indicator. TROUBLESHOOTING SAF205H Siren has been designed to provide reliable quality service under the worst conditions. If encounter any difficulties, check its installation or speakers. The following table represents problems and probable causes. - Page 16 SHORT_MAN when released when released LV_SW1 for configuration of Progressive or Non-Progressive switching (see "LV Button Modes" chart) LV_SW2 AUTSR_D Automatic Siren at LV3 Automatic Siren Disabled at LV3 Operation Mode Light Control Program Mode SAF205H Siren_v.1 - 15 -...
