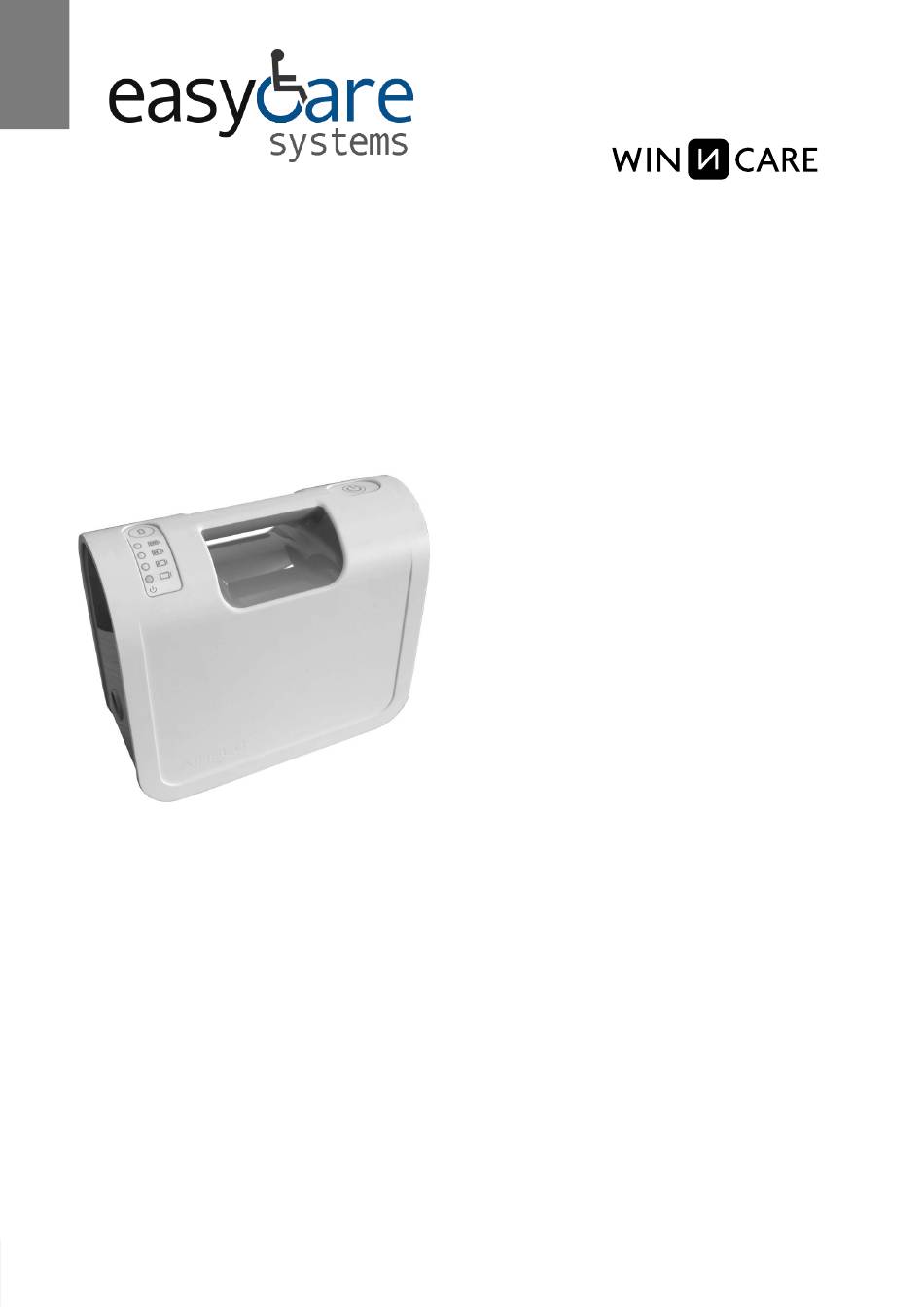

- Page 1 MANGAR AIRFLO 24 COMPRESSOR USER INSTRUCTIONS USER INSTRUCTIONS www.easycaresystems.co.uk...
- Page 2 This Quick Start Guide is not intended to replace the full user instructions. Please read the full user instructions before using the Airflo 24. STANDARD PACKAGE CONTENTS 1 x Airflo 24 compressor (A) fitted with a 24v - 2200mAh Ni-MH battery pack. 1 x Battery charger (with mains adaptors) (B).
- Page 3 CHARGE THE BATTERY FOR 12 HOURS BEFORE USE. For the first 3 hours, the bottom light will flash green. GREEN After 3 hours the first light will become a steady GREEN GREEN green and the second light will start flashing. After GREEN GREEN 6 hours the bottom 2 lights will remain green and...
- Page 4 UNDERSTANDING THE BATTERY STATUS INDICATOR LIGHTS The Battery Status Indicator lights serve 2 purposes: 1 - Whilst charging, the lights indicate which part of the charging cycle the battery is at. 2 - When the Battery Status Indicator Button is pressed (with the Airflo 24 removed from charge), the lights indicate how much charge remains in the battery.
- Page 5 DURING A LIFT Each time the hand control is operated the unit does a battery test and indicates the battery state. The hand control button is then released when a compartment in the lifting device is filled. Product will then automatically turn off after 2.5 mins of inactivity. GREEN GREEN GREEN...
-
Page 6: Table Of Contents
Intended Use cleaning. • Use only the supplied battery charger. The Mangar Airflo 24 is a low pressure air compressor, which has been designed to inflate • Do not operate the Airflo 24 compressor in the the Mangar ‘Camel’, 'Eagle' and ‘ELK’ pneumatic... -
Page 7: Battery Status Indicator
Power Button When the ‘Power’ button is pressed, the compressor will momentarily run and then stop. The bottom light on the indicator will show GREEN. Battery State Indicator When the Battery State Indicator button is pressed, the lights indicate how much charge remains in the battery. -
Page 8: Battery Charging
Battery Charging - fig. • Check the battery charger casing and lead for signs of damage and if damaged DO NOT USE. • Fit the appropriate mains plug adaptor to the battery charger (A). • Plug the battery charger into a mains power socket and connect the charger output lead to the Airflo 24 charging socket (B). -
Page 9: Mains Power Adaptor (Optional)
Mains Power Adaptor (optional) An optional mains power adaptor is available to power the Airflo 24 directly from a mains power socket. The adaptor is specific to the Airflo 24 and is the only approved unit to be used for this purpose. Connect the adaptor between a mains power socket and the adaptor inlet socket on the end of the Airflo 24 (Fig. -
Page 10: Cleaning & Storage
Cleaning Unless contamination is suspected, periodic cleaning is all that is recommended. The Airflo 24 should be cleaned/disinfected as follows: • Unplug the Airflo 24 from the battery charger. Clean the external surfaces using a non abrasive damp cloth with warm water. Wipe dry thoroughly with a dry towel before reconnecting to the battery charger. -
Page 11: Trouble Shooting Guide
Trouble shooting guide Problem Remedy • Ensure that the Airflo 24 has been switched • Compressor does not run when the 4 way • Ensure the charger is disconnected from the hand control buttons are pressed. Airflo • Check that there are no kinks in the air hose. •... -
Page 12: Symbols Used On Airflo 24 And Charger
Symbols used on Airflo 24 and Charger labels Attention consult instructions Class II Double Insulated equipment Type BF equipment (protection Dangerous voltage against electric shock) Duty cycle Alternating current (AC) I = Operating time O = Non operating time (Max continuous operating time = 5 Fuse (with rating) minutes) Recycle... -
Page 13: Symbols Used On Packaging
Symbols used on packaging Keep packaging dry Recycle packaging Do not dispose of in household waste Handle with care Max/Min humidity when transporting Max/Min storage temperature or in storage Max/Min pressure when transporting or Net & gross weights in storage Max/Min temperature when Stack no more than five high transporting or in storage... - Page 14 Special Products and Service Contact Us Units 5 and 6 Lower Vicarage Road Southampton Hampshire SO19 7RJ T: 02380 420678 E: info@easycaresystems.co.uk...
