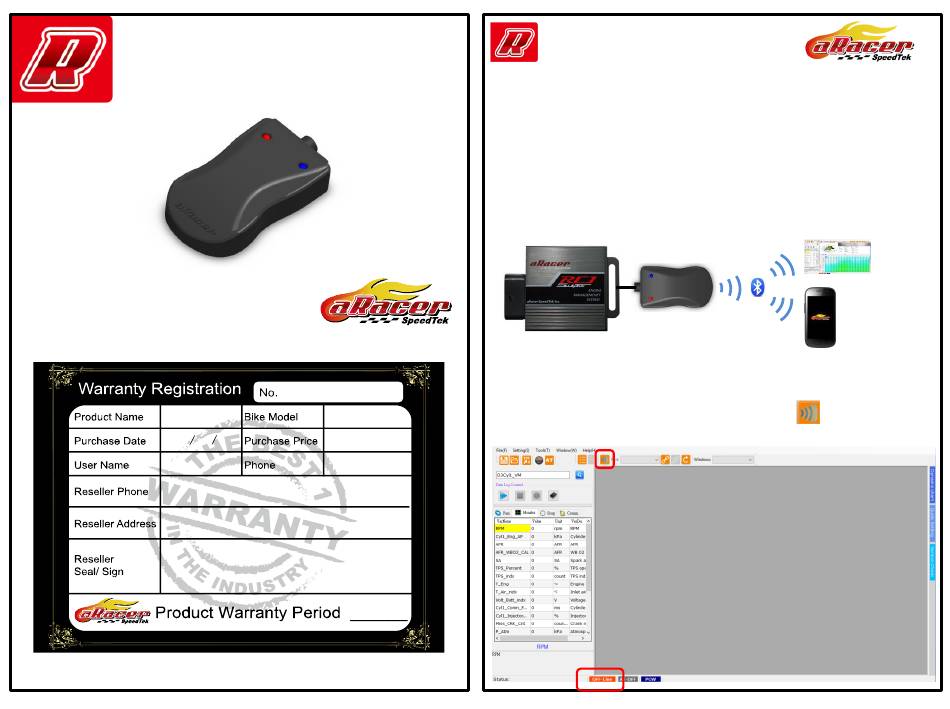

bLink2
User Manual
Note：
• Suggest the connection distance between bLink and
ECU < 5M
• Minimum voltage of vehicle >11.5V
• Special ECU model need to wait 5 sec to link.
• Use bLink to flash ECU, the process will take much time.
• bLink and iLink can not link with ECU at the same time.
1.
System Descriptions
2. Connect to RC Super ECU by blink2
2.1 Open SpeedTuning Super and Click
bLink module
Speed Tuning Super
& RCmini5 Flash Tool
aRacer APP
to search
Advertisement
Table of Contents
Summary of Contents for aRacer bLink2
- Page 1 • bLink and iLink can not link with ECU at the same time. System Descriptions Speed Tuning Super & RCmini5 Flash Tool aRacer APP 2. Connect to RC Super ECU by blink2 2.1 Open SpeedTuning Super and Click to search bLink module...
- Page 2 3. Connect to RCmini5 ECU by blink2 2.2 Double click bLink module to link. Default paired number：0000 3.1 Open RCmini5 Flash Tool and Click search bLink module 2.3 SpeedTuning Super linked with RC super ECU 3.2 Double click bLink module to link.
- Page 3 4.3 Click ③ the Scan of devices button. Select ④ the 4. aRacer Smart bLink module and ⑤ Fill in the default pair number (0000) and ⑥ click OK . 4.1 Download aRacer Smart from Google Play Store or Apple APP Store and install aRacer Smart. ⑤ ③ ⑥ ④...
- Page 4 5. bLink Indicator Light Descriptions ⑦ click the back button then ⑧ aRacer Smart linked with RCmini5. ECU link status indicator ⑧ (Red) Bluetooth status indicator (Blue) 5.1 Bluetooth status indicator ： Flash：Unlink Double flash：Link 5.2 ECU link status indicator：...
- Page 5 6. bLink Firmware Update 6.4 Check the ④ Device Name and put new PIN Code (XXXX) of bLink module. Select ⑤ Target ECU and 6.1 Download the bLink Flash Tool from aRacer click ⑥ Speedtek website. (http://www.aracer-speedtek.com) And install the bLink Flash Tool.
