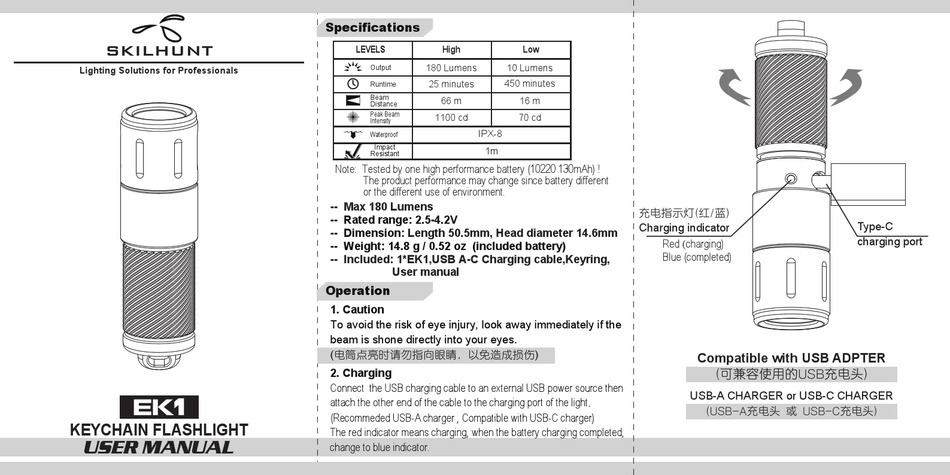

SKILHUNT EK1 User Manual

SKILHUNT
Lighting Solutions for Professionals
EK1
KEYCHAIN FLASHLIGHT
USER MANUAL

Specifications

LEVELS High
180 Lumens
Output
25 minutes 450 minutes
Runtime
Beam
66 m
Distance
Peak Beam
1100 cd
Intensity
IPX-8
Waterproof
Impact
1m
Resistant
Note: Tested by one high performance battery (10220 130mAh) !
The product performance may change since battery different
or the different use of environment.
-- Max 180 Lumens
-- Rated range: 2.5-4.2V
-- Dimension: Length 50.5mm, Head diameter 14.6mm
-- Weight: 14.8 g / 0.52 oz (included battery)
-- Included: 1*EK1,USB A-C Charging cable,Keyring,
User manual

Operation

1. Caution
To avoid the risk of eye injury, look away immediately if the
beam is shone directly into your eyes.
(电筒点亮时请勿指向眼睛，以免造成损伤)

2. Charging

Connect the USB charging cable to an external USB power source then
attach the other end of the cable to the charging port of the light.
(Recommeded USB-A charger , Compatible with USB-C charger)
The red indicator means charging, when the battery charging completed,
change to blue indicator.
Low
10 Lumens
16 m
70 cd
充电指示灯(红/蓝)
Charging indicator
Red (charging)
Blue (completed)
Type-C
charging port
Compatible with USB ADPTER
(可兼容使用的USB充电头)
USB-A CHARGER or USB-C CHARGER
(USB-A充电头 或 USB-C充电头)
