Summary of Contents for Acclaim Lighting XTR Driver

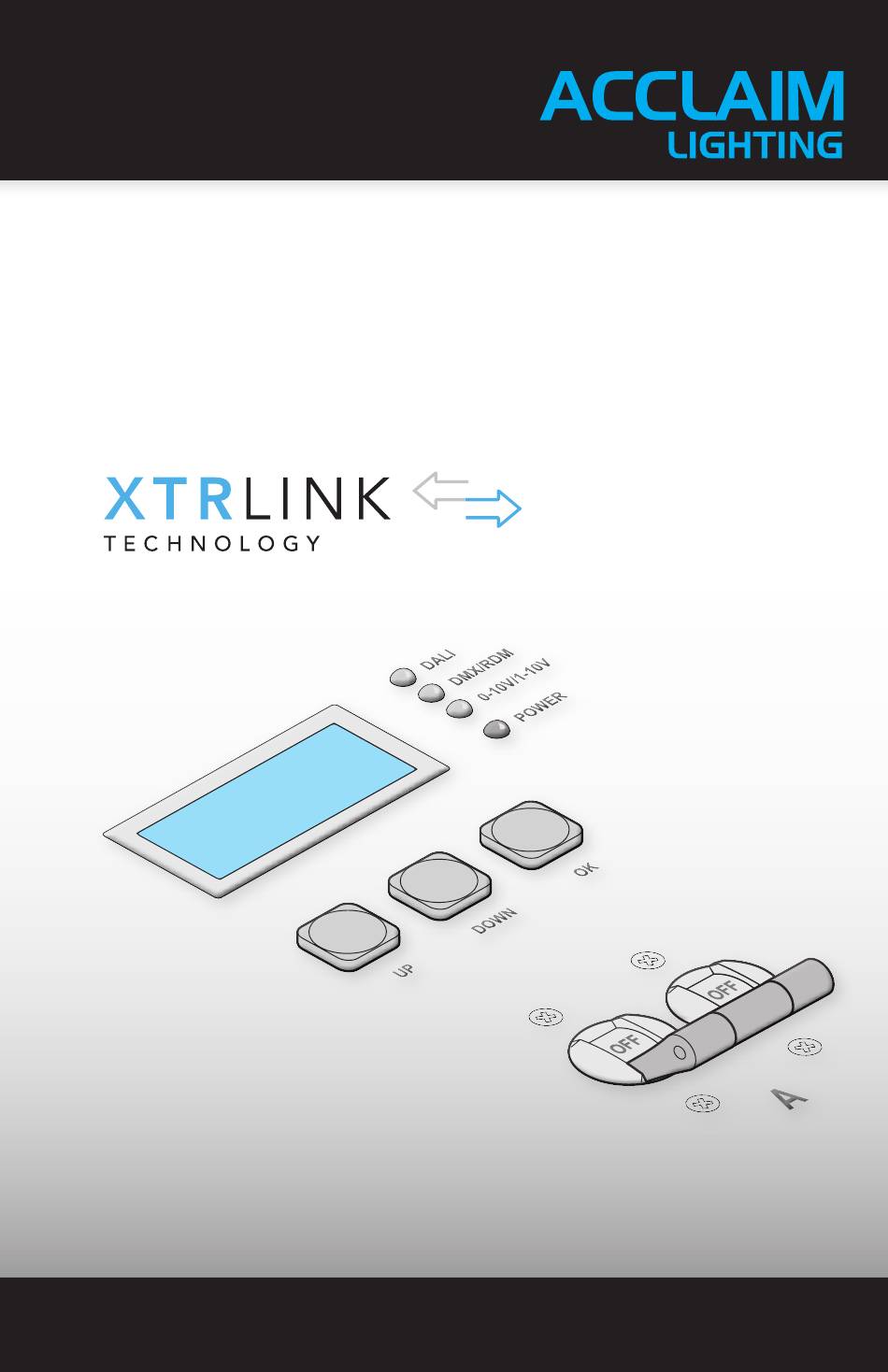

- Page 1 XTR Driver User guide...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............2 Welcome Safety, maintenance and cleaning Supplied items Optional accessories INSTALLATION ............4 Mounting Spacing Control input connections Control input behaviors Fixture limits Output feeds Run lengths Important cabling considerations Output tails Output fuses Power input(s) Powering on and off OPERATION ............ -
Page 4: Introduction
INTRODUCTION WELCOME Welcome to the XTR 4000 and 8000 Drivers from Acclaim Lighting. These specialized driver modules allow continuous runs (up to 700’/213m) of high intensity linear LED fixtures to be installed. Control formats such as DMX512/RDM, DALI or 0-10V/1-10V are supported. All connected linear LED fixtures must conform to the Acclaim Lighting XTR Link standard. -
Page 5: Supplied Items
SUPPLIED ITEMS XTR Driver 4000 XTR Driver 8000 plus 2x output tails (19’/6m) plus 4x output tails (19’/6m) OPTIONAL ACCESSORIES Feed cables (incl terminator end cap) 10’ (3m) [XTRFC10] 50’ (15m) [XTRFC50] 100’ (30m) [XTRFC100] Link cables 6” (15cm) [XTRLC0.5] 1’... -
Page 6: Installation
INSTALLATION MOUNTING Each XTR Driver must be mounted vertically on a secure mounting surface in the correct orientation within a dry atmosphere with low ambient temperature (see 17). See pages 18 and 19 for sizing and spacing dimensions for the four mounting cutouts. -
Page 7: Control Input Connections
CONTROL INPUT CONNECTIONS The fixtures connected to each XTR Driver can be controlled by any of four external signal types: DMX, DALI, 1-10V or 0-10V. DMX allows multiple channels to be addressed, whereas DALI, 0-10V and 1-10V control a single channel to which all connected fixtures will respond equally (see page 7). - Page 8 DALI Each XTR Driver has two DALI ports (In and Thru) that use 2-pin terminal blocks (supplied). For best results always use mains rated cables with 600V isolation and core with at least 1mm cross section. DALI signals are not polarity...
-
Page 9: Control Input Behaviors
RDM tool) for further details about RDM addressing. DMX/RDM When a DMX input is applied to the XTR Driver, it is duplicated across all of the fixtures on all of the output feeds. Multichannel XTR fixtures can be fully controlled. -
Page 10: Fixture Limits
FIXTURE LIMITS The total number of fixtures that can be driven and uniquely addressed by a single XTR Driver (in DMX mode) is determined by the power requirements for each fixture together with their emitter types and control modes. Different types of XTR Linear fixtures can easily be mixed within a single run. -
Page 11: Output Feeds
• Wherever possible, make the connection to the XTR Driver as the final link. • To release a connection, ensure that the XTR Driver is isolated, then twist the blue lock ring of the plug counter-clockwise to release the connection. -
Page 12: Run Lengths
For an XTR Driver, a single run (or dual runs across a shared pair of XTR Driver outputs): •... -
Page 13: Output Tails
OUTPUT TAILS The supplied output tails are used when connections to non-XTR cables need to be made from the XTR Driver. The color designations of the output tails (and also the optional feed cables) are as follows: IMPORTANT: Ensure that power earth and DMX GND are both tied to true earth. -
Page 14: Output Fuses
OUTPUT FUSES Each XTR Driver output has an adjacent protective fuse. IMPORTANT: Do not attempt to Fuse: 10mm x 38mm remove the fuse while the XTR 12A ceramic Driver is powered on. Always isolate power fully before changing a fuse. -
Page 15: Power Input(S)
POWER INPUT(S) • XTR Driver 4000 models require a single 220-277VAC supply, up to 20A. • XTR Driver 8000 models require dual 220-277VAC supplies, up to 20A each. • Power inputs should be supplied via suitable protective breakers. Conduit fixing with ½“... -
Page 16: Powering On And Off
The cooling fans will continue for a short period to ensure the power components are sufficiently cooled and the affected output ports will fade down to zero. 3 On XTR Driver 8000 models, repeat step 1 for the second pair of feed outputs, if necessary. WARNING - HIGH VOLTAGE... -
Page 17: Operation
OPERATION Once power has been applied (see page 14) you need to ensure that the control type shown on the XTR Driver menu matches the control input method being used: DMX, DALI, 0-10V (source) or 1-10V (sink). This is done using the front panel menu. -
Page 18: Front Panel Indicators
FRONT PANEL INDICATORS The four front panel indicators provide useful status information. DALI Flashing Signal OK No signal Flashing DMX mode enabled 0-10V/1-10V Flashing Analog mode enabled POWER Power enabled www.acclaimlighting.com... -
Page 19: Further Information
FURTHER INFORMATION SPECIFICATIONS Power input(s) 200-277VAC, 50/60Hz (XTR Driver 8000 model requires dual inputs) Control inputs DMX/RDM, DALI, 0-10V (source) or 1-10V (sink) via individual screw terminal connectors 4000: 1 x 3.9kW, 380VDC (10.5A maximum) + DMX/RDM Outputs (shared between two output ports) 8000: 2 x 3.9kW, 380VDC (10.5A maximum) + DMX/RDM... -
Page 20: Dimensions
DIMENSIONS XTR DRIVER 4000 www.acclaimlighting.com... - Page 21 XTR DRIVER 8000 www.acclaimlighting.com...
-
Page 22: Limited Product Warranty
If the requested repairs or service (including parts replacement) are within the terms of this warranty, Acclaim Lighting will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. - Page 24 www.acclaimlighting.com...
