Felixx AERO light - BH-AERO-2 Manual

Please read this manual carefully before first using.

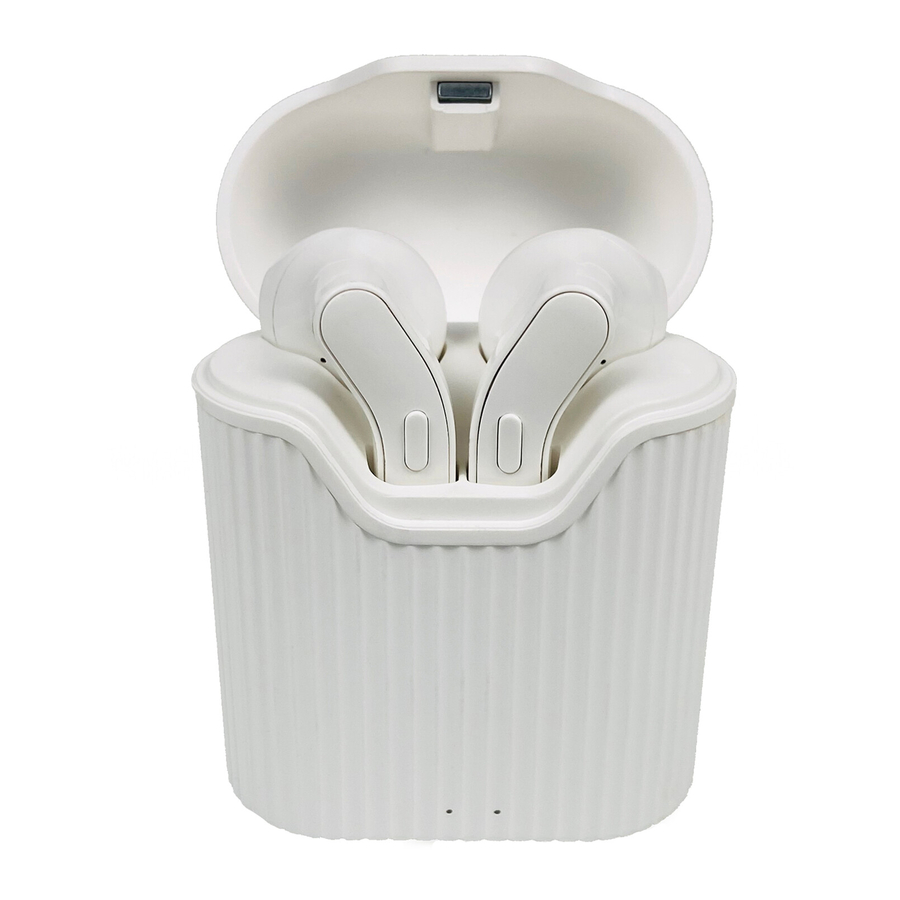

Device Overview

Technical Specifications

• Bluetooth-Version: V5.0
• Profile: HSP/HFP/A2DP/AVRCP
• Battery capacity earbuds 40mAh / pcs, 40mAh x 2, Li-Polimer battery
• Battery capacity charging-box 250mAh, Li-Polimer battery
• Charging time: approx. 50min. for earbuds, 1-2 h for the charging-box
• Connector/Voltage: micro USB / 5V DC
• Talking time: up to 9 hours (incl. Charging-Box)
• Playing time: up to 3 hours / max. 9 hours (incl. Charging-Box)
• Loudspeaker: Ø13 mm, 3 mW, 32 Ohm
• SNR: 112 dB ± 3dB
• Frequency response: 20Hz-20KHz
• Auto Power On / Off: automatically ON/OFF
• Auto Pairing: autom. re-pairing (when talking out of the charging-box)

ON/OFF and PAIRING (with a Bluetooth device)

1. Take out the earbuds from the packaging und put into the charging-box (make sure it is loaded).
2. Take them out again of the charging-box. The earbuds now are ON automatically and in pairing-Mode.
3. The „red/blue" LED on both earbuds start to flash.
4. After a few seconds only the „ red/blue " LED on left earbud flashes (Master). This means, that both earbuds are connected to each other now and ready to pair with Bluetooth device (e.g. Smartphone, tablet,...).
5. Now, look for „AERO light" in the Bluetooth-List of your Bluetooth device (check manual of your device) and click it to connect automatically (without need of a PIN-Code).
6. After pairing is successful, the „red" LED turns into "blue" and flashing once every 5 seconds.
7. Remark: After first time connection, in future, the earbud will be connected with your mobile automatically as long as you power on the earbud and your mobile´s Bluetooth is on and you didn't delete "AERO light" on your BT list from your device.

Power OFF

Press the control-button on both earbuds more than 3 seconds, or put them into the charging-box. If you power off only one of the earbuds, the other one will power off too.

Charging

1. When fully loaded the working-time is about 2-3 hours.
   Using the fully loaded charging-box (with integrated battery) AERO light can be loaded up to 3 times. So, the complete working- time can be extended up to 9 hours without having connection to power plug.
2. Indicator battery of charging-box is weak:
   1. The „red" LED starts flashing every 5 seconds and you hear a warning tone in the earbud (during using).
3. Anzeige Akku der Ladebox ist schwach:
   1. Only one „blue" LED on the charging-box is on and it starts flashing.
4. Charging the charging-box: connect it with the included micro USB-cable and a compatible charging device (5V DC, 1A; not included), e.g. the one of your smartphone or similar.
   1. The two „red" LED flashing slowly during charging.
   2. The charging-time is about 1-2 hours.
   3. When fully loaded, the two „red" LED´s stop flashing.
5. Charging the Earbuds: put both earbuds into the charging box – charging starts automatically.
   1. During charging, the „red" LED on earbuds are lighting.
      Same time the LED on charging-box lighting „blue". If box is fully loaded, two „blue" LED are on, if box is not fully loaded only one "blue" LED is on.
   2. „Blue" LED gets off, when the earbuds are fully loaded.
   3. This needs up to about 50 minutes (if earbuds are completely empty).
6. Indicator battery weak during using (music or call):
   1. If battery of earbud is quite empty (voltage below 3.2V), the „red" LED starts flashing once every 5 seconds. When it flashed 3 times quickly and you hear a sound warning tone, it will go Power Off.
   2. Please charge them immediately.

Functions (Music / Calls)

1. Play/Pause: When playing music, short press any earbud's control button to Stop/Playing music.
2. Next song: When playing music, press and hold 1.5seconds of any earbud' control button to switch into next song (pay attention: long press 3 seconds will power off).
3. Hang on (talk a call): When calling comes, short press any earbud's control button.
4. Decline a call: Press and hold any of the earbud's control button for 1.5 seconds to decline the calling (pay attention: long press 3 seconds will power off).
5. Hang off (end call): When under calling, short press any earbud's control button to end the phone call.
6. Recall: Quick double press any of the earbud's control button to recall the last No. on your calling list of mobile.
7. Power off: Press and hold the earbud's control button for 3 seconds.

FAQ / Question

1. AERO light cannot be found in BT list of your Bluetooth device.
   1. Check, if AERO light is ON.
   2. Check if AERO light is in "Pairing-Mode". If not, put both earbuds into charging-box. Then took them out again, wait some seconds to get the earbuds connected each other, then start pairing with your Bluetooth device again.
   3. AERO light already is connected to another device (pls check).
   4. Other possibilities:
      1. Switch OFF the Bluetooth function on your Smartphone and switch it ON again. Then re-start pairing.
      2. Delete some Bluetooth connected items on your Smartphone to have again space for new ones. Then again re-start pairing
2. Connection of the earbuds to the smartphone gets interrupted during using, or you cannot hear any sound even existing connection (and loudspeaker-level is not off):
   1. Maybe batteries of earbuds are quite empty. Put them into the charging-box for loading. After loaded, start again.
   2. The distance between earbuds and smartphone is too high. Pls lower the distance (max. distance is about 10m, best is below 2m; for pairing best below 0.5m).
   3. Pairing was not completed successfully. Switch ON/OFF. earbuds and start pairing / connection once more.

Cleaning & Security

1. Keep away from children.
2. As the item is not waterproofed, always keep it dry (no rain, water or other liquor).
3. If getting wet, let it first dry completely.
4. Always keep it clean – dust and mud can destroy the electronical parts.
5. Beware it from heat and cold. Both can damage or reduce life on the in-built battery.
6. Don´t try to open the item – warranty will be lost.
7. Don´t use heavy cleaning utensils or chemical cleaning supplies.
   Only use a soft cloth.

Warranty (6 months warranty)

1. This includes no mechanical defects, no water defaults caused by customer.
2. In case of defects please contact your dealer (provide your bill – so take care of it).

Declaration of Conformity (DOC)

Shenzhen Anbotek Compliance Laboratory Ltd, 1/F, Building D, Sogood Science and Technology Park, Sanwei community, Hangcheng Street, Bao´an District, Shenzhen, Guangdong, China, 518102 did following CE Certificate (Certificate Nr.: ATSZAWW191120002): This model fulfills the essential requirements of following EU Directive:
Radio Equipment Directive (RED) 2014/53/EU
This declaration of conformity is under the sole responsibility of the importer, Bea-fon Mobile GmbH:

Description of accessories:

• USB cable
• Batterie (charging-box): 3,7V 250mAh Li-Ion (in-built)
• Batterie (earbuds 2x): 5V 40mAh Li-Ion (in-built)

Signed:

Bea-fon Mobile GmbH
Enzing 4, 4722 Peuerbach, Austria
