PIEGA CONNECT PLUS - Streaming Device Quick Guide

HOW TO GET STARTED

Use this guide for a quick and easy dive into your personal sound adventure.
Simply follow the step-by-step instructions below to start using your PIEGA connect plus, or refer to the comprehensive manual on our website if you require further information.

UNPACK YOUR PIEGA CONNECT PLUS

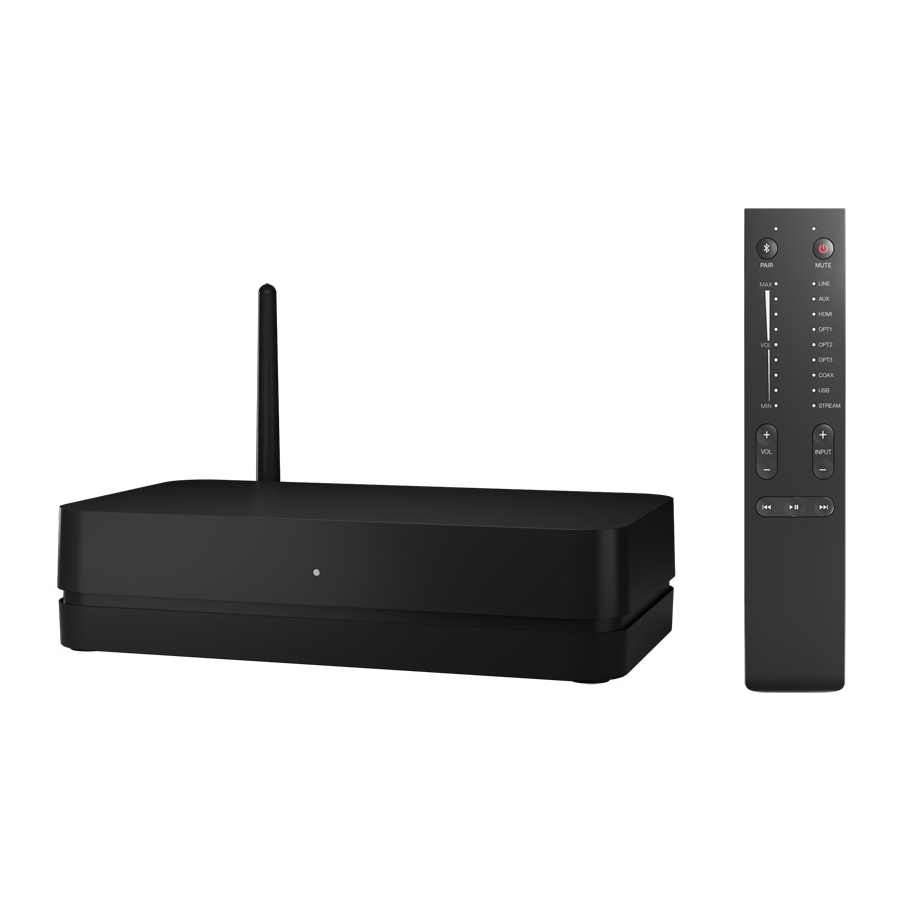

Make sure that the following items are included in the scope of delivery:

Also included:

external antenna
power supply

PAIR YOUR REMOTE WITH THE PIEGA CONNECT PLUS

Device Overview - Part 1
Before the first use, you will have to couple your remote with the PIEGA connect plus. Press the «PAIR/GROUP» button on your PIEGA connect plus 2 x to start the pairing process. Then press any button on your remote. The two units are now successfully connected.

CONNECT YOUR PREMIUM WIRELESS LOUDSPEAKER WITH THE PIEGA CONNECT PLUS

Make sure to set the same colour «GROUP» on your PIEGA connect plus and your Premium Wireless speaker. As long as you're using just one PIEGA connect plus, you are free to choose any colour: white, blue, or red.
The choice of colour will only become relevant if you're using several PIEGA connect plus in one room. For further details on the «GROUP» selection, refer to our detailed manual on our website.

PIEGA connect plus
Press «PAIR/GROUP» for at least 3 sec. to make a colour selection. The «GROUP» indicator lights up in the selected colour.

PIEGA Premium Wireless loudspeaker
Flip the switch to make a colour selection.
The «GROUP» indicator lights up in the selected colour. Once the colours match on both units, the connection is being established automatically.
Device Overview - Part 2

CONFIGURE YOUR LOUDSPEAKERS

A music signal consists of two audio channels, a left and a right one. This is how to set them up:
To assign the channels use the «Speaker Position»- switch and choose from:
LEFT: for the loudspeaker on the left
MONO: for the use of only one single loudspeaker
RIGHT: for the loudspeaker on the right
For the best possible listening experience, choose the loudspeaker setting that best suits the speaker placement in your room:
NEUTRAL: This setting is recommended for speakers that are placed at least 50 cm from the wall.

WALL: This setting is recommended for speakers that are placed less than 50 cm from the wall. The bass is ever so slightly decreased in this case.

CORNER: This setting is recommended for speakers that are placed in the corner of a room.

STREAMING OPTIONS

If you are planning to integrate your speakers into your WiFi, we recommend downloading Google Home from the IOS AC 100-120/220-240V 50/60Hz 200W or Android store. Please note that the PIEGA connect plus should have been operating for at least 1 minute to proceed with the following steps.

Now open the Google Home app.
Should the speakers not appear automatically, push «+» at the top left of your screen to add them in.
Then select «set up device» and follow the instructions in the Google Home app.
The Piega connect plus is now connected to your network and can be selected from various streaming services such as Spotify. For alternative streaming options refer to the detailed online manual.

DO YOU NEED FURTHER INFORMATION TO SUCCESSFULLY COMPLETE THE INSTALLATION?
A comprehensive manual on every model, including additional instructions and FAQs, can be downloaded from our website.
WARRANTY REGISTRATION
We don't want you to miss out on our warranty period of 6 years or 3 years on electronics, so don't forget to register your product on piega.ch/en/warranty-registration
