Coolpad Dyno Quick Start Guide

Please follow these simple but important instructions for optimal use of your new device.

We offer self-service for our smart terminal device users. Please visit the Coolpad Americas official website (www.dynokids.com) for more information on supported product models. Information on the website takes precedence.

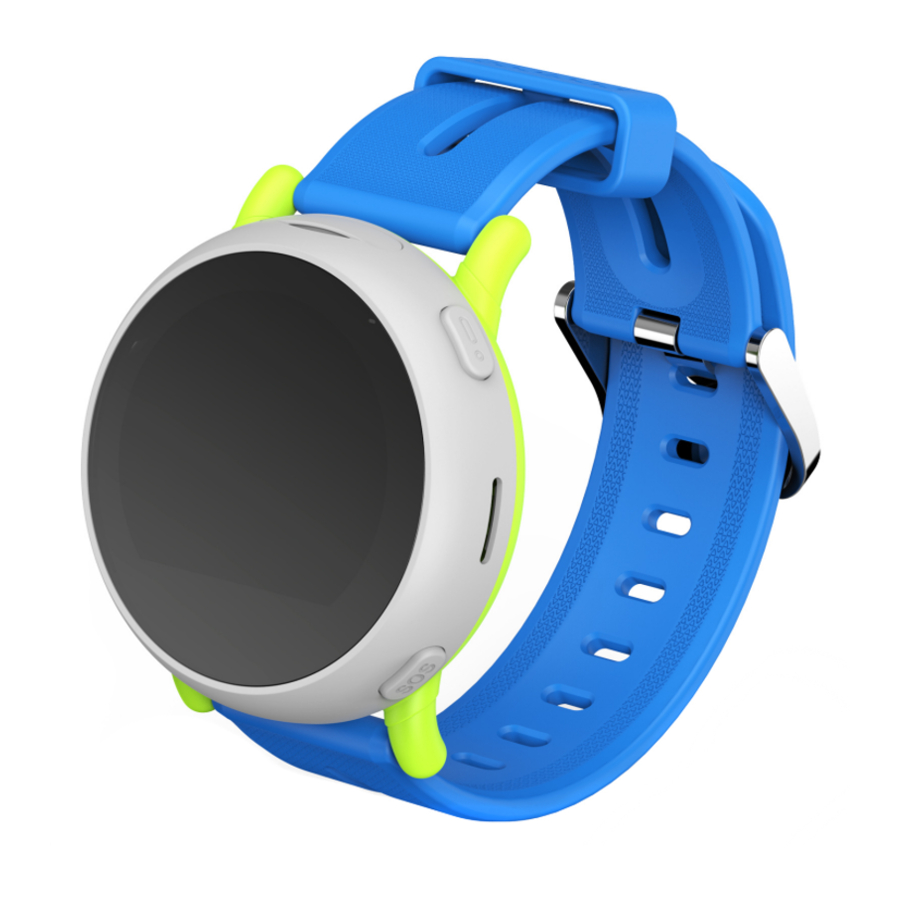

Device Layout

Charging the Battery

1. Connect the micro USB side of the data cable to the USB port on your device. This is located on the top left side of the smartwatch.
2. Connect the USB end to the travel adapter.
3. Connect the travel adapter to an electrical outlet to fully charge the smartwatch.

Power Smartwatch On & Off

• Press and hold the Power key to turn the smartwatch on/off.
• Press and hold the Power key for 10 seconds to restart the smartwatch.
• Press the Power key to turn the screen on when the screen is off.
• Press the Power key to return to the home screen while using the smartwatch.
• Press the Power key to mute an incoming call.

SOS Feature

The SOS feature allows your child to call the Primary Administrator for help in the event of an emergency.

1. Press and hold the SOS key for 5 seconds to enable the SOS feature.
2. The smartwatch will automatically call the Primary Administrator.

Note:

• If the call is not answered, the smartwatch will prompt your child to confirm if he or she wants to call 911. After the 911 call is made, the smartwatch will be able to receive calls from any number for 10 minutes.
• Swipe right to cancel enabling SOS feature.
• Press the SOS key to return to the previous screen while using the smartwatch.
• During a call, press the Power key to turn the volume up, and the SOS key to turn the volume down.

Linking the Smartwatch to the Coolpad Dyno App

The smartwatch must be linked to the Coolpad Dyno app for normal usage. The Coolpad Dyno app is available for Android OS 7.0 (or higher) in the Google Play Store or iOS 10 (or higher) in the Apple App Store. The app is free, but data usage may apply when downloading and using the app.

The first person who installs the Coolpad Dyno app on a smartphone and completes the registration will automatically become the Primary Administrator. Trusted members will also need to install and register with the Coolpad Dyno app for tracking and messaging features.

Step One: Download and install the Coolpad Dyno app on your smartphone

If you want to be the Primary Administrator, download and install the Coolpad Dyno app on your smartphone.

Step Two: Register as the Primary Administrator using the Coolpad Dyno app

1. Open the Coolpad Dyno app on your smartphone.
2. Tap Create Account. Enter name, phone number, email address and password to register an account.
3. You will receive a verification email. Click the link and your account will be verified.
4. Once your account is verified, you will be able to register as the Primary Administrator.

Note: The smartphone must have Internet access to complete registration. Use the phone number of your smartphone instead of the smartwatch phone number when registering with the app.

Step Three: Connect your smartphone to the smartwatch

1. In the app, enter your child's details, including name, birth date and photo.
2. Scan the QR code displayed on the smartwatch and the ICCID number of the smartwatch will be automatically entered.
3. Choose the service plan for the smartwatch.
4. Registration is now complete. The smartwatch will be activated and display the home screen.

Note: After you register your account with the Coolpad Dyno app and pair it to the smartwatch, the smartwatch will be linked to your email account. Your email account is only used to facilitate logging into your account and no personal information will be disclosed.

Using the Coolpad Dyno App

Coolpad Dyno app home screen

Contacts

Primary Administrator and trusted members can make calls and send messages to the smartwatch, and receive calls and messages from the smartwatch.

Non-trusted members can only make calls to and receive calls from the smartwatch. They cannot use the app or send messages to the smartwatch. Friends that have a Dyno Smartwatch can make calls to and receive calls from other Dyno smartwatches.

Adding contacts

As the Primary Administrator, you can add the contacts from the Coolpad Dyno app.

1. Tap Menu on the top left of the app home screen.
2. Tap Contacts and tap .
3. Enter the new contact's information.
4. Tap .

Note: If you enable Trusted Member when entering the contact's information, such contact will receive an invitation email. By clicking the link, he or she agrees to be a trusted member of the smartwatch.

Making a call to the smartwatch

Primary Administrator and trusted members can make a call to the smartwatch from the Coolpad Dyno app or from their smartphone. Non-trusted members can only make a call from a phone.

• To call the smartwatch from the Coolpad Dyno app, tap Current location on the app home screen and tap Call.
• To call the smartwatch from a phone, dial the smartwatch phone number.

Sending a message to the smartwatch

Primary Administrator and trusted members can send text and voice messages to the smartwatch from the Coolpad Dyno app.

1. Tap Menu on the top left of the app home screen.
2. Tap Messages and tap the smartwatch name.
3. Tap and hold to record a voice message, and release it to send the voice message. Or enter the text message and tap .

Checking smartwatch location

The smartwatch's current location can be seen on the home screen of the app. Tap Current location, you will see how long ago the location of the smartwatch was tracked, and the approximate location of the smartwatch.

Note: When the smartwatch is located in a place where GPS isn't available or if the smartwatch is turned off or runs out of battery, the Coolpad Dyno app cannot display current location information.

Using the Smartwatch

Smartwatch home screen

Call

Making a call

1. On the smartwatch home screen, swipe left and tap the Call screen.
2. Tap the name of the contact.
3. Tap to confirm calling.

Answering a call

To answer an incoming call, tap . To reject an incoming call, tap .

Chat

1. On the smartwatch home screen, swipe left and tap the Chat screen.
2. Tap the name of the contact.
3. Tap and hold to record a voice message and release it to send the voice message. Swipe left to view pre-set messages. Tap the pre-set message to send.

Add Friend

1. On the smartwatch home screen, swipe left and tap the Add Friend screen.
2. Tap Add Friend to start searching.
3. After the Primary Administrator of the friend's smartwatch approves the request, the friend will be added as a non-trusted member.

Step Tracker

1. On the smartwatch home screen, swipe right and tap the Step Tracker screen.
2. Here you can view the daily steps.

Alarm

1. On the smartwatch home screen, swipe right and tap the Alarm screen.
2. Tap the alarm to view details, including reminding time, repeat cycle and alarm name.

Note: The alarm can only be set on the Coolpad Dyno app.

Settings

1. On the smartwatch home screen, swipe right and tap the Settings screen.
2. Here you can adjust the volume, brightness, change language and ringtone, and update the software version.

Get Updates

Get updates, user guides and more information about your Coolpad Dyno Smartwatch at www.dynokids.com. Discover what's going on right now in news, trends, techniques & other cool stuff by connecting with us on social media:
