Korg PuttRhythm - Golf Putt Trainer Manual

Table of Contents

Overview

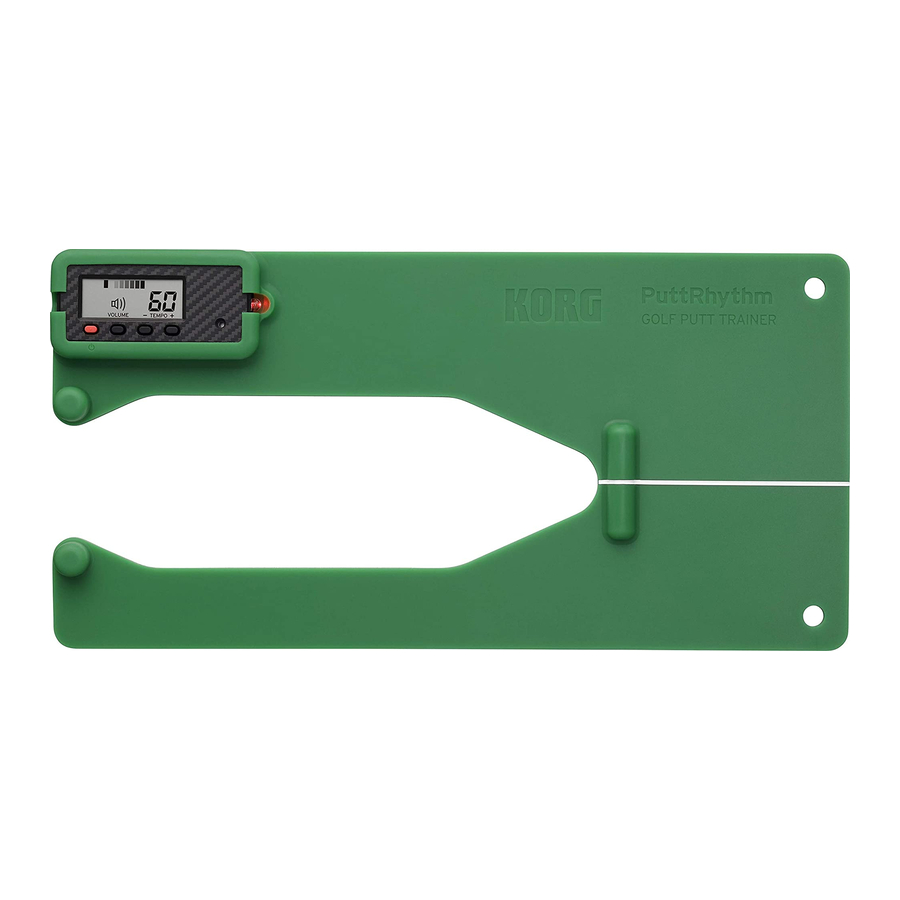

Parts of the PuttRhythm

* Specifications and appearance are subject to change without notice for improvement.

Insert the battery - Step 1 Insert the battery - Step 2

Bend the rubber part to remove the metronome (Fig. 1). )
Slide the battery cover on the back of the metronome in the direction indicated by arrow A, and lift it up.
Making sure to observe the correct polarity, insert the battery so that the "+" side of the battery is visible. Then return the battery cover to its original position.
Bend the rubber part to fit it around the metronome.

warning When the battery starts to run low, the battery icon () is displayed.

warning Make sure that the metronome is turned off before replacing the battery.

Place the PuttRhythm on the floor, and then press the power button. When PuttRhythm is used on a lawn, stick tees into the mounting holes to hold the PuttRhythm in place (Fig. 2).
Set the ball so that it fits perfectly with the narrowest part of the rubber base (Fig. 3).
Check the guideline behind the bar and take your stance.
Listen for the count to begin and swing the putter in time so that it passes slightly above the bar, and then hit the ball through the gate. Refer to Fig. 4()for the timing.
TIP The bar allows you to practice the strike height. Swinging the putter so that it passes slightly above the bar allows you to line up the center of the putter with the ball. (Fig. 5)
Each press of the VOLUME button switches the counting volume between high and low. Adjust the tempo with the TEMPO +/— button.
TIP A standard tempo for men is 70, and a standard tempo for women is 60. Try practicing your swing starting with this tempo.
