Introduction

The Southwire 40116N detects AC voltage from 100 to 600 volts.

A powerful built-in LED flashlight is included for added convienience.

With proper use, this tester will provide many years of reliable service.

warningWARNINGSwarning
  • Read, understand and follow Safety Rules and Operating Instructions in the manual before using this tester.
  • The tester's safety features may not protect the user if not used in accordance with the manufacturer's instructions.
  • Check on a known live source within the rated AC voltage range of the tester before use to ensure it is in working order.
  • Insulation type and thickness, distance from the voltage source, shielded wires, and other factors may effect reliable operation. Use other methods to verify live voltage, if there is any uncertainty.
  • Do not use if the tester appears damaged or if it is not operating properly. If in doubt, replace the tester.
  • Do not use on voltages that are higher than as marked on the tester.
  • Use caution with voltages above 30 volts AC as a shock hazard may exist.
  • Comply with local and national safety requirements – particularly with regard to arc-flash potential.
  • Do not operate tester if Low Battery warning occurs. Replace batteries immediately.
  • Do not use tester if there is evidence that batteries have leaked. Tester may be compromised. Replace tester if this occurs.
  • Use approved personal protective equipment when working on live circuits.

International Safety Symbols

warning Potential danger. Indicates the user must refer to the manual for important safety information
shock hazard Indicates hazardous voltages may be present
Equipment is protected by double or reinforced insulation

Safety Category Ratings

Category Rating Brief Description Typical Applications
CAT II Single phase receptacles and connected loads
  • Household appliances, power tools
  • Outlets more than 30ft (10m) from a Cat III source
  • Outlets more than 60ft (20m) from a Cat IV source
CAT III

Three phase circuits and single phase

lighting circuits in commercial buildings

  • Equipment in fixed installations such as 3-phase motors, switchgear and distribution panels
  • Lighting circuits in commercial buildings
  • Feeder lines in industrial plants
  • Any device or branch circuit that is close to a CAT III source
CAT IV Connection point to utility power and outdoor conductors
  • Primary distribution panels
  • Overhead or underground lines to detached buildings
  • Incoming service entrance from utility
  • Outdoor pumps

FCC COMPLIANCE
Users of this product are cautioned not to make modifications or changes that are not approved by Southwire Company, LLC. Doing so may void the compliance of this product with applicable FCC requirements and may result in the loss of the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference, and
  2. This device must accept any interference received, including interference that can cause undesired operation.

FCC Digital Emissions Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the radio or television receiving antenna.
  • Increase the separation between the computer equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the radio or television receiver is connected.
  • Consult the dealer or an experienced radio television technician for help.

Canadian Digital Apparatus Compliance
CAN ICES-3 (B)/NMB-3(B)

Maintenance

This tester is designed to provide years of dependable service, if the following care instructions are performed:

  1. KEEP THE TESTER DRY. If it gets wet, wipe it off.
  2. USE AND STORE THE TESTER IN NORMAL TEMPERATURES. Temperature extremes can shorten the life of the electronic parts and distort or melt plastic parts.
  3. HANDLE THE TESTER GENTLY AND CAREFULLY. Dropping it can damage the electronic parts or the case.
  4. KEEP THE TESTER CLEAN. Wipe the case occasionally with a damp cloth. DO NOT use chemicals, cleaning solvents, or detergents.
  5. USE ONLY FRESH BATTERIES OF THE RECOMMENDED SIZE AND TYPE.
    Remove old or weak batteries so they do not leak and damage the unit.
  6. IF THE TESTER IS TO BE STORED FOR A LONG PERIOD OF TIME, the batteries should be removed to prevent damage to the unit.

General Specifications

Detection voltage range 100 to 600V AC
Frequency range 50/60Hz
Batteries Two AAA 1.5V batteries
Operating temperature 32°F to 104°F (0°C to 40°C)
Storage temperature 14°F to 140°F (-10°C to 60°C)
Humidity 80% max.
Altitude 2000 meters
Pollution Degree 2
Safety Compliance CAT IV-600V

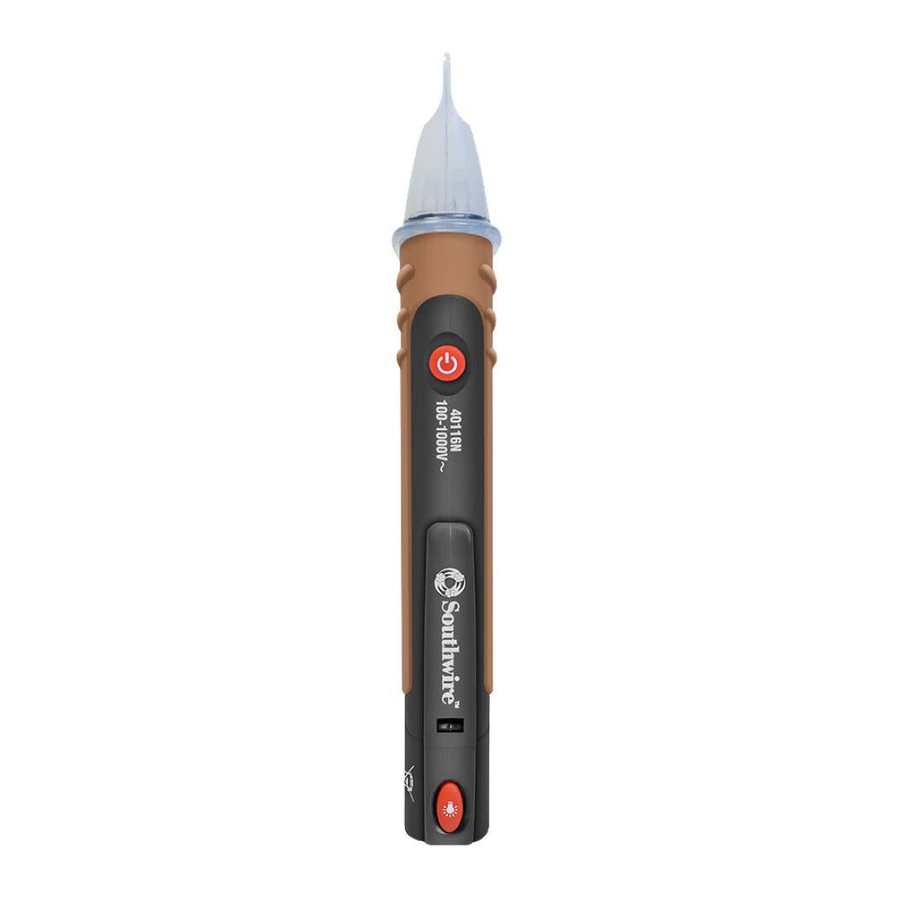

Detector Description

Description

  1. Flashlight
  2. Flashlight power button
  3. Battery cover
  4. Tester On/Off button
  5. "Tester On" GREEN LED and "Detector Alert" RED LED
  6. Detector tip

Operation

  1. Turning the Tester On: Momentarily press the tester On/Off button. The beeper will beep once and the green LED will illuminate to indicate that the tester is on and ready for use.
  2. Verify Operation: Before using tester,
    1. Make sure the green LED is glowing,
    2. Check tester on a known live AC voltage that is within the defined detection range of the tester.
  3. To Operate: Place the tip of the tester near an AC voltage from 100V to 600V.
    When the tester detects AC voltage, the green LED will turn off, the red LED will turn on, and the beeper will beep rapidly.
  4. Turning the Tester Off: Momentarily press the tester On/Off button. The tester will beep twice and the green LED will turn off.
  5. Auto Power Off: To conserve battery life, the tester will automatically turn off after approximately 5 minutes of inactivity. When powering down, the beeper will beep twice and the green LED will turn off.
  6. Flashlight: Press and hold the flashlight power button to turn the flashlight on. Release the button to turn the flashlight off.
  7. Low Battery Indication: When the batteries are too low for reliable operation, the beeper will beep three times and the green LED will turn off indicating the tester is inoperative. Replace the batteries immediately when this occurs. Also replace the batteries if the flashlight or indicator LEDs are dimmer than normal.

Battery Replacement

Steps 1. and 2.

  1. Press HERE (A.)
  2. Pull down here (B.), applying a gentle bending force until you hear a click, then pull off the battery cover
    Battery Replacement - Step 1

NOTE: When batteries are loaded for the first time, please remove the white, rectangular security strip before installing batteries.
Battery Replacement - Step 2

  1. Replace the batteries (observe polarity). Use two AAA 1.5V batteries.
    Battery Replacement - Step 3
  2. Carefully slide the battery cover onto the tester making sure the cover is aligned with the slots on the tester body. Make sure the battery cover is completely closed. Battery Replacement - Step 4
  3. Verify operation by using the tester on a known live AC voltage.

REGISTER YOUR PRODUCT

Register your product purchase at www.southwiretools.com.

At Southwire, we are dedicated to providing you with the best customer experience. By following a few quick steps to register, you can experience quicker service, more efficient support, and receive information on our future products. Simply provide your model number, serial number, and just a few pieces of information about yourself – it is that quick and easy.

LIMITED WARRANTY AND LIMITATION OF LIABILITY ON SOUTHWIRE METERS & TESTERS

Southwire Company, LLC. warrants this product to be free from defects in material and workmanship for two years from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage arising from an accident, neglect, misapplication, contamination, modification, improper maintenance or repair, operation outside of specifications, or abnormal handling of the product. Southwire's sole liability, and the purchaser's exclusive remedy, for any breach of this warranty is expressly limited to Southwire's repair or replacement of the product. Whether Southwire repairs or replaces the product will be a determination that Southwire makes at its sole discretion.

SOUTHWIRE MAKES NO WARRANTY THAT THE PRODUCT WILL BE MERCHANTABLE OR FIT FOR ANY PARTICULAR PURPOSE. SOUTHWIRE MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED, OTHER THAN THE WARRANTY SPECIFICALLY SET FORTH HEREIN. SOUTHWIRE WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES FOR ANY BREACH OF THIS WARRANTY.

This warranty is void if this product is used for rental purposes. No product reseller is authorized to extend any other warranty on Southwire's behalf relating to this product, and no such reseller warranty will be binding on Southwire. If you have a warranty claim, or if the product needs to be serviced during or after the warranty period set forth above, please contact the Customer Service Department at 855-SWTOOLS (855-798-6657).

The sender is responsible for all shipping, freight, insurance, and packaging costs associated with sending a product to Southwire. Southwire will not be responsible for lost or damaged products returned pursuant to this warranty.

All products returned to Southwire under this warranty should be mailed to:

Southwire Company, LLC.
Attention: Tool Warranty Return
840 Old Bremen Road
Carrollton, GA 30117
