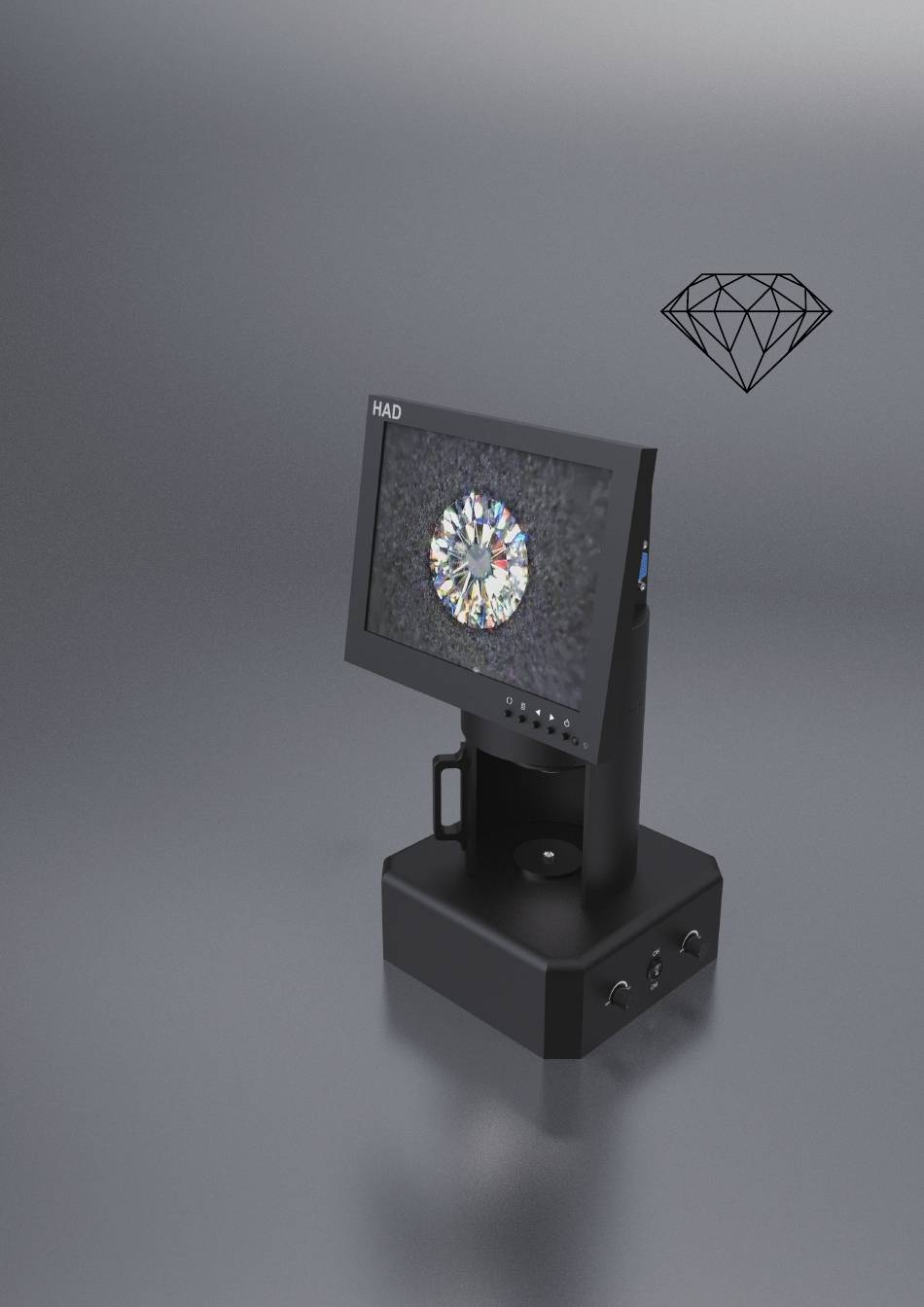

  • Page 1 HAD Diamond Brilliance Viewer II USER GUIDE...
  • Page 2 HAD Diamond Brilliance Viewer II Parts List g.Camera Menu Button a.Display Screen h.USB Interface i.VGA interface b.Video signal switching c.Screen Switch d.Camera j.USB Cable e.Shift Gate k.Brightness adjustment for Heart and Arrow f.Rotating Stage with Ring Stage l.Light switch for Diamond Heart and arrow m.Light switch for Diamond...

  • Page 3: Setting Up The Camera

    Setting Up HAD Diamond Brilliance Viewer II a. Plug the device into the power supply and pressing the power button b. Turn on the switch of the display and switch the signal to VGA mode c. Turn on the light switch and select a different working mode d.
  • Page 4 Turn on the light switch to Heart & Arrow mode c. Fixed the H&A Scope with the camera-- H&A Scope included magnet d. Adjust the aperture of the camera, and focusing e. Adjust the rotation speed of the stage HAD Diamond Brilliance Viewer II...

  • Page 5: Connected To The Computer

    Setting Up the size of the image a. Long press the button to setting up the size of the image Zoom out Zoom in Hold down the button Hold down the button Connected to the computer Software Download HAD Diamond Brilliance Viewer II...
  • Page 6 Scanning the QR code to download software b. Power on the device and connect the device to the computer via the USB cable c. Set up the software USB Interface Choose the camera model Save media files Save image files HAD Diamond Brilliance Viewer II...

  • Page 7: Product Parameters

    7 KG Video Link Manufacturer Information Company : Sunlin Jewellery Equipment Group (HK)Co.,Ltd Address : Unit A1 -15 1/F Phasel Hang Fung Industrial Building No.2G Hok Yuen Street Hung Hom KL HongKong Email: support@sunlin-group.com Website: www.sunlin-group.com HAD Diamond Brilliance Viewer II...
