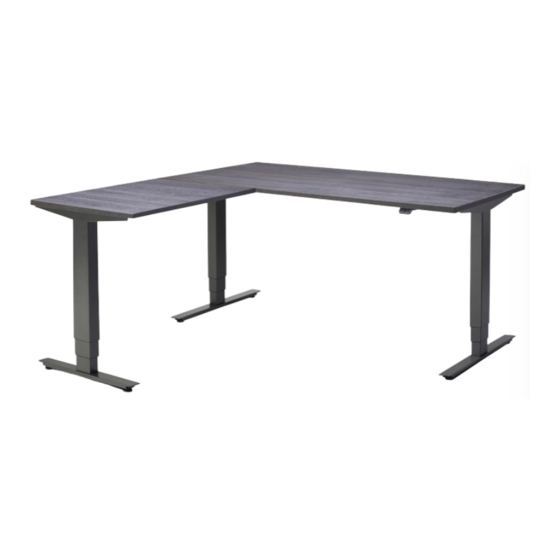

- Page 1 Stockholm Bluetooth Corner Standing Desk Assembly Instructions...
- Page 2 (optional) Packed with desktop...
-
Page 3: Component List
FIXINGS *R - These screws are used for the frame to desktop fixing except when using a desktop without metal screw inserts. COMPONENT LIST A - Desk Legs B - Under-desk Support Arm C - Cross Beam Connectors D - Cross Beams E - Feet (690mm Long) F - Plastic inserts G - Power supply lead... - Page 4 ASSEMBLE THE MAIN FRAME SECTION Insert screws but do not tighten. Gap needed for frame and brackets in steps 3 and 5. ‘P’ x4 CAUTION Components are heavy – take care when handling ‘Q’ x4 Insert screws but do not tighten.
- Page 5 Fully tighten screws. ‘P’ x4 Do not tighten: Keep loose for step 5.
- Page 6 Unravel leg motor leads and push into plastic cable tidy slots...
- Page 7 Fully tighten screws. It may be necessary to use a soft headed mallet to fit tight fitting support arm onto the leg / frame.
- Page 8 Fully ‘Q’x8 tighten screws.
- Page 9 ‘W’ x4 Hand tighten fully into foot.
- Page 10 Slide 'C' into the gap between 'D' and 'F' - keep motor wires clear. Feed leg motor cables through centre hole...
- Page 11 Slide the second half of the frame as- sembly onto 'C' - keep motor wires clear Feed leg motor cables through centre hole CAUTION Frame is heavy – take care when positioning it.
- Page 12 ASSEMBLE THE RETURN FRAME SECTION Do not tighten: Keep loose for step 15. ‘P’ x4 CAUTION Components are heavy – take care when handling ‘Q’ x4 Insert screws but do not tighten.
- Page 13 Slide 'C' into the gap between 'D' and 'F'...
- Page 14 Fully tighten screws. Do not tighten: Keep loose for step 15.
- Page 15 Fully tighten ‘Q’x4 screws. Fully tighten screws. It may be necessary to use a soft headed mallet to fit tight fitting support arm onto the leg / frame.
- Page 16 ‘W’ x2 Hand tighten fully into foot.
- Page 17 RIGHT HAND RETURN Loosen screw to accept bracket Fully tighten screws. Place bracket (M) keyholes over the loosened frame screws and push the bracket to the right to secure the keyhole on the screws. For left hand returns, push the bracket (M) to the left.
- Page 18 Hook return leg assembly onto bracket as shown Feed cable extension 'N' through the frame to join with other cables. Left Hand Return...
- Page 19 NOTE Check desktop for any damage before commencing this stage. Right Hand Return Left Hand Return...
- Page 20 Fully ‘R’x36 tighten screws. NOTE View is of underneath desk...
- Page 21 Fully tighten central cross beam screws. ‘Q’x8 IMPORTANT: Double check all screw are fully tightened. NOTE View is of underneath desk...
- Page 22 NOTE Fit the plastic caps to exposed frame screw heads. Press hard to locate the caps onto the screws and tap home securely using a mallet The caps are designed to mould onto the screws through force. ‘W’x20 NOTE View is of underneath desk...
- Page 23 Fully tighten screws. ‘R’x2 Fully tighten screws. ‘S’x8 NOTE View is of underneath desk...
- Page 24 NOTE View is of underneath desk Use cable clips provided to keep cables tidy.
- Page 25 Options for mounting the hand controller: Fixed or retractable Fixing positions are marked both on the left hand and right hand side of the underside of the desktop by pre-drilled pilot holes to make positioning and fixing the switch easier. Retractable Fixed Switch can be pushed back flush with the...
- Page 26 Switching method options Physical, Bluetooth or both Physical Only: The diagram in step 16 on the previous page shows the physical switch "I" plugged directly into the control box. This enables the desk to be controlled solely by the physical switch. Bluetooth Only: To enable the desk to be controlled solely by Bluetooth (via the phone App) plug the Bluetooth dongle into port "H"...
-
Page 27: Reset Procedure
RESET PROCEDURE IMPORTANT! A reset procedure MUST be carried out immediately following assembly of the desk. • Lower the desk to its lowest position by pressing the down arrow on the hand control. • Release the button. • Press the button again and keep it pressed for 10 seconds •... - Page 28 FRISKA Corner Desk Assembly Manual Esto Global Limited T/A: FRISKA Desk Innovation House 39 Mark Road Hemel Hempstead Herts. HP2 7DN T: 0330 133 1937 E: sales@friskadesk.com...
