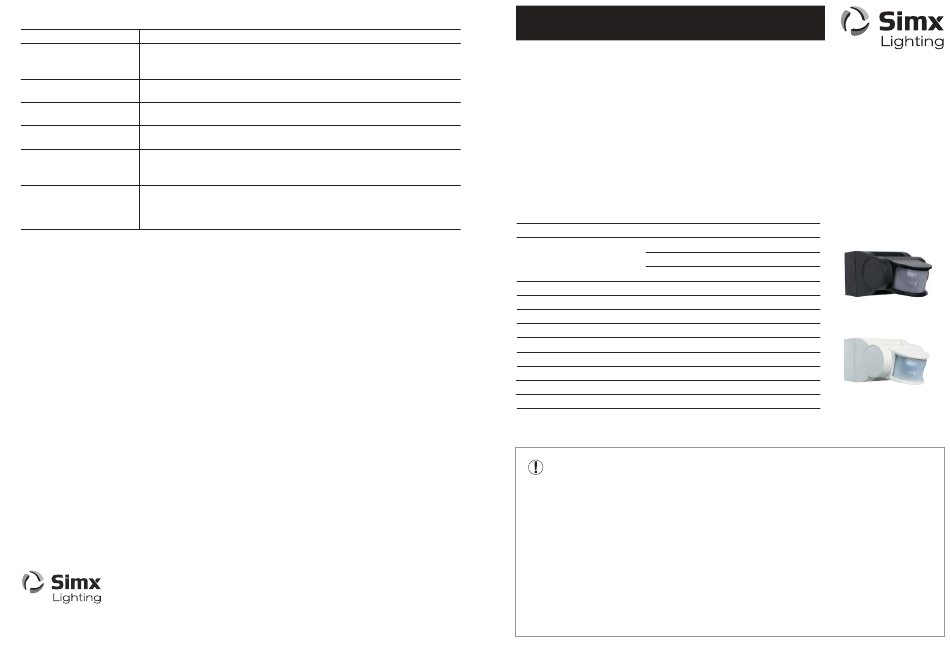

Simx Lighting LHT0119 BLACK Installation Instructions

TROUBLESHOOTING

PROBLEM SOLUTION
Lamp stays ON all the time Cover PIR lens with a thick cloth. If the light turns out, check detection area for
at night. heat or reflective source. If the light stays on, check wiring. Check that the unit
is not set to manual override.
PIR keeps activating for no Reset unit. Leave for a maximum of 5 minutes. If light activates, check area for
reason/at random false activation from heat or reflective source.
PIR sensor will not operate Check that the power is switched ON at the circuit breaker/ internal wall
at all. switch. Turn OFF the power to the unit and check the wiring connections.
The PIR sensor will not Check the lamp. If the lamp has failed, replace. Ensure that the lamp is seated
operate at night. correctly in the lampholder. Note: sensor will not detect through glass.
Unit activates during the day The level of ambient light in the area may be too bright to allow operation at the
current DUSK setting. At night, adjust the DUSK control slowly clockwise until
the lamp illuminates.
Detection range varies from Unit may be poorly located. Check "Before you start" section for tips.
day to day PIR sensors are influenced by weather changes and are more effective in colder
ambient temperatures. You may need to make seasonal adjustments to the
sensor aiming to ensure trouble-free operation all year round.

PRODUCT COMPLIANCES

Smart Sense PIR sensors comply with all applicable standards.

MANUFACTURERS EXTENDED WARRANTY

This product is guaranteed by SIMX Ltd and Ventair Pty Ltd for 3 years from the date of purchase against
faulty materials or workmanship which affects its designed ability to operate. During this period if the
product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same
item, or a similar one of higher specification.
ON CONDITION THAT:
• The buyer returns it to the seller from whom it was bought, freight paid.
• The product has been bought by the user (ie. a receipt/sales invoice is produced as proof of purchase).
• The product has not been misused or handled carelessly, installed in any way contrary to the installation
instructions, or installed in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration and/or delamination of paint or plastic, or any user
serviceable parts. It does not confer any rights other than those expressly set out above and does not
cover any claims for consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under either Australian, or New Zealand,
Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced
if the Goods fail to be of acceptable quality and the failure does not amount to a major failure.
Distributed in New Zealand by Simx Ltd
Ph: +64 9 259 1660 | Technical Support Ph: +64 9 259 1662
e: sales@simx.co.nz | www.simx.co.nz
Specifications are subject to change without notice
Distributed in Australia by Ventair Pty Ltd
4 Capital Place, Carrum Downs, 3201 VIC, AUSTRALIA.
Technical Support: 1300 665 926
e: info@ventair.com.au | www.ventair.com.au
PUB1622 2206

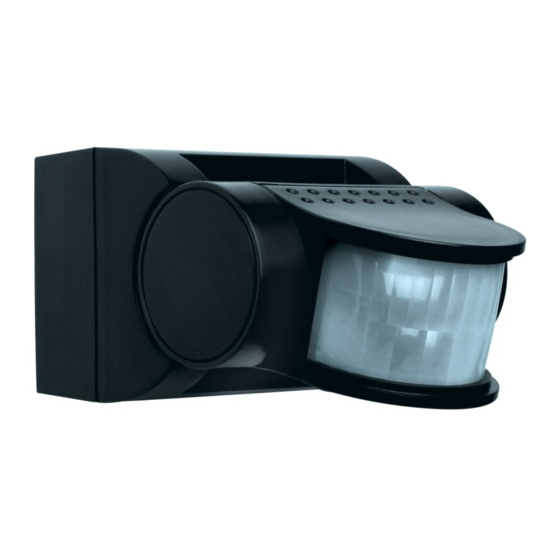

Installation INSTRUCTIONS
SMART SENSE
SINGLE PIR SENSOR
LHT0119 BLACK / LHT0120 WHITE
Thank you for purchasing the Simx Lighting Smart Sense PIR sensor.
This product is suitable for all exterior locations. It requires a 230V AC power supply to operate
and should be installed by a registered electrician.
Please read this manual before installation and retain for future reference.

TECHNICAL SPECIFICATIONS

Power Source 220-240V AC
Max Rated Load 2 0 0 0 W incandescent
(for connected light fittings)
500W fluorescent
400W LED (PF≥0.9) & 250W LED (PF<0.9)
Detection Range Up to 12m
Detection Angle 180º
Time On Adjustment 5 sec - 15 min
Dusk Level Adjustment Day & night or night only operation
IP Rating IP55
S a e f y t C a l s s I I
Mounting Under eaves or wall mount
Housing UV-stabilised polycarbonate
Warranty 3 years
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC, 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this sensor is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in
the circuit for the purpose of safe access for any cleaning, recalibration, or maintenance.
This sensor is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the product.
Any changes or modifications made or attempted to this product, without the prior written approval
of the manufacturer, will void any and all stated warranties.
