FEATURES
■
20MHz Bandwidth
■
75V/µs Slew Rate
Drives ±10V into 75Ω
■
■
5mA Quiescent Current
■
Drives Capacitive Loads > 1µF
■
Current and Thermal Limit
Operates from Single Supply ≥ 4.5V
■
■
Very Low Distortion Operation
■
Available in 8-Pin miniDIP, Plastic TO-220
and Tiny 3mm × 3mm × 0.75mm 8-Pin DFN
Packages
U
APPLICATIO S
■
Boost Op Amp Output
■
Isolate Capacitive Loads
■
Drive Long Cables
■
Audio Amplifiers
■
Video Amplifiers
■
Power Small Motors
■
Operational Power Supply
■
FET Driver

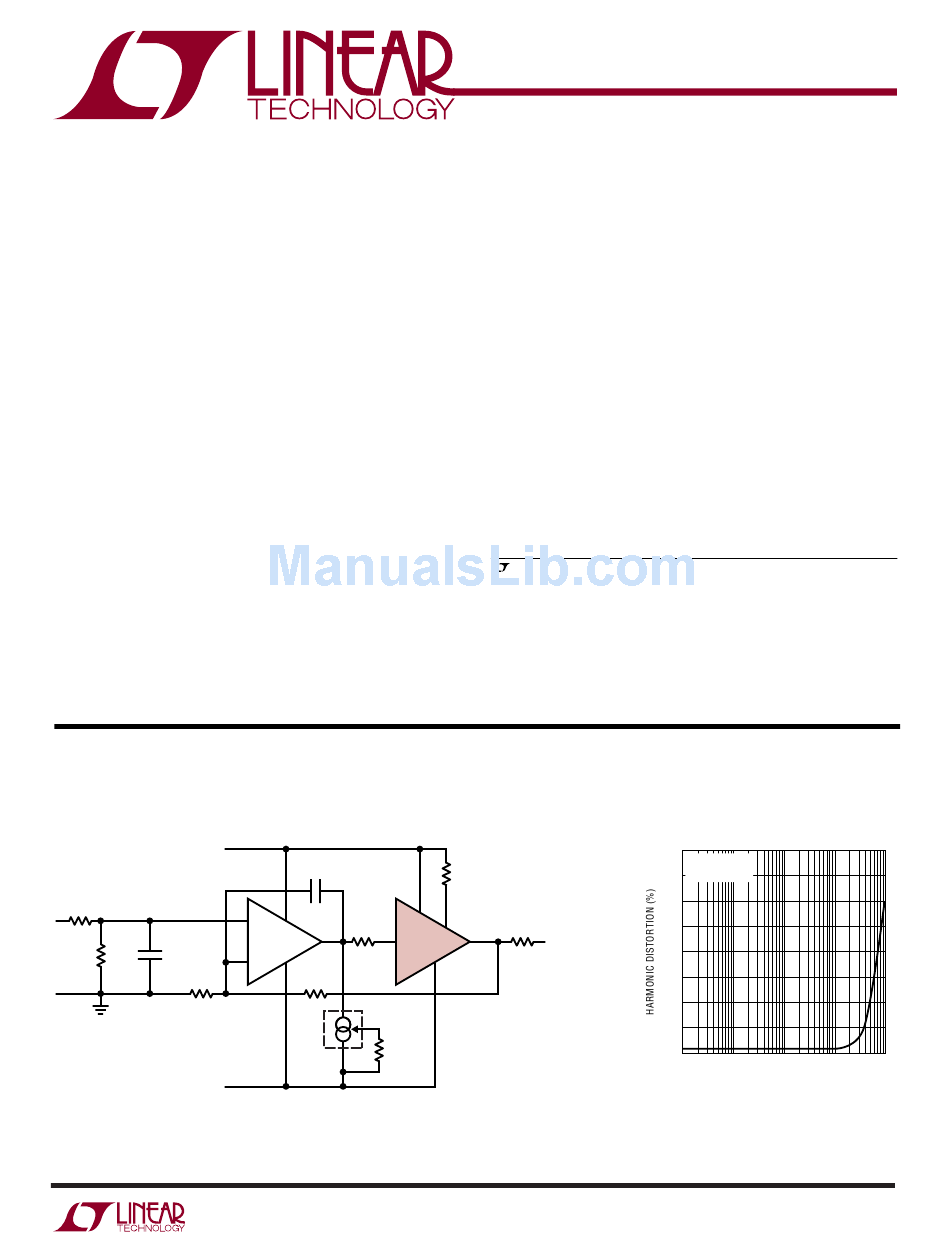

TYPICAL APPLICATIO
Very Low Distortion Buffered Preamplifier
+
V
18V
R1
1k
C1
R2
22pF
1M
R3
1k
NOTE 1: ALL RESISTORS 1% METAL FILM
NOTE 2: SUPPLIES WELL BYPASSED AND LOW Z
+
V
–18V
U
C2
22pF
3
7
+
R6
100Ω
6
IN
LT1056CN8
LT1010CT
2
–
4
R4
10k
+
V
LM334
R
SET
33.2Ω
O
–
I
= 2mA
V
SET
1%
Fast ±150mA Power Buffer
DESCRIPTIO
®
The LT
1010 is a fast, unity-gain buffer that can increase
the output capability of existing IC op amps by more than
an order of magnitude. This easy-to-use part makes fast
amplifiers less sensitive to capacitive loading and reduces
thermal feedback in precision DC amplifiers.
Designed to be incorporated within the feedback loop, the
buffer can isolate almost any reactive load. Speed can be
improved with a single external resistor. Internal operat-
ing currents are essentially unaffected by the supply
voltage range. Single supply operation is also practical.
This monolithic IC is supplied in 8-pin miniDIP, plastic
TO-220 and 8-pin DFN packages. The low thermal resis-
tance power package is an aid in reducing operating
junction temperatures.
, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
R7
50Ω
+
V
R8
BOOST
100Ω
OUT
OUTPUT
–
V
1010 TA01
LT1010
U
0.4
V
= 10V
OUT
P-P
R
= 400Ω
L
0.3
0.2
0.1
0
10
100
1k
FREQUENCY (Hz)
10k
100k
1010 TA02
1010fc
1
