Hydro Eco Tubs User Guide
Please take the time to read the following manual prior to installation or use
PREPARATION FOR USE
1
Position your Eco Tub on its pallet in the location
you intend for it to be used.
2
Remove the sections of flue from the underside of
the Eco Tub (as seen in Fig. 2).
3
Unscrew the pallet batons that connect the pallet to
the Eco Tub for transport (as seen in Fig. 3 – where
applicable).
4
Fit a standard 13amp plug and uncoil the wire –
ensuring that this is done to the plug manufacturer's
instructions.
5
Undertake a quick visual inspection to ensure
that the electrical sockets are in place following
transport – we recommend plugging your tub in at
this point and pressing both the LED light & Bubble
buttons (located on the side of the tub) to ensure that
they are both working. The LED lights can be seen
working from the underside of the tub and you will
be able to hear the Bubble System.
6
After unplugging the tub following the inspection,
gently lie the Eco Tub down (you may need
assistance for this). Ensure that the surface is
flat – see (Fig. 4 & 5).
7
Carefully slide out the pallet.
8
Carefully unpackage the Eco Tub – if using
a knife, take particular care to not scratch the
exterior or fibreglass of the Eco Tub.
9
If your Eco Tub comes with a fibreglass lid,
remove this now & place it in a location
where it will not be damaged – take care
when removing the lid to lift and not drag.
Dragging the lid off can damage the fibreglass
10 Remove the 90 degree boiler pipe which is
located in the wood burner.
11 Be sure to remove all packaging from inside the
wood burner.
12 Attach the 90 degree chimney section to the outlet
located by the wood burner – this is manufactured to
low tolerance so occasionally lubrication is required
using a small amount of washing up liquid.

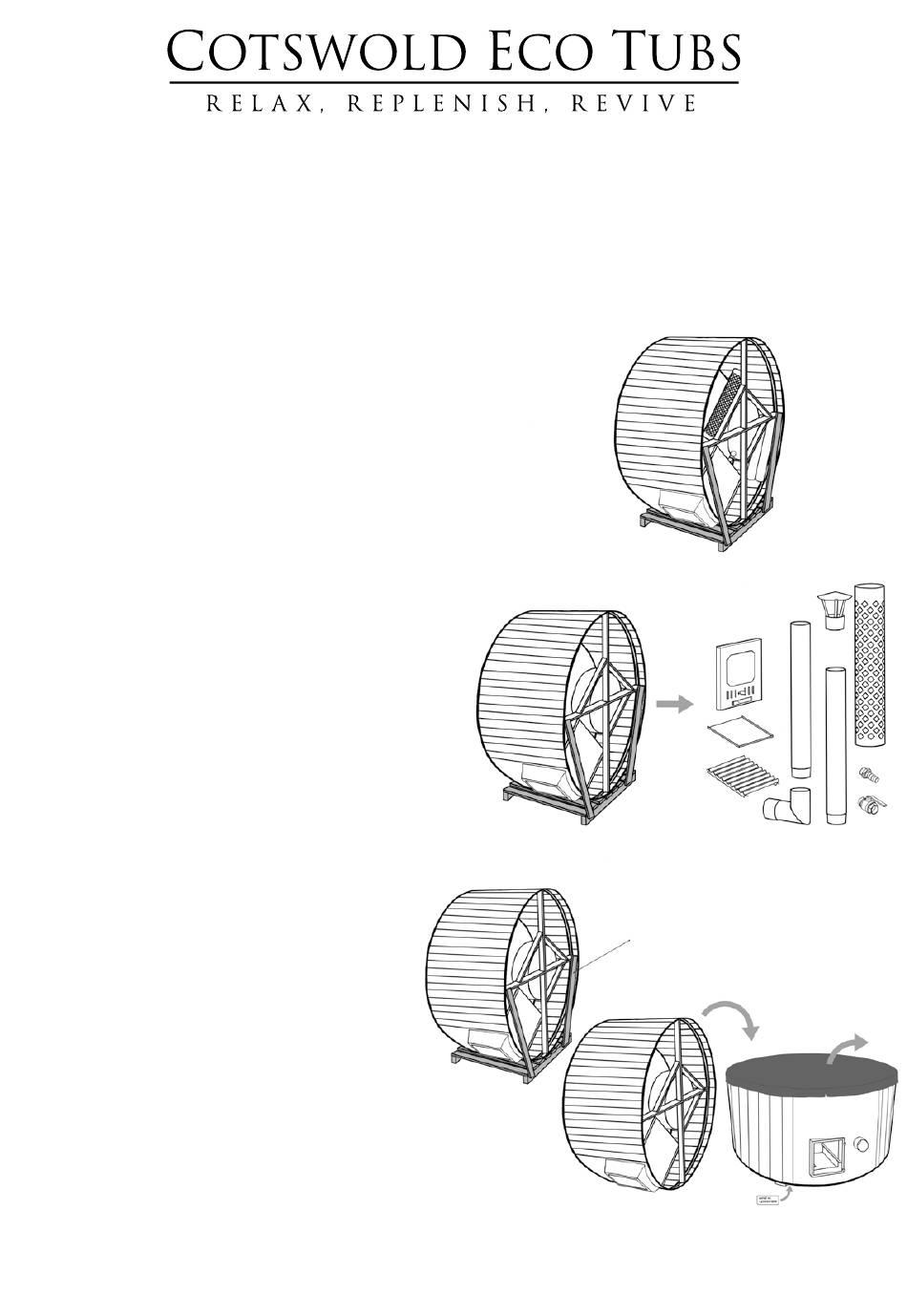

Fig. 1
Carefully remove
plastic wrap
Fig. 2
Take components out
Fig. 3
All drawings are for illustrative purposes only,
1
Carefully remove pallet
Turn carefully down
and remove cover
your product may vary
Advertisement
Related Manuals for COTSWOLD Hydro Eco Tub
Summary of Contents for COTSWOLD Hydro Eco Tub
- Page 1 Hydro Eco Tubs User Guide Please take the time to read the following manual prior to installation or use PREPARATION FOR USE Fig. 1 Carefully remove Position your Eco Tub on its pallet in the location plastic wrap you intend for it to be used. Remove the sections of flue from the underside of the Eco Tub (as seen in Fig.
- Page 2 Fig. 4 13 Tighten the two retaining bolts underneath the 90 degree Level hot tub flue section and ensure it is in a vertical position (see Fig. 5) 14 Remove the protection film from the 1st section of flue and place onto the 90 degree flue section.
- Page 3 In most cases a level stable base either the gravel or paving slabs is fine but please note the tub When draining your Hydro Eco Tub, please run the will weigh around 2 tonnes once full of water and people.
- Page 4 GENERAL INFORMATION ON HOW TO USE HOT TUBS HOT TUB HEATING IMPORTANT – the fiberglass hot tub heaters heating IMPORTANT – water from the hot tub can be drained only temperature can’t go higher than +55C° as higher when the heater is completely cooled down. Otherwise, temperatures can damage the fiberglass gel coating the heat will damage the hot tub and the heater itself.
