INSTALLATION INSTRUCTIONS
Model: INT1S1500W

FEATURES

- In-built On/Off button
- Wi-Fi connectivity (2.4GHz Wi-Fi only)
- Remote control via App on iOS or Android smart devices
- 7-day On/Off Timer
- To confirm function
- Suits control of most lamps and electric appliances
- Device firmware - wireless updates via App

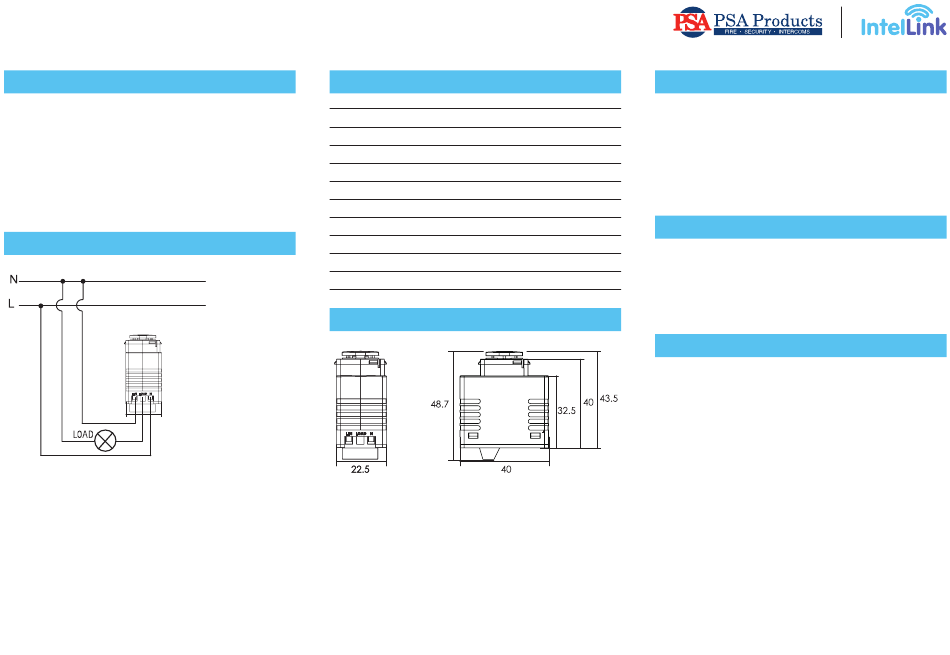

WIRING DIAGRAM
Cabling info:
Solid/stranded: 0.5-2.5mm²
Strip length: 6-7mm
WI-FI SWITCH

TECHNICAL DATA

Rated supply voltage
Rated Load (Resistive)
LED load
Motor Load (For exhaust fan only)
Wireless mode
Operating frequency
Max. communication distance
Dimensions
Weight
Operating temperature
DIMENSIONS (MM)

INSTALLATION

1. Disconnect power
220 - 240V~ 50/60Hz
2. Remove wall plate
2 - 1500W
3. Install the Wi-Fi Switch into the wall plate
2 - 750W
4. Connect the Switch as shown in wiring diagram
2 - 100W
5. Re-install the wall plate
6. Reconnect power
Wi-Fi
2.4GHz

OPERATING INSTRUCTIONS

20m
40 x 22.5 x 48.7mm
Normal Operation: Short press the Wi-Fi Switch once to turn the
31g
load ON or OFF.
-20~40ºC
To Factory Default the Switch: Press the On/Off button 9-times
quickly. The LED will start blinking rapidly, indicating it is ready to
pair with App (in EZ-Mode).

WARNING

* Turn off the 240VAC mains supply before installation.
* Do not install the Switch behind metal objects, such as
refrigerators, air- conditioners, etc., which will affect wireless
signal transmission.
* Using the Switch in an environment with elevated temperatures
may limit the maximum output power.
* Communication range will be greatly reduced by any obstacles
to Wi-Fi signals, eg. walls and building material.
