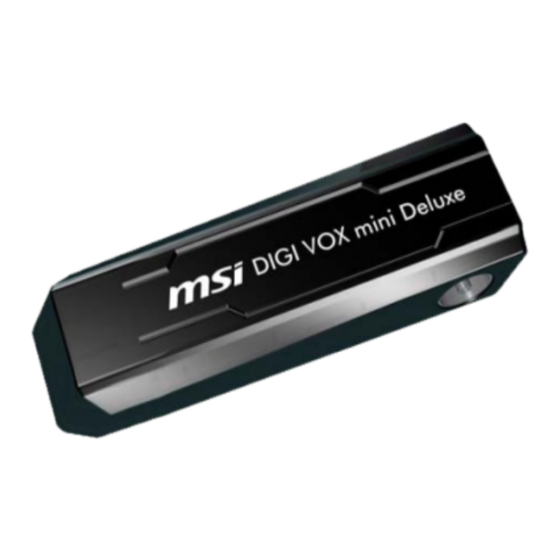

DIGI VOX mini Installation Manual
Chapter 1 : DIGI VOX mini Dongle Hardware Installation........................................................................ 3
1.1 Package Contents ............................................................................................................................... 3
1.2 System Requirements......................................................................................................................... 3
1.3 Hardware Installation........................................................................................................................ 3
Chapter 2 : DIGI VOX mini Drivers Setup ................................................................................................... 4
Chapter 3 : DVB-T PLUS Software Installation........................................................................................... 5
Chapter 4 : DVB-T PLUS Software Functions ............................................................................................. 7
Chapter 5: DTVR............................................................................................................................................. 8
5.1 System Setting and Channel Scan .................................................................................................... 8
5.2 Main Panel .......................................................................................................................................... 9
5.2.1 Information Window .............................................................................................................. 9
5.2.2 Basic Tools.............................................................................................................................. 10
5.2.3 Channel Tuning ..................................................................................................................... 10
5.2.4 Input Source .......................................................................................................................... 10
5.2.5 Volume Adjust ....................................................................................................................... 10
5.2.6 Record, Playback and TimeShifting.................................................................................... 11
5.3 Schedule Recording.......................................................................................................................... 13
5.3.1 Capture .................................................................................................................................. 13
5.3.2 Time option............................................................................................................................ 13
5.4 Setup Utility ...................................................................................................................................... 15
5.4.1 Channel Setup Properties..................................................................................................... 15
5.4.2 Capture Setup Properties ..................................................................................................... 15
5.4.3 Other Setup Properties ......................................................................................................... 16
5.5 Setup Utility for composite and S-Video ........................................................................................ 17
5.5.1 Capture Setup Function ....................................................................................................... 17
5.5.2 Video Setup properties.......................................................................................................... 17
5.5.3 Other Function ...................................................................................................................... 18
5.6 Channel Preview............................................................................................................................... 18
5.7 Snapshot............................................................................................................................................ 19
5.8 Sleeping Timer.................................................................................................................................. 19
5.9 iEPG .................................................................................................................................................. 19
5.10 Pop-Up Menu.................................................................................................................................. 20
Contents
-1-
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MSI DIGI VOX mini
Summary of Contents for MSI DIGI VOX mini
-
Page 1: Table Of Contents
DIGI VOX mini Installation Manual Chapter 1 : DIGI VOX mini Dongle Hardware Installation... 3 1.1 Package Contents ... 3 1.2 System Requirements... 3 1.3 Hardware Installation... 3 Chapter 2 : DIGI VOX mini Drivers Setup ... 4 Chapter 3 : DVB-T PLUS Software Installation... 5 Chapter 4 : DVB-T PLUS Software Functions ... - Page 2 5.11 Teletext... 21 Chapter 6 : MPEG Encoder ... 22 6.1 User Interface ... 22 6.2 Practice Streaming Video File Format Conversion... 22 Chapter 7 : MPEG Editor ... 25 7.1 Play List Editor ... 25 7.2 Display Panel ... 26 7.2.1 Original Clips Display Window ...
-
Page 3: Chapter 1 : Digi Vox Mini Dongle Hardware Installation
Chapter 1 : DIGI VOX mini Dongle Hardware Installation 1.1 Package Contents Unpack your DIGI VOX mini package and make sure that all items are included. The following items should be included in your package: MSI Digi VOX mini USB2.0 Software Pack CD Quick guide USB2.0 extension cable... -
Page 4: Chapter 2 : Digi Vox Mini Drivers Setup
Chapter 2 : DIGI VOX mini Drivers Setup Before installation, we recommend that you exit all background programs. These include applications such as anti-virus software and system monitoring applications. Once you finish the hardware installation, restart your system. “Windows Found New Hardware Wizard” will pop up. -
Page 5: Chapter 3 : Dvb-T Plus Software Installation
Chapter 3 : DVB-T PLUS Software Installation After the drivers are installed, the next step you need to do is to install “DVB-T PLUS”. Please follow the steps below to install it. 1. Select “DVB-T PLUS” to start installing the software. 2. - Page 6 5. When the message as the one on the left pops up, click “Finish” to end the installation.
-
Page 7: Chapter 4 : Dvb-T Plus Software Functions
Chapter 4 : DVB-T PLUS Software Functions When using DVB-T PLUS, There are four different functions to choose from. Picture below is an example of how the interface looks like and a short description of each function. DTVR : DTVR turns your PC into a full-featured video recorder. •... -
Page 8: Chapter 5: Dtvr
Chapter 5: DTVR DTVR is a powerful and easy-to-use TV application which includes feature-rich video/audio entertainment functions. DTVR provides a convenient way to watch and record digital terrestrial TV programs or video on your PC and also allows you to playback recorded TV or video files. You could also listen to digital radio broadcasts (NOT DAB) under radio mode if it is included in your model. -
Page 9: Main Panel
Note: Sometimes the signal strength will affect the scanning result. If you cannot scan enough channels, please check the terrestrial TV signal by moving your antenna around to find a better reception spot. 5.2 Main Panel Preview window size can be adjusted by mouse or double click to switch to full-screen. There are six major functions of DTVR. -
Page 10: Basic Tools
5.2.2 Basic Tools There are 9 sub functions, see following for icon definition. : Switch different video source : Scheduling : Setup : Channel preview : Snapshot : Sleeping timer setup : TV audio mode switching (Your channel must support multi sound.) : Launch IEPG function : Launch Teletext 5.2.3 Channel Tuning... -
Page 11: Record, Playback And Timeshifting
5.2.6 Record, Playback and TimeShifting Record Function Any current live video can be recorded by clicking the capture button, in popup menu. To stop recording, simply click the “Stop” button "Capture" choose in popup menu to stop current recording. Recorded files can be reviewed in the playback list "Stop"... - Page 12 Time-Shifting Function Time-Shifting can be done during live mode by clicking on control panel or choose "Time-Shifting" popup menu. In Time-Shifting mode, simply click on control panel or choose in popup menu "Play" to get back and watch the channel from where you left. Click on control panel or choose "Stop"...
-
Page 13: Schedule Recording
5.3 Schedule Recording To setup a schedule recording, click properties window. 5.3.1 Capture 5.3.2 Time option Current time: Shows the current time. Starting time: Date and time of the set schedule recording event. Duration: Time length of the set schedule recording event. Recording rule: Enter the recording rule for the schedule recording. - Page 14 Note: To enable this function, please first enable “Hibernate” function in the windows power management configuration. The “Today To-do List” frame shows all of the recording schedules set for today. If any recording schedule had failed, an error message will be created automatically into the “Log”...
-
Page 15: Setup Utility
5.4 Setup Utility 5.4.1 Channel Setup Properties The “Channel Setup” property page allows users to customize and configure TV channels and edit users’ favorite channels by grouping them. Signals from satellite dish can be scanned for channels automatically and users can label and identify their favorite channels, as well as include or exclude channels from the scanned channels list. -
Page 16: Other Setup Properties
5.4.3 Other Setup Properties CPU usage. Your display window will be smoother when you enable this function. Multi language option: To select the different language interface on line. Enable OSD: Enables OSD function. Set OSD display color: Set the On Screen Display’s font color. Preview Preview time interval: Setting the interval time. -
Page 17: Setup Utility For Composite And S-Video
5.5 Setup Utility for composite and S-Video 5.5.1 Capture Setup Function Capture audio device: You can select “Capture audio”, “Capture audio only, No Video” or “no audio”. If you select “Capture audio only, No Video”, you can capture the file as WAV or MP3 format. Audio Capture for analog input : Video live sound: External audio source input port. -
Page 18: Other Function
5.5.3 Other Function under DirectShow. If your VGA card supports hardware that can accelerate MPEG2 video playback, please enable this function for better video playback performance, and reduce the amount of CPU usage. Your display window will be smoother when you enable this function. Multi language option: To select the different language interface on line. -
Page 19: Snapshot
5.7 Snapshot Snapshots (still image capture) can be taken from current viewing window by clicking from the control panel or choose in popup menu. The Snapshot window will pop up when a snapshot is taken. "Snapshot" Here, users can view, save or delete images taken. Note: The captured images can be saved in either bitmap or JPEG file format when saving the file. -
Page 20: Pop-Up Menu
5.10 Pop-Up Menu When running DTVR, you can move the cursor onto the display window or control panel and right-click the mouse for the menu to pop-up. This menu will also appear when you press the The commands on this right-click menu are the same as those on the DTVR control panel, along with some extra options added. -
Page 21: Teletext
5.11 Teletext Opens a DVB Teletext file Saves the current Teletext file Copies text to the clipboard Go to a specified page manually Return to the home page. Prints the current Teletext file. (Note : You must connect a printer before using this function.) Start Decoding Next Page... -
Page 22: Chapter 6 : Mpeg Encoder
Chapter 6 : MPEG Encoder 6.1 User Interface Fig. 6.1 is an example of how the main panel looks like when executing MPEG Encoder: The main panel is composed of four segments. Refer to Fig. 6.1 Header Buttons Batch Process Display Window Progress Display Window Preview Display Window 6.2 Practice Streaming Video File Format Conversion... - Page 23 Fig. 6.3 To add a multimedia file to be transcoded, click the "+" or "Add" button. This will open the "Browse" dialog box. Browse to the directory/file wanted and click on "Open". (Another method of adding files to the “Batch Process Display Window” is to simply highlight a file, then drag and drop it into the Batch Process Display Window.) Refer to Fig.
- Page 24 To change a file's status between Waiting and Exclusion (and vice versa), double click on the file line. The Waiting state will change to an Exclusion state and be reported as "Skip". Similarly, a file with a "Skip" status when double-clicked, will change to "Waiting." Fig.
-
Page 25: Chapter 7 : Mpeg Editor
Chapter 7 : MPEG Editor Fig. 7.1 Shows how the “MPEG Editor” user interface looks like. Menu Section : file open, file/video clip delete, video property, change skin color, minimize, • maximize, close and help. Display panel : play original video clips, play edited video clips (preview), display saving progress •... -
Page 26: Display Panel
: Clip/File delete : Mpeg Properties Dialog 7.2 Display Panel Fig. 7.2 Delete clips registered in Original/Staging Clips. Actual file on a hard disk is deleted when "Delete File" is checked. Displays your input mpeg file properties -26-... -
Page 27: Original Clips Display Window
The very top of Fig. 7.2 displays the video files added to the play list. The four editing mode when the “Effect” is selected in Fig. 7.2 is the mode to choose when adding special effects to the editing clips. 7.2.1 Original Clips Display Window Displays videos of Original Clips. -
Page 28: Staging Clips
area. Drag and Drop video files to the Original Clips area. ii) How to view and manage video clips in the Original Clips area: To view a video clip in the Original Clips are, either double click on the video clip or drag and drop the video clip from the Original Clips area on to the Original Video Display window. -
Page 29: Video Frames Editing And Saving
Fig. 7.5 displays the list of the files chosen to be used for editing. 7.4.2. Video Frames Editing and Saving 7.4.2.1 Adding Video Clip Click to browse and select video clips to add to the original clips area. • Drag and drop video files to the original clips area. •... -
Page 30: Chapter 8 : Burn Dvd
Chapter 8 : Burn DVD 8.1 Adding Files Select format : DVD: For DVD. VCD: For Video CD. SVCD: For Super VCD. DATA: For multimedia data CD. This dialog box shows up when the is clicked. Video or photo files are displayed as thumb nails on the screen (As shown below) after being added. -
Page 31: Burning
8.2 Burning This button allows users to go back to the previous step and change selected files or selected format. Select DVD/CD burner to use. : Eject DVD/CD drive. : Erase all content on DVD/CD media. : Open option dialog box. NTSC, PAL, Both: Select video type. -
Page 32: Chapter 9 : Faq
Chapter 9 : FAQ FAQ 1 : How do I use the “Schedule Record in Power-Off mode (SRPO)” function? ANS: Before you use the power-off schedule recording function, please make sure your system can support hibernate function. Enter to the “Display Properties” and choose “Screen Saver”. -
Page 33: Faq 2 : How To Capture Video Clip In Mpeg4 Format
FAQ 2 : How to capture video clip in MPEG4 format? If you use other capture source such as composite or S-Video, you could record video clips in MPEG 4. (When you select DVB-T as the capture source, you can’t be able to capture video in MPEG 4 format.) Please follow the following steps to record files in MPEG 4 format.
