AMMA OT11
WEEKLY PROGRAMMING DIGITAL
CHRONOTHERMOSTAT WITH
REMOTE BOILER CONTROL
®
(OpenTherm
compatible) AND REMOTE
MANAGEMENT VIA GSM
21689_r03
APPLICATION

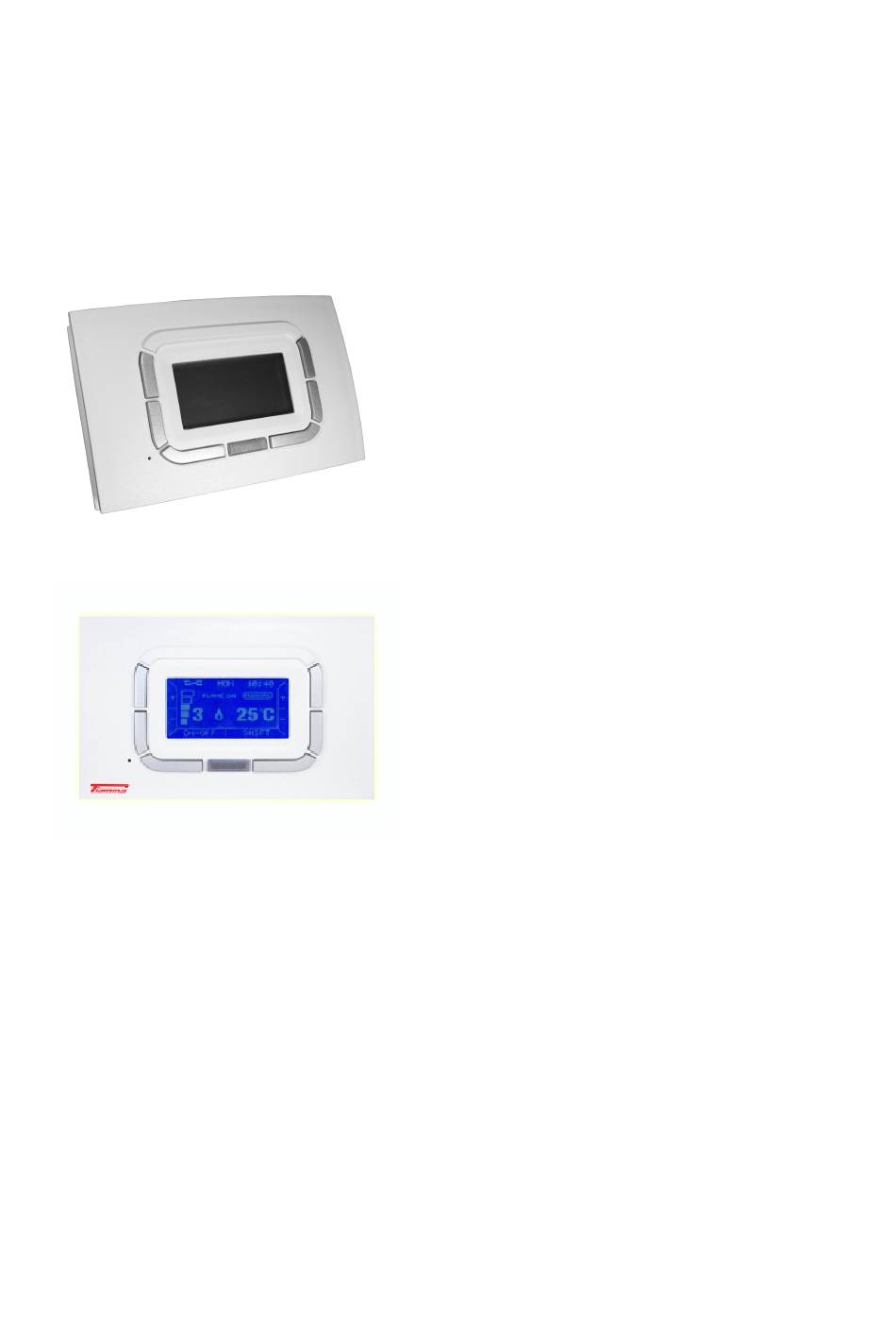

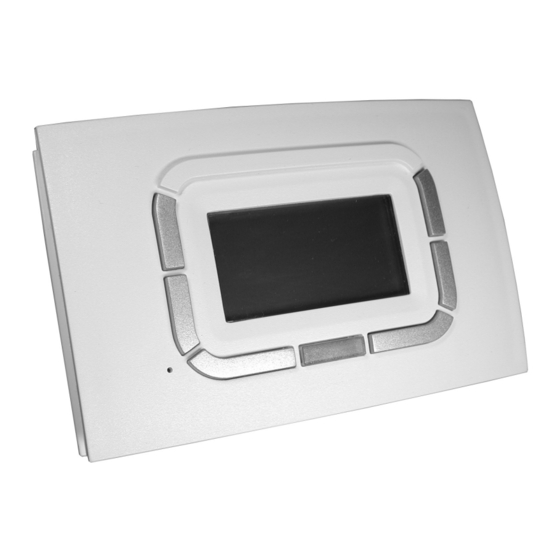

The digital chronothermostat FIAMMA OT11 series
integrates the functions of room temperature control and
remote control of home heating system in a single
interface, specially designed to make available all its
functionalities in intuitive mode.
Control of the heating system is complete, allowing to
manage advanced features such as solar thermal panels (if
supported by the thermoregulation board).
It is possible to choose beetween different modes of
thermoregulation, even using an external probe (connected
to the boiler) for climatic compensation.
Weekly programmation is particularly versatile because it
provides 4 temperature levels settable and no restriction
number of time slots per day, consisting of individual
intervals equal to a quarter of an hour and can be viewed
on the appropriate graph of the daily program.
The communication between the thermostat and the control
board of the boiler takes place by means of a two-wire
cable; the data are exchanged with the communication
protocol compatible OpenTherm ™ v3.0 Smart Power
Mode - Medium Power.
GENERAL TECHNICAL DATA
•
FIAMMA design
•
graphic LCD 128x64 pixel
•
backlight timer 20 seconds
•
LED for diagnostics/signaling
•
7 variable function keys
•
weekly programming
•
4 temperature levels (T0, T1, T2, T3)
•
resolution (0,5° C temperature set)
•
resolution (0,1° C temperature read)
•
minimum interval programming: 15 minutes
•
SELV insulation (Safety Extra Low Voltage)
•
Bipolar connection, non-polarized
•
OpenTherm™ protocol v3.0 Smart Power Mode –
Medium Power
•
serial interface RS-232 (5 wires) for external GSM
modem
TECHNICAL DATA OF THE CHRONOTHERMOSTAT
Operating temperature: -0° C +50° C
Humidity: 95% maximum at 40° C
Power
supply:
low
communication with the boiler control board
Protection degree: IP30
Dimensions: 140x90x32 mm
Compliance: directive 2004/108/CE (EMC), directive
2006/95/CE (LVD).
Temperature controls classes in accordance with the
delegated regulation (EU) No 811/2013:
Class 1, FIAMMA OT11 used in ON/OFF operation.
Class 5, FIAMMA OT11 used in modulating operation.
Class 6, FIAMMA OT11
compensation.
Weight: 170 g
voltage
(3V),
obtained
used with outside temperature
1/13
from
Advertisement
Summary of Contents for Fiamma OT11
- Page 1 Compliance: directive 2004/108/CE (EMC), directive 2006/95/CE (LVD). Temperature controls classes in accordance with the delegated regulation (EU) No 811/2013: Class 1, FIAMMA OT11 used in ON/OFF operation. Class 5, FIAMMA OT11 used in modulating operation. Class 6, FIAMMA OT11 used with outside temperature compensation.
- Page 2 It is possible to quickly browse through the pages to set, for example, environment temperature or the domestic hot water temperature. The first time or after a reset of the OT11, appears the language menu, as shown in the figure below. Pushing buttton OK, you confirm the selection.
- Page 3 Here there are the messages that may appear, alongside with their meanings: Starting… OT11 is in the process of connection to the boiler. OT11 correctly connected to the GSM modem. Modem connected Solare: standby Solar thermal system active and working correctly in the standby state.
- Page 4 In the same view to activate the “vacation mode” you can This option allows you to turn off the system (temperature enter the desired temperature, the temperature value can control environment and demand hot water operation are also be changed later when the “vacation mode” is active. disabled).
- Page 5 Below, the page shows the minimum and maximum limits set on the thermoregulation board. The temperature represents the maximum value that the heating set-point taken termoregulation proportional mode and compensation mode. For more details see the following paragraph, in particular the description of the submenu "Heating control".
- Page 6 MANAGEMENT CHRONOTHERMOSTAT SETTING MENU This section describes the submenu “SETTING MENU” This submenu allows you to manage temperature control environment, the weekly program, the time setting and the language choosing. At the top of the screen you select the day, and at the bottom of the screen displays the day program.
- Page 7 In the third step you select the ending time. The final time The last item, “Heating Control” of the "SETTING MENU", can not be less than initial time, selecting two coincident concerns the method used by the chrothermostat for values for initial time and final time, the daily schedule is controlling room temperature.
- Page 8 In this case you can set the coefficient of dispersion hc (heating curves) for external temperature compensation: the range is 0.5 to 3.5. The chronothermostat calculates the setpoint temperature of the circuit heating according to the formula: = ( T –...
- Page 9 MANAGEMENT SYSTEM DHW Flow Water flow rate in DHW circuit. (l/m) PARAMETERS MENU Fault flgs Fault flags The submenu "PARAMETERS MENU" allows you to Fault code OEM fault code remotely manage the boiler. TSP max Number of transparent-slave-parameters Pushing the ↓ and ↑ buttons, you scroll through the various items.
- Page 10 GSM modem; 000 to 254. The GSM modem must have its own power supply and must be connected to FIAMMA OT11 with a dedicated cable. The last items of the "PARAMETERS MENU", contained in To install the GSM...
- Page 11 WARNING! The GSM modem must be equipped with a SIM card active and able to send and receive SMS; before Displaying modem status inserting the SIM in the modem, you must disable any In the line on central text of LCD display you can check the PIN code request, status of the modem.
-
Page 12: Installation Instructions
Finally, conductors can be exchanged). It is recommended to use a please note that FIAMMA OT11 does not provide any twisted pair cable (example H03RR-F o H03VV-F) size information about the presence of batteries or their... - Page 13 FIAMMA OT11 is available in white, shown on page 1, or black, as the image. ATTENTION: The FIAMMA GIRO s r l takes no responsibility for any damage resulting from Customer's tampering with the device. FIAMMA GIRO s.r.l. Via P. Bettini, 31 370049 Villa Bartolomea (VR) - ITALY Tel.
