MINN KOTA MKR-27 Manual

Manual reset circuit breaker designed for marine environments. Compatible with all Minn Kota trolling motors.
Item /
Part # Description
Assembly
2378207
2 CIRCUIT BREAKER 60 AMP
✖
s 2377114 INSTRC-INSTALL
✖
This part is included in an assembly and cannot be ordered individually.
s
Not shown on Parts Diagram.
TOOLS AND RESOURCES REQUIRED
• Awl or similar marking tool
• Drill
• Drill Bit sized to installation hardware selected
MOUNTING CONSIDERATIONS
The MKR-27 60A Circuit Breaker is a manual reset breaker designed for marine environments. It is compatible with all Minn Kota trolling
motors rated for 12VDC, 24VDC, 36VDC, and 48VDC with a 60-amp rating. Additional circuit breaker features include:
• Compliant with US Coast Guard ignition protection
33 CFR § 183.410
• IP67 waterproof for use in fresh or salt water
• Stainless steel studs with included protective stud insulator
• Surface mount-protected studs
• Stud threads are ¼" – 28
• Manual reset
• Push-to-trip button feature
• Operating temperature -32C to 82C
• Storage temperature -34C to 149C
• Vibration tested
For safety and compliance reasons, we recommend that you follow
American Boat and Yacht Council (ABYC) standards when rigging
your circuit breaker. Altering boat wiring should be completed by
a qualified marine technician. The following specifications are
for general guidelines only. When mounting the Circuit Breaker,
please give consideration to the following:
a. Review and follow all of the information in the Battery and
Wiring Diagram section of the trolling motor Owner's Manual.
b. The diameter of the two mounting holes is 0.26 inches or
6.6cm. Select mounting hardware appropriate for the mounting
holes and the mounting location.
c. The minimum surface to mount the Circuit Breaker measures
2.91 inches by 1.9 inches.
1 | minnkotamotors.com
60A CIRCUIT BREAKER
Qty.
1
1
• Two screws for mounting
• Marine-grade sealant

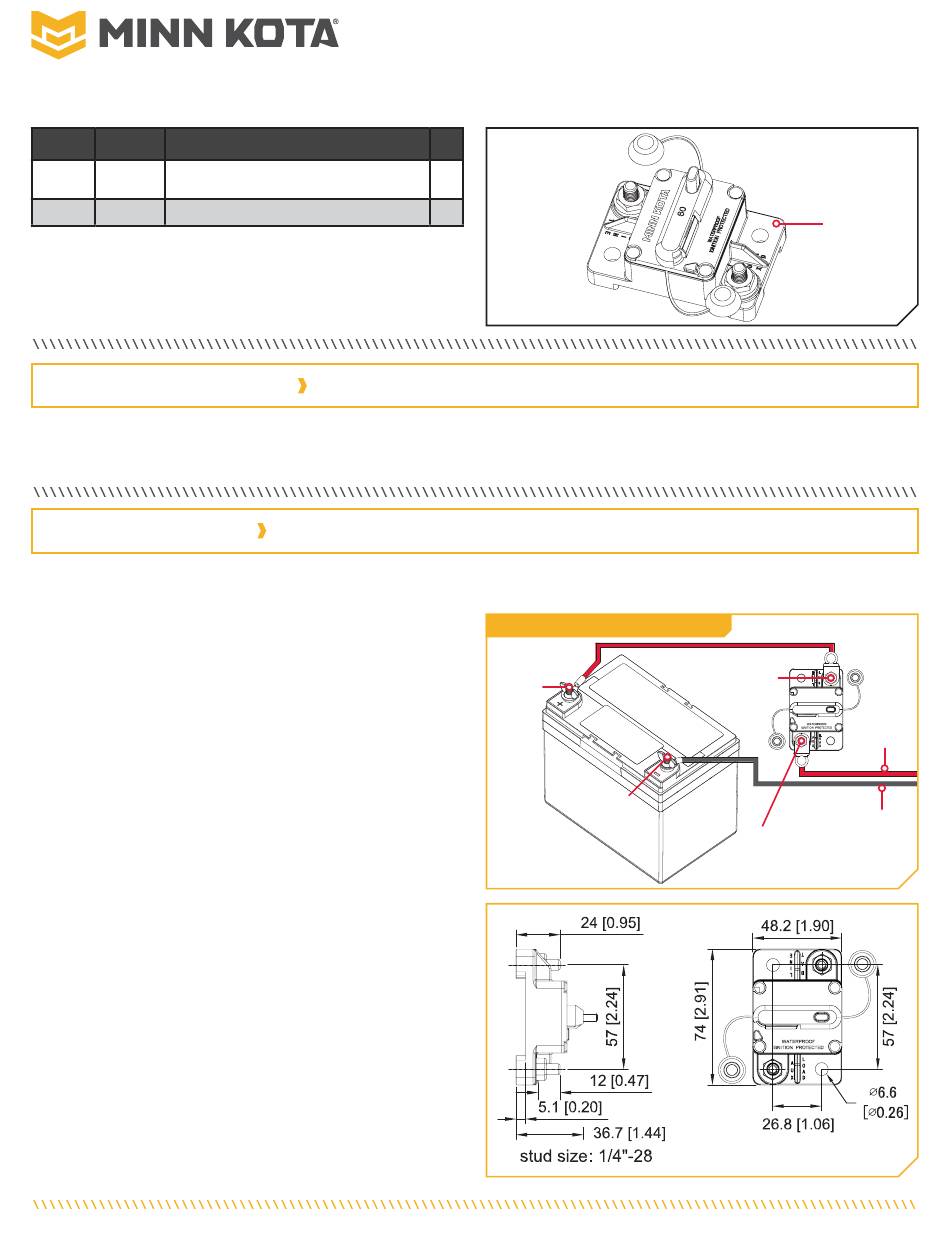

Complete Typical Installation
Battery Battery
Positive Positive
(+) (+)
Battery Battery
Negative Negative
(-) (-)
MKR-27
1865115
2
Circuit Circuit
Breaker Breaker
Trolling Trolling
(BAT LINE) (BAT LINE)
Positive Positive
(+) red (+) red
Trolling Trolling
Circuit Circuit Motor Motor
Breaker Breaker Negative Negative
(AUX LOAD) (AUX LOAD)
(-) black (-) black
©2022 Johnson Outdoors Marine Electronics, Inc.
Motor Motor
