ThermoControl Temperature Controller
Electronic temperature controller with timer (clock controller) for flush mounting and for smart
function (this function sets the time at which the comfort temperature should be reached)
Universal controller HRT 6015-50 for optional
use as
Floor temperature controller 10 to 60 °C,
Room temperature controller 5 to 30 °C
Room temperature controller 5 to 30 °C
with floor temperature monitoring
Room temperature controller 5 to 30 °C
Floor temperature controller 10 to 40 °C
The room temperature controllers can also be used as cooling controllers (see "Commissioning").
Smart operation is activated on all controller types.
Also available as master controller (option) for connecting clockless bi-metal and/or electrical controllers as
satellites.

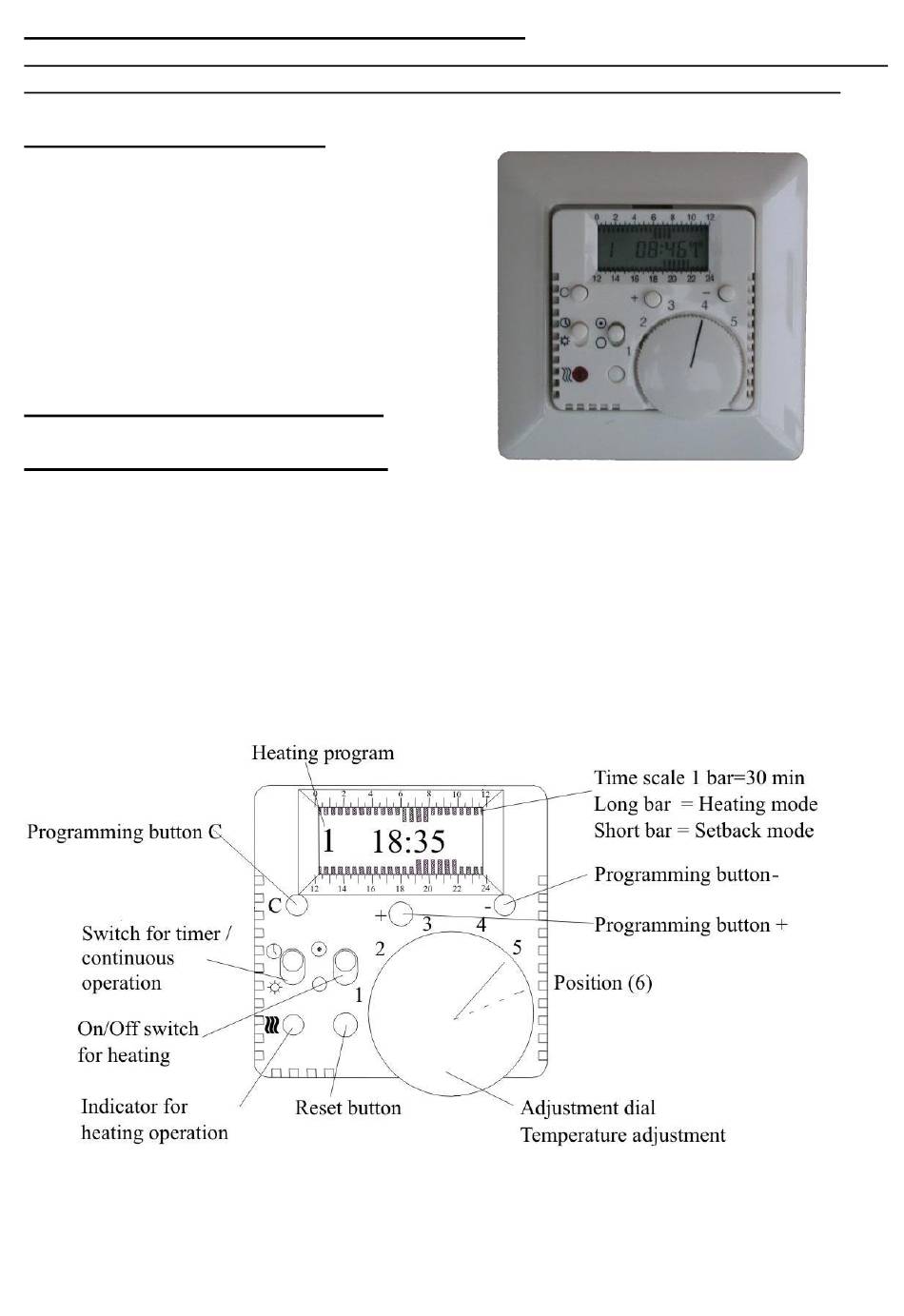

Device view
Figure 1
Advertisement
Summary of Contents for ThermoControl HRT 6015-50
- Page 1 Electronic temperature controller with timer (clock controller) for flush mounting and for smart function (this function sets the time at which the comfort temperature should be reached) Universal controller HRT 6015-50 for optional use as Floor temperature controller 10 to 60 °C, Room temperature controller 5 to 30 °C...
-
Page 2: Safety Instructions
Safety instructions Only authorised electricians are permitted to work on a 230 V mains voltage. The safety regulations of the VDE and the local electrical utility company must be observed The connection work stated in these instructions must not be carried out when the mains voltage is switched on. - Page 3 Installation instructions - Mounting options Installing the floor temperature sensor Install the floor sensor in a separate protective tube at the heating mat level centrally between the heating cables. ATTENTION: Apart from when only room temperature control is required, a floor temperature sensor must always be connected.
-
Page 4: Electrical Connection
Electrical connection Figure 3 and 4 230V~ mains supply L N PE N L 1 N L Heating Master output (optional) Floor temperature sensor 230V~ mains L N PE N L 1 N L Master output (optional) Floor temperature sensor Heating mat... - Page 5 Figure 5 Commissioning If a room temperature controller is to be used as a cooling controller, remove jumper 1 (figure 7) with a long nose pliers and fit it in the two upper sockets. To deactivate the smart function remove jumper 2 (figure 7) and fit it into the two sockets on the right.
- Page 6 Mon ... Fri Sat, Sun Type No. 1 06.00 ... 08.00 07.00 ... 09.00 Bath 19.00 ... 22.00 20.00 ... 23.00 room The display shows the current heating program and the current time. The bar corresponding to Heating program Mo-Fr this time flashes at the same time.
- Page 7 Programming Remember when programming that any changes are accepted automatically after 10 seconds! A change, for example between time and date is not possible in this time. The device automatically switches to operating status. Setting the time Note: The Time and date are automatically set and reset if a flush mounted radio clock is connected. Manual time and date setting is not necessary.
- Page 8 Programming Other heating programs Set the switch to the Clock position. Hold down the C button and select one of the four preset programs or the personal 'E' user program by pressing the + button several times as required. The program number is shown on the left of the display, and shows 'Sa, So' (= Saturday, Sunday) for weekend programs Mon ...
- Page 9 Programming Changing the setback temperature (default setting 15 °C) Set the switch to the Sun symbol (all bars are now long on the display). Set the new setback temperature required with the adjustment dial (see Figure 1). Hold down the + button and press the – button once. The new setback temperature is now saved and is shown briefly on the display for control purposes.
- Page 10 Changing the controller options of the universal controller with rotary switch Position 0 Floor temperature controller 10 to 60 °C In this position the room temperature controller is switched off Position 1 Room temperature controller 5 to 30 °C In this position the floor temperature controller is switched off Room temperature controller 5 to 30 °C with optional floor limit temperature Position 2...
- Page 11 Mains supply failure The heater switches off in the event of a mains supply failure and the upper bar of the display flashes. The device resumes its previous operation if the mains voltage is restored within approx. 1 to 1 ½ days. If the mains supply failure is longer, the time and weekday must be reset and the 'E' user program may have to be re-entered.
- Page 12 Reservation of right Subject to technical modifications. Compensation cannot be claimed on account of modifications, errors or print errors.
