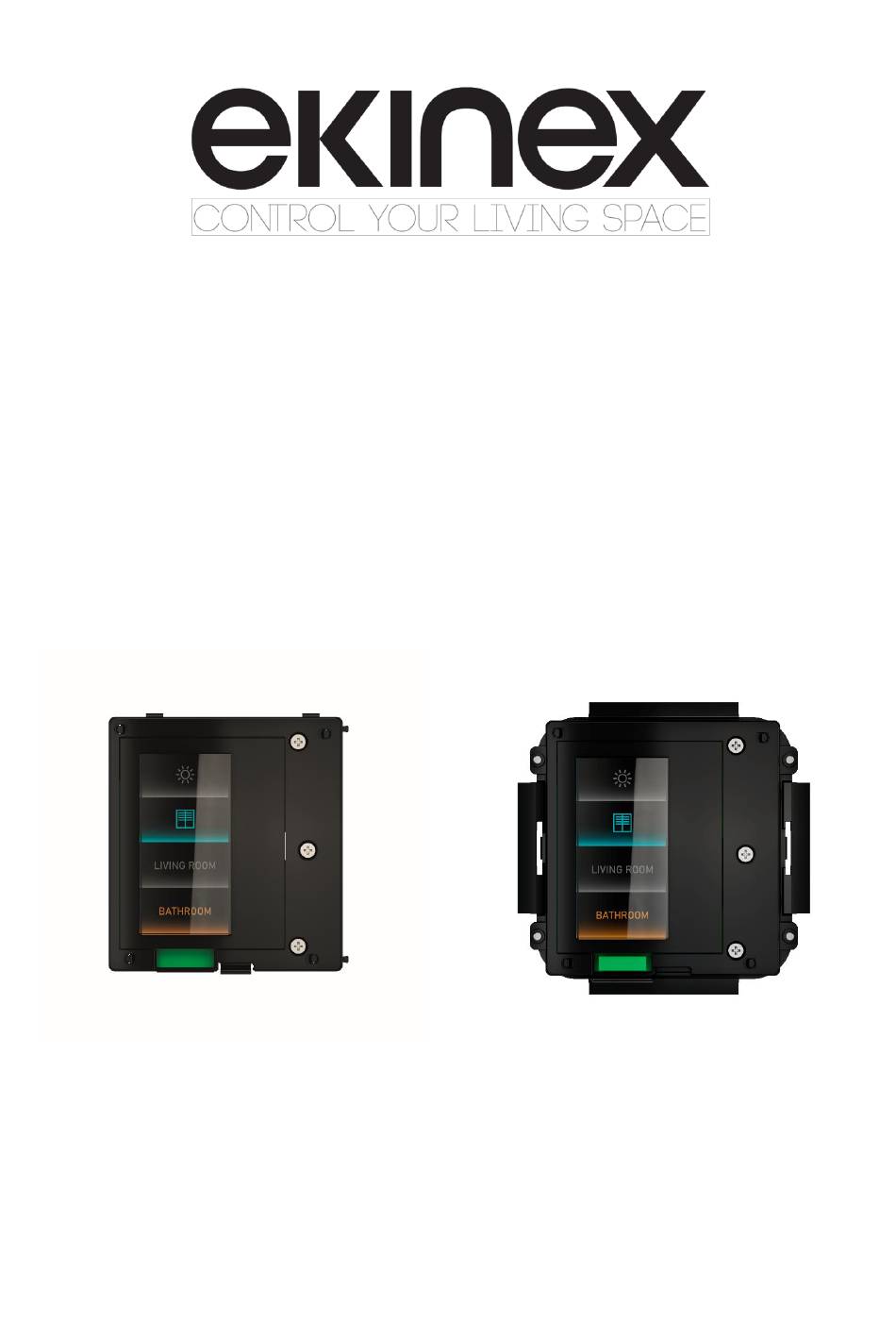

- Page 1 User Guide Ekinex SIGNUM EK-EV2-TP EK-EV2-TP-S...
-
Page 2: Table Of Contents
Source & playback control ......................21 Configuration pages ..........................21 4.5.1 System info / Program reset ......................21 5 Warnings ..............................22 6 Additional information ..........................22 Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 2... - Page 3 User Guide Ekinex SIGNUM – EK-EV2-TP Revision Modifications Author Date First draft G. Schiochet 20/09/2022 Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 3...
-
Page 4: Scope Of The Document

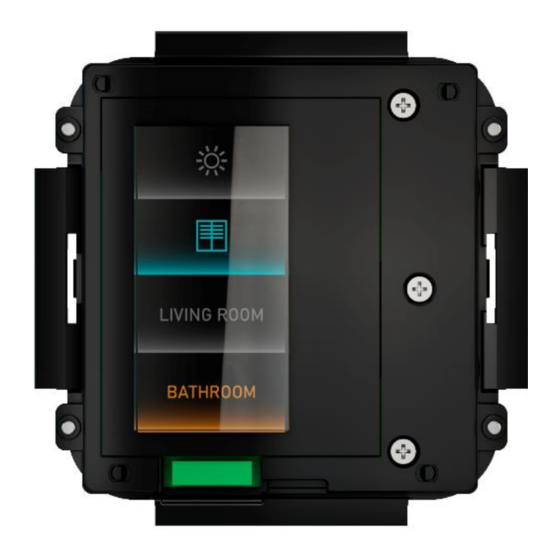

User Guide Ekinex SIGNUM – EK-EV2-TP 1 Scope of the document This user guide describes the main functions for configuring and customizing the Ekinex SIGNUM entrance panel, using the dedicated app. 2 Introduction 2.1 Overview SIGNUM is an evoluted wall-mounted KNX push button, with a touch screen instead of physical buttons. It can act as lighting and motorization control, scene trigger, thermostat, multiroom audio control and much more, depending on the configuration. -
Page 5: Functions
The climate controller integrated in SIGNUM can be configured in ETS and used without the need for additional licenses, as happens in the other EKINEX pushbutton product families. The license voucher is only required to unlock the thermostat page on the device display. -
Page 6: Requirements
App customisation 2.4.2 The EKINEX TOOL is available for free download on Google Play (for Android) and App Store (for Apple iOS). ● ANDROID: The application "Ekinex Tool" is available within the Google Play Store and to work properly requires that the device has Android version 6 or higher. -
Page 7: Customisation
3 Customisation 3.1 Preliminary configuration In order to allow the customization of a SIGNUM device with the EKINEX TOOL app, bluetooth communication must be enabled in the general parameters of the ETS library. To protect the device from unwanted access via the app, it is also possible to specify a PIN code in ETS, which will be requested every time the app connects to SIGNUM. -
Page 8: Connection
Ekinex SIGNUM – EK-EV2-TP When one or more EKINEX devices are configured, it can be later found in this main screen. To add a SIGNUM device, press the [+] button; the following screen allows you to choose the type of product to be customized: By selecting SIGNUM, the application prompts you to enter a name to be assigned to the device. - Page 9 User Guide Ekinex SIGNUM – EK-EV2-TP In case the EKINEX TOOL app has not been already installed, it can be downloaded from the app store by scanning the QR code presented on the display. When done, press the CONNECT button and remain in range of the device for the entire operation; the connection is expected to happen in a few seconds, necessary to load the actual configuration from the device.
-
Page 10: Themes
If the connection with the remote device is successful and if the PIN sequence is correct, the app will show the actual configuration of the device, and offer the possibility to customize it: 3.4 Themes SIGNUM offers two different graphic themes: Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 10... -
Page 11: Buttons Customisation
By pressing on the “gear” symbol in the upper left-hand corner, it is possible to set a list of general options, determining the behavior of the device. Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 11... - Page 12 Enable the haptic sensor installed under the display Proximity Sensibility Sensibility level of the proximity sensor. When the proximity sensor is enabled, the display automatically switches on when approaching the device. Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 12...
-
Page 13: Firmware Update
3.7 Firmware update If a firmware update for the SIGNUM device is available, a dedicated button appears in the DEVICE OPTIONS section of the app: Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 13... -
Page 14: Voucher Redeem
ACTIVATE NEW FUNCTIONS button. Scan the QR code or enter it manually, and press the PROCEED button; at that point an EKINEX TECH PORTAL portal window opens, in which you need to enter your login credentials. If you don't have an account yet, you can create it directly from this screen. - Page 15 Once redeemed, a voucher code can no longer be used on other devices. However, it is possible to apply it again to the same SIGNUM push-button panel (following, for example, a reset to the factory state). Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 15...
-
Page 16: Usage
System info, KNX programming and factory reset ● Customization with the mobile app The configuration pages can be reached with a horizontal swipe, starting indifferently from any other page: Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 16... -
Page 17: Button
Dimmer 4.2.2 button configured dimming control behaves following manner: ● Short press: toggles the light ON/OFF ● Long press: opens the dimming control modal page Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 17... -
Page 18: Shutters / Blinds
The aspect of the slider can vary according to the selected theme. Shutters / blinds 4.2.3 A button configured for shutters / blinds control behaves in the following manner: Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 18... -
Page 19: Thermostat Page
UP and DOWN buttons support the short & long press, according to the configuration in ETS ( useful e.g. for slats control). 4.3 Thermostat page Temperature control 4.3.1 The thermostat page offers the following information and action buttons: Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 19... -
Page 20: Chrono Mode
In case of fan coils, the ventilation speed can be controlled by pressing the FAN symbol in the upper-right part of the screen. Press the button repeatedly to set a specific speed and/or to set the ventilation to AUTO mode. Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 20... -
Page 21: Multi-Room Audio Page
By pressing the FACTORY RESET for at least 5 seconds, the device is restored to the initial state; the physical address and all the settings go lost after this operation. Revision 1.0 – Updated 20/09/2022 GUEKEV2TP_EN © EKINEX S.p.A. –Tutti I diritti riservati Pagina 21... -
Page 22: Warnings
Defective ekinex® KNX devices to be returned to the manufacturer must be sent to the following address: EKINEX S.p.A. - Via Novara 37, I-28010 Vaprio d’Agogna (NO) Italy.
