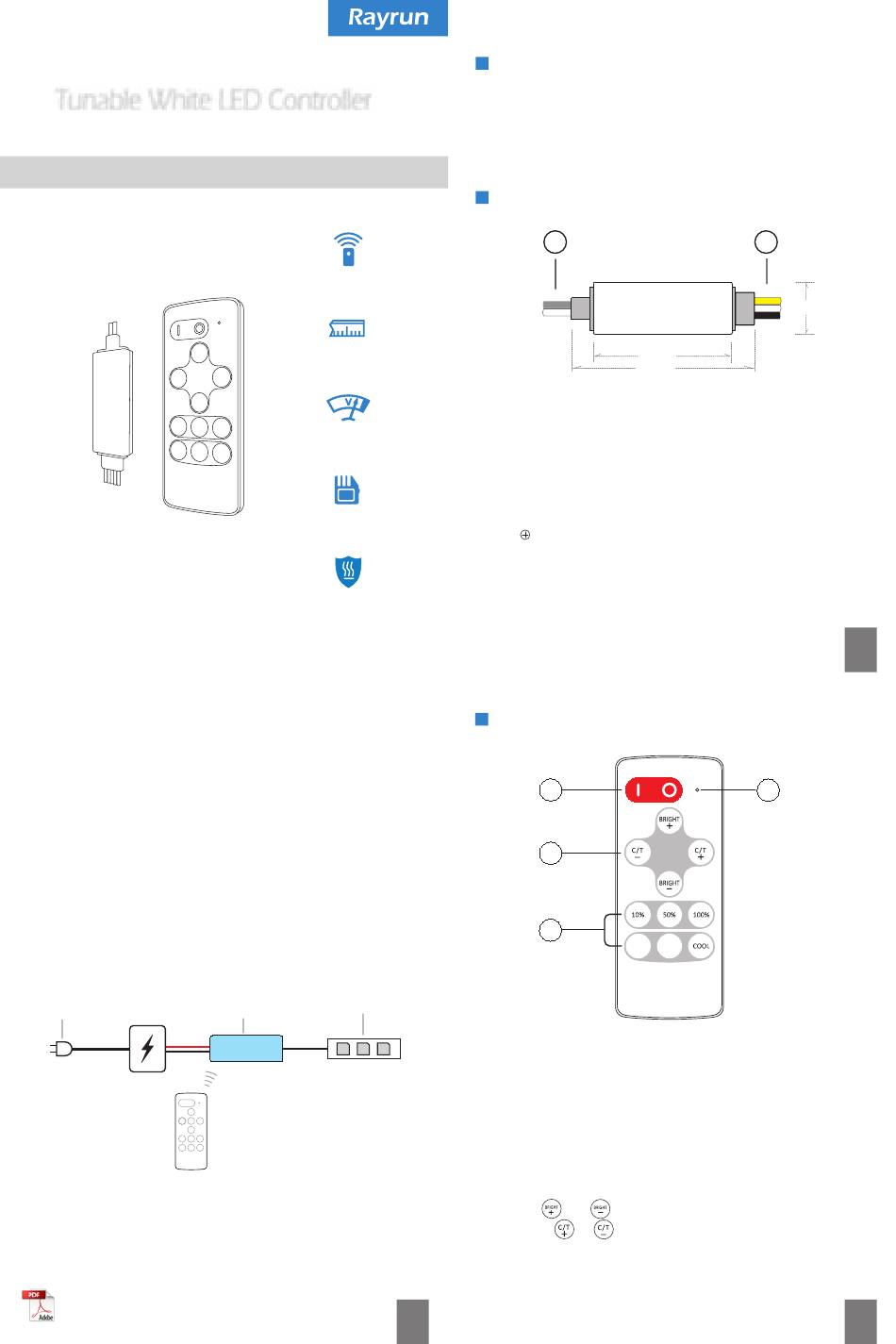

Advanced RF Remote
Tunable White LED Controller
Model: T120(-H)
according polarity. Please make sure the LED rated voltage is
same as the power supply and the maximum load current is
below the controller rated current.
CAUTION! The controller might be permanently
damaged if output cables short circuit. Please ensure the
cables are well insulated to each other.
3. Wiring diagram
Please connect the controller output to LED loads and
power supply to the controller power input. The output
voltage of power supply must be same as the LED load's
rated voltage. Check all cables to be well connected and
insulated before power on.
To 110/230
5-24V DC output
AC power
Power supply
5-24V DC
Wireless Remote
Ultra Compact
Wide Voltage Range
Memory Function
T120 LED
LED Loads
Controller
5-24V Driving
LED Controller
Remote
Controller
Introduction

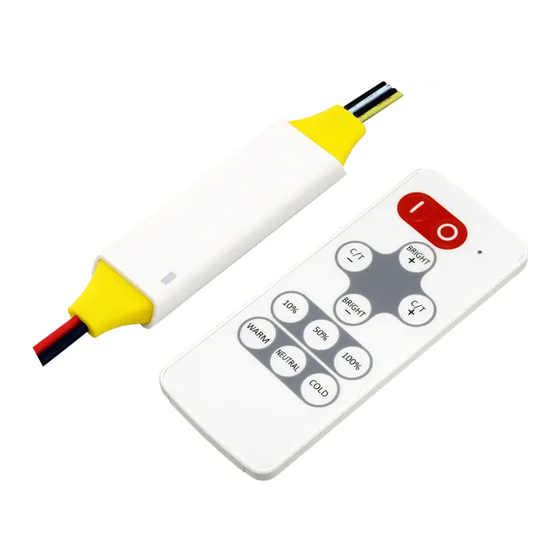

T120 tunable white LED controller is designed to drive
constant voltage LED products with common anode
connection in voltage range of DC5-24V. The receiver works
with the remote controller, user can setup LED brightness and
white color temperature via the remote controller.
Receiver & wiring
1
1. Power supply input
The controller supply voltage range is from DC 5V to 24V.
Please refer to the print on the controller for cable polarity.
The output voltage is at the same level as the power voltage,
please make sure the power supply voltage is correct and the
power wattage is capable for the load wattage. Please be
noted the positive power cable is directly connected to the
output cable inside the controller.
2. LED output
Connect to LED loads. Please refer to the print on the
controller for cable polarity and connect LED load with
Remote controller function
4
5
6
4. Turn ON / OFF
Press 'I' key to turn on controller or press 'O' key to turn
off. The controller will memorize the on/off status and will
restore to the previous status on the next power on. Please
use remote controller to turn on the unit if it was switched to
off status before power cut.
5. Brightness and color temperature adjust
Press
and
press these
down.
2
38mm
50mm
WARM
NEUTRAL
keys to adjust brightness up and down,
or
key to adjust color temperature up and
2
15mm
* H version picture
1
7
3
Advertisement
Table of Contents
Summary of Contents for Rayrun T120
- Page 1 Introduction Advanced RF Remote Tunable White LED Controller T120 tunable white LED controller is designed to drive constant voltage LED products with common anode connection in voltage range of DC5-24V. The receiver works with the remote controller, user can setup LED brightness and white color temperature via the remote controller.
- Page 2 10. Keep one remote and forget others 6. Brightness & color temperature shortcut In some cases, one receiver might be paired with several Press the key with relative printing to jump to specified remote controllers but extra remote controllers are no brightness or color temperature setting.
- Page 3 简介 RF⽆线遥控 冷暖⽩LED控制器 T120冷暖⽩LED控制器⽤来驱动电压范围为5V到 24V的LED灯带或LED模块等恒压LED灯具。 ⽤⼾可以通 过卡⽚式射频控制器来调节LED灯具的亮度和冷暖⽩ ⾊温。 控制器需要直流电源供电， 并根据接收到的遥控 型号:T120 （-H） 器指令驱动LED灯具， 实现亮度和冷暖⽩⾊温的调节功 能。 主机和接线 无线遥控 小尺寸 15mm 38mm * -H版本图片 50mm 宽压输出 1.电源输⼊ 控制器可接受电压为5V到24V的直流电源供电。 请按 照控制器上标明的电源极性进⾏连接。 控制器的输出电 记忆功能 平与电源输⼊电压相同， 请确保LED灯具额定电压与电 源相同， 且电源的功率满⾜控制器和灯具的需求。 过热保护 功能 2.LED输出 连接LED灯具。 请参考控制器上标明的电缆极性， 并...
- Page 4 6.亮度与⾊温快捷键 10.保留当前遥控器并清除其他遥控器 按下对应的快捷键可以跳转到对应的亮度和⾊温。 在控制器已与多个遥控器配对， ⽽仅想保留当前遥 控器的情况下， 可以将正在使⽤的遥控器与控制器再进 7.遥控器指⽰灯 ⾏⼀次配对操作， 此后控制器将清除其他已配对的遥控 按下遥控器按键时， 该指⽰灯会快速闪烁。 如果指⽰ 器⽽仅保留当前使⽤的遥控器。 灯慢闪， 则说明遥控器电池电量已耗尽， 请更换遥控器 过热保护 电池 （CR2032型纽扣电池） 。 操作⽅法 本机具有过热保护功能， 可防⽌控制器因负载过重 引起异常发热⽽导致损坏。 过热保护时控制器将关断输 8.使⽤遥控器 出， 当温度下降到安全范围时， 将尝试恢复正常⼯作。 过 使⽤前请拔出遥控器电池绝缘⽚。 RF⽆线遥控信号 热保护功能仅能在⼀定程度上防⽌控制器损坏， 为确保 可以穿过⼀定的⾮⾦属屏障， 为了保证控制器的接收效 安全， 请勿将控制器输出过载或短路。 果， 请勿将控制器安装在有⼤⾯积⾦属遮挡的位置。 9.与新遥控器配对...
