Summary of Contents for CISA ALLEGION eFAST MORTICE

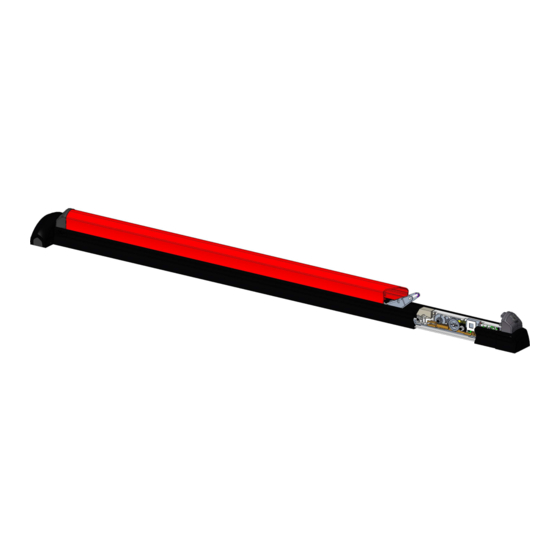

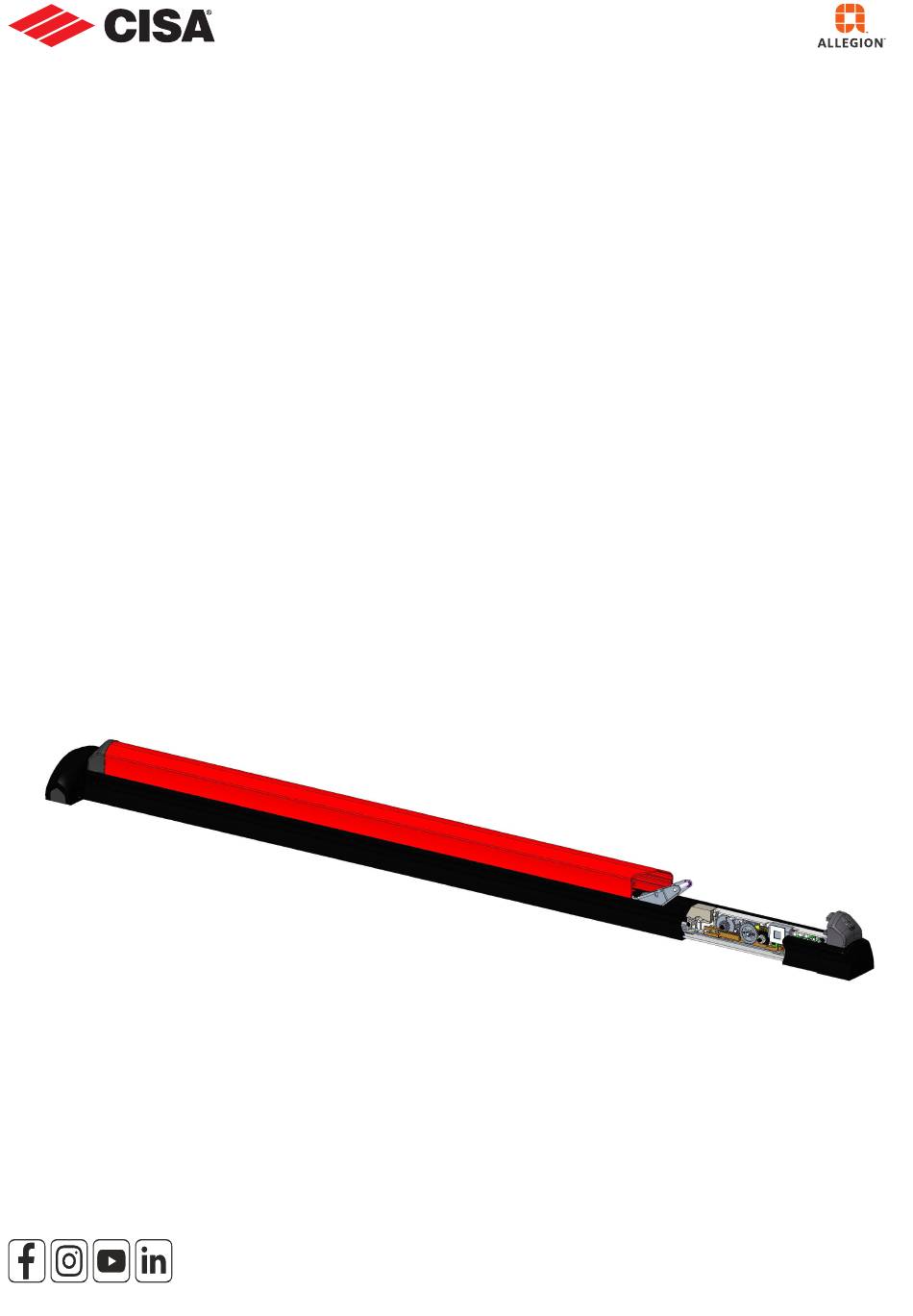

- Page 1 Supplementary installation and user manual for the “eFAST MORTICE” electric accessory codes 1.59751.00.0, 1.57975.10.1 cisa.com allegion.com...
-
Page 2: General Description
The automatic locking time can be set for up to 180 seconds by connecting to a PC using the programming cable (accessory item 1.07030.41.0). If the CISA motor is fitted with a timer, the hold open function can be activated at pre-defined times of the day. INSTALLATION... -
Page 3: Operation
INTERFACING FOR PANIC EXIT DEVICE STATUS See the eFAST MORTICE panic exit device manual Connect devices with a maximum current absorption of 0.5A and a maximum voltage of 60V. CISA declines all responsibility for the compliance of third-party devices used It is possible to connect the 12V lights (see the accessories) directly to the lock power supply. - Page 4 A programming cable (accessory 1.07030.41.0) can be used to set the opening time and the volume of the sound signals, control the number of openings and upgrade the lock software. Only authorised CISA technical staff and locksmiths should programme the motor and use the programming software. Procedure: 1 Request access to the “CisaMotorApp” programme on the CISA website (https://www.cisa.com/CISAmotor); 2 Connect the cables as shown in the diagram below; I = 2A 3 Power up the lock;...
- Page 5 - Input: 110÷240V 50/60Hz 0.7A - Output: 12V 2.5A Class 2 output - Certified UL Listed About Allegion Allegion (NYSE: ALLE) is a global pioneer in seamless access, with leading brands like CISA , Interflex , LCN , Schlage , SimonsVoss ®...
