Summary of Contents for Airvana AV600APH

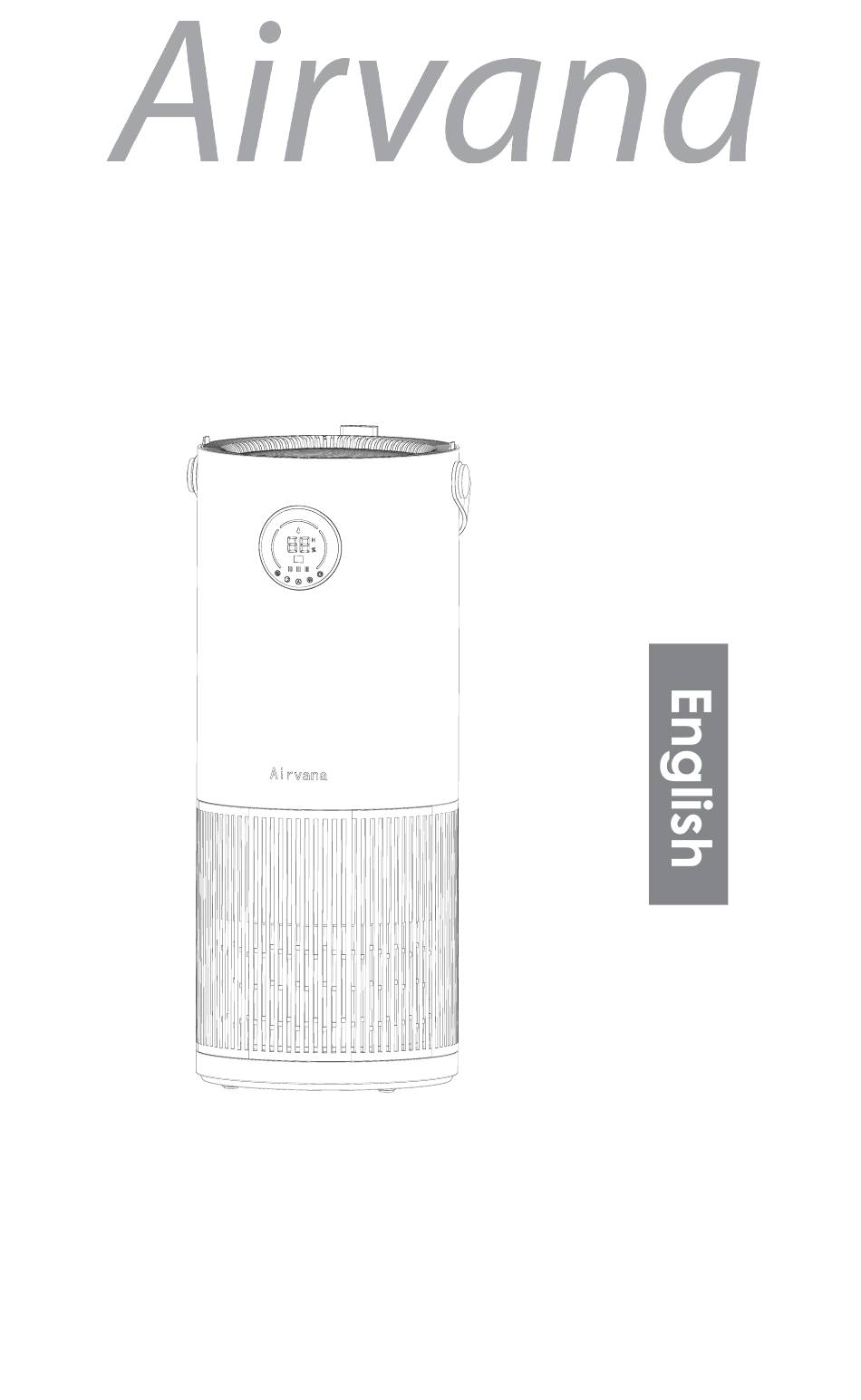

- Page 1 Air Purifier & Humidifier Owner’s Manual Models: AV600APH AV600APH-B AV600APH-G AV600APH-SG AV600APH-W Form #AV600APH 20220426 ©2022 Registered Trademark/TM Trademark of Airvana Manufactured exclusively for Airvana All rights reserved...
-
Page 2: Table Of Contents
Table of Contents At A Glance Safety Warnings........Using Your Product Initial Set Up........... Operation..........Control Panel........Display Screen........Remote Control........Maintenance Filter Replacement....... Cleaning the Synthetic Wick....Cleaning the Unit........Humidifier Assistance Troubleshooting........Filter/Wick Ordering......Technical Support......... Warranty 2-Year Guarantee........ -
Page 3: Safety Warnings
Safety Warnings Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. - Page 4 Safety Warnings READ AND SAVE THESE INSTRUCTIONS! Important Safety Instructions: Read all instructions before using this product ● This product may not work properly on an uneven surface. ● ALWAYS place it on a firm, level, and water resistant surface. ●...
- Page 5 ● DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit, doing so will void your warranty. If you need any assistance with setup, operation, or parts for your new Airvana product, please call us. Our technical support staff is ready to help! 888-704-2112 USA/Canada: Email: info@airvanaair.com...
-
Page 6: Initial Set Up
Initial Set Up Remove the product from packaging and place on a sturdy, flat surface. Unravel and straighten the cord before use. Remove the top cover from the unit. Use a pitcher to add fresh, clean tap water to tank. DO NOT overfill. -
Page 7: Operation
Operation Power ON: Follow the initial setup instructions. Plug product into wall outlet. On product, press power switch to ON. Product will beep and light up as indication that it is working. Current humidity will automatically display. Power OFF: Press power switch to OFF. Empty water tank. Refill Water Tank: See initial setup for instructions on refilling water tank. -
Page 8: Control Panel
Control Panel FIGURE 3 On/Off: Press button power humidifier off. Speed/Sleep: By default, the machine will start running on low speed. Press the button once to run on medium speed, twice for high speed and a third time for sleep mode. (FIGURE 4) The display screen will dim and the Sleep icon will appear. -
Page 9: Display Screen
Display Screen Auto: Press button to have the unit work in Auto mode. The unit’s running speed will be based on the room’s humidity. Humidity below 40% will light up RED on the display screen and the unit will run on high speed. Humidity between 41-69% will light up GREEN on the display screen and the unit will run on medium speed. -
Page 10: Remote Control
Remote Control Using the Remote: Your remote comes with a battery installed and does not need to be programmed. Before using your remote for the first time, you must take out the pull tab. To use remote, make sure to point it at the front of the unit. - Page 11 Remote Control Replacing the Remote Battery: FIGURE 6 It is recommended to replace the battery when the product takes a long time to respond or stops responding when the buttons are pressed. Turn over remote control. Press the tab toward the right and pull.
-
Page 12: Filter Replacement
Filter Maintenance We recommend periodically checking and replacing filters for optimal performance. Under normal conditions of continuous use the pre-filter should be replaced every 3 months (approximately 2,160 hours) and the HEPA filter should be replaced every 6 months (approximately 4,320 hours). This estimate is only a guide. Depending on air quality and environmental factors, filters may need to be replaced more regularly. -
Page 13: Cleaning The Synthetic Wick
Cleanable Wick We recommend periodically checking and cleaning your synthetic wick for optimal performance. Under normal water conditions of continuous use the wick should be cleaned every 1-3 months. This estimate is only a guide. Depending on your water quality and environmental factors, the wick may need to be cleaned more regularly. -
Page 14: Cleaning The Unit
Maintenance Note: ALWAYS unplug the product from electrical outlet before cleaning. NEVER allow water to sit in water tank when not in use. Note: Hard water can cause calcium and magnesium to build up in a "white powder" on base of unit, transducer and inner surface of water tank. -
Page 15: Troubleshooting
Troubleshooting Problem: Excessive noise Solution: The water tank is not attached correctly. Properly insert water tank to base of unit. The product is on an unstable surface. Place product on a sturdy, flat surface. The water tank does not have enough water. Fill water tank with water. -
Page 16: Filter/Wick Ordering
AV600APH Synthetic Wick AV-SW600 Customer Support If you need any assistance with setup, operation, or parts for your new Airvana® Humidifier, please call us. Our technical support staff is ready to help! 888-704-2112 USA/Canada: Email: info@airvanaair.com Hours of operation are from 8:00 AM to 6:00 PM EST. -
Page 17: Warranty
Warranty Airvana® makes the following warranty to the original residential user or consumer purchaser of the air purifier/humidifier: If any part of the product fails during the first two (2) years from the date of purchase due to a defect in material or workmanship, we will provide a replacement part free of charge. - Page 18 Warranty IN NO EVENT SHALL AIRVANA COMPANY BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT. YOUR SOLE REMEDY WILL BE REPAIR OR REPLACEMENT AS PROVIDED ABOVE. SOME AMERICAN STATES AND CANADIAN PROVINCES DO NOT ALLOW: LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS;...
Need help?
Do you have a question about the AV600APH and is the answer not in the manual?
Questions and answers

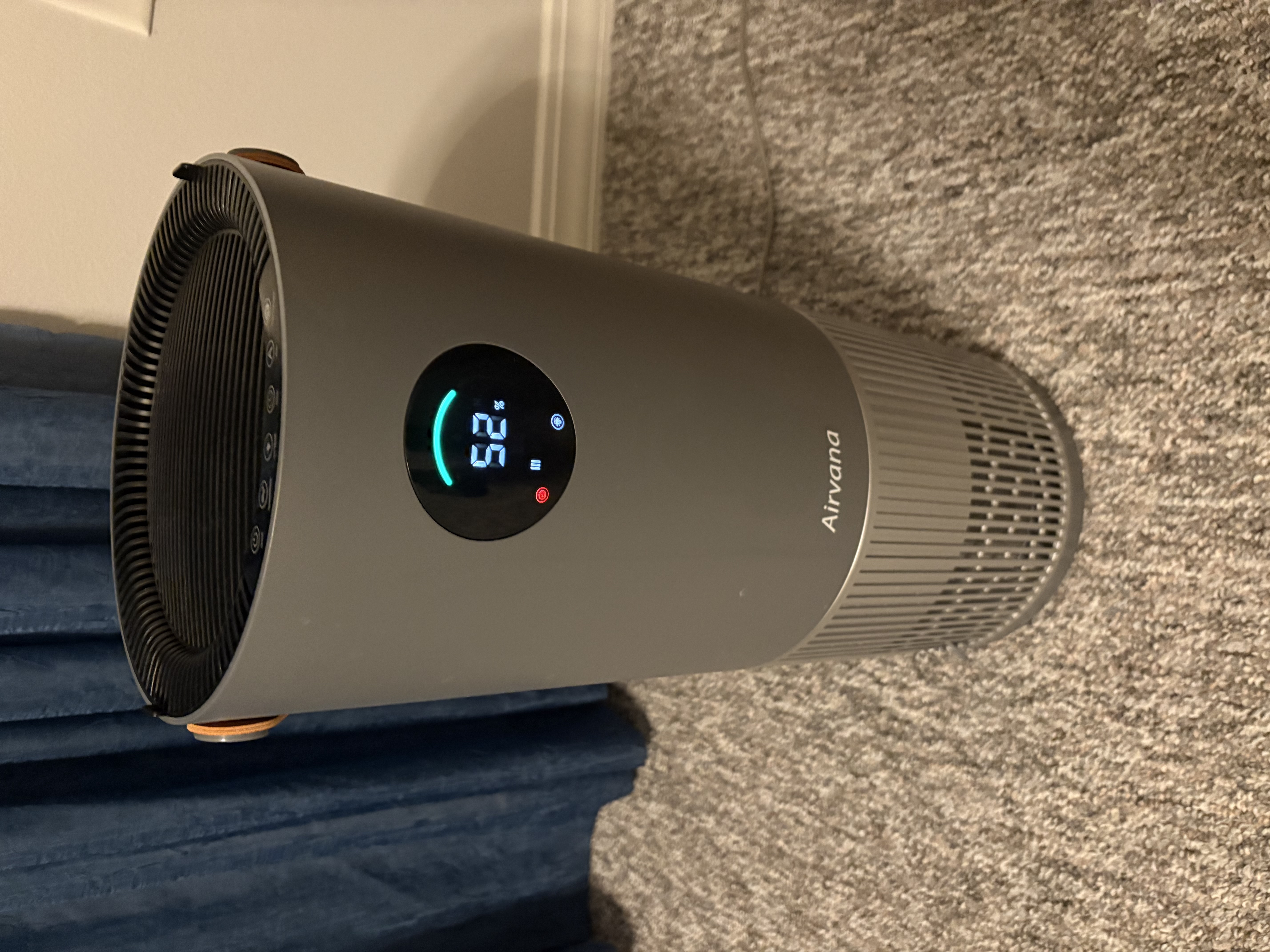

Airvsna bas a red light on lower left side.
