BELL+HOWELL BHNV10 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
BHNV10 User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BHNV10 and is the answer not in the manual?

Questions and answers

Related Manuals for BELL+HOWELL BHNV10

Summary of Contents for BELL+HOWELL BHNV10

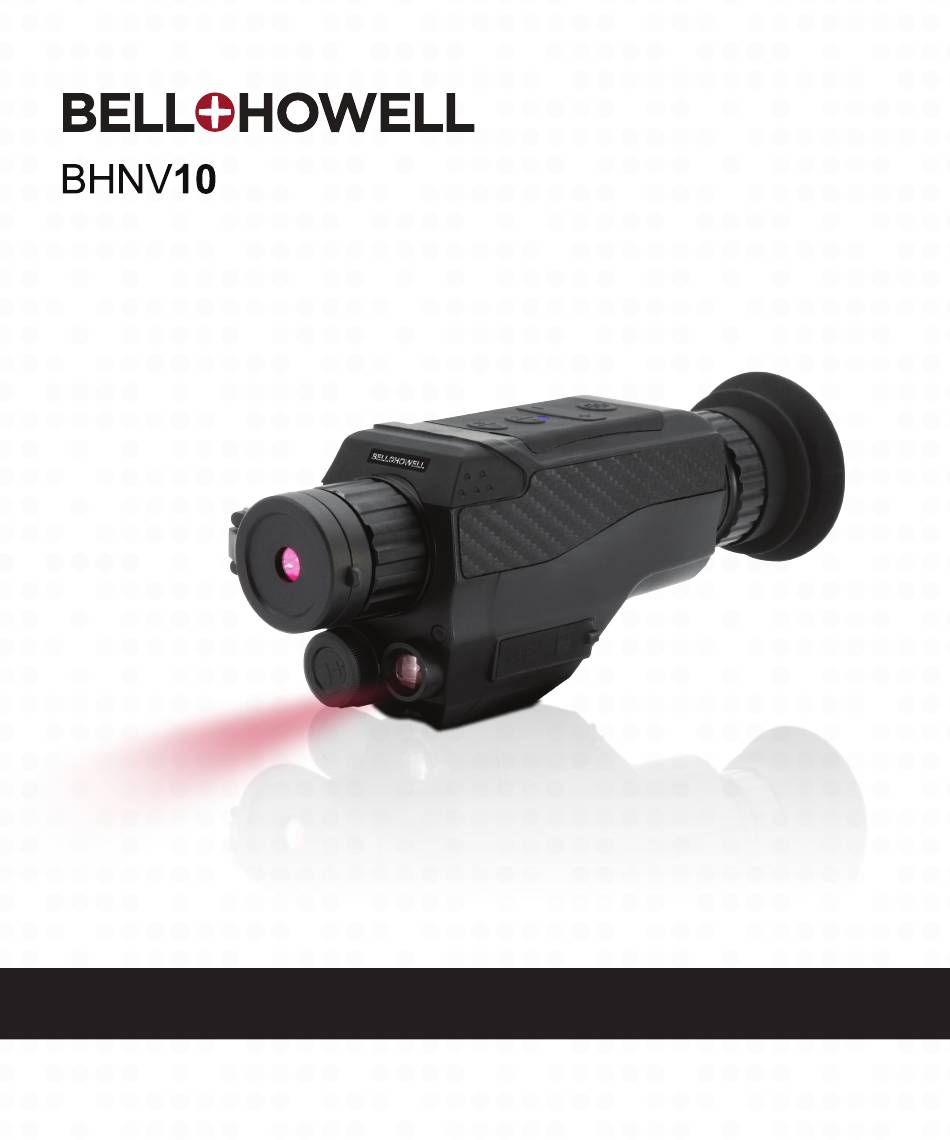

  • Page 1 BHNV10 User’s Manual...

  • Page 2: Federal Communications Commission Interference Statement

    1. About Your Monocular About this Manual Congratulations on purchasing the Bell+Howell BHNV10 Digital Night Vision Monocular! The contents of this manual are subject to change without notice. Note that the example screens and product illustrations shown in this User’s Guide may differ somewhat from the screens and configuration of the actual monocular.
  • Page 3 1. About Your Monocular accordance with provided instructions and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. FCC: SAR standard Value: 1.6 W/Kg, Maximal Measure: 0.4 W/kg CE Mark Warning This is a Class B product, in a domestic environment, this product may cause...
  • Page 4 1. About Your Monocular • The type of battery and the battery power level may cause the lens to be stuck up. Ensure you use the correct battery type and use a fully charged battery. • Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
  • Page 5 1. About Your Monocular 1.1 Monocular Interface 8. Zoom In / Out – Up / Down 1. Lens Cap 2. Focus Ring 9. Night Vision 3. Battery Compartment 10. Eyepiece 4. IR LED Light 11. Eye-Cup 5. Power | Mode 12.
  • Page 6 1. About Your Monocular 1.2 Button Function Description Function Description Press once to power on and press and hold for 3 seconds to power off. Press to cycle between Video, Photo and Power | Mode Playback modes. In Video Playback: Press to stop a playing video.
  • Page 7 1. About Your Monocular LED light to aid with vision and recording in IR LED Light darkness. Mount port for attaching to a tripod nut located Tripod Mount on the bottom of the Rotate left or right to focus the image on the Focus Ring screen.

  • Page 8: First Use

    2. First Use 2. First Use 2.1 Inserting the Memory Card Insert the included MicroSD memory card to record and store your videos and photos. When the battery is low, media stored on the memory card will not be erased. Please insert the MicroSD memory card by following the steps below: 1.
  • Page 9 2. First Use 1. Open the battery door by rotating the battery door counter clockwise until it comes off the monocular. 1. Insert the battery. Ensure that the negative side of the battery is inserted first. 2. Close the battery door by rotating it clockwise until it is tight. Note: Do not overtighten the battery door, this may cause the battery door to get stuck and make it difficult to open again.
  • Page 10 2. First Use 2.6 Connecting to a Computer Your monocular can connect to a computer to transfer photo and video files for viewing and editing. To connect the monocular to your computer, open the rubber jack door on the side of the monocular to access the USB port. Insert the small end of the USB plug into the monocular’s port, and the larger end into the USB port on your computer.
  • Page 11 2. First Use 2.10 Video Mode Press the POWER/MODE button to switch to Video Mode. The meaning of each icon within Video Mode is explained in the table below: 1. Video Mode 6. Zoom Level 2. Memory Card Inserted 7. Battery Level 3.
  • Page 12 2. First Use 2.11 Photo Mode Press the POWER/MODE button to switch to Photo Mode. The meaning of each icon within Photo Mode is explained in the table below: 1. Photo Mode 6. Zoom Level 2. Memory Card Inserted 7. Battery Level 3.
  • Page 13 2. First Use 2.12 Using the Zoom Function This monocular has a digital zoom function. To operate the zoom function, press the left side of the ZOOM button to zoom in closer to the subject, and press the right side of the ZOOM button to zoom away from the subject. 2.13 Using the IR Night Vision Mode This monocular has built-in infrared (IR) LEDs for night vision recording - giving you the ability to capture photos and videos in a dark environment.
  • Page 14 3. Using Your Monocular 3. Using the Monocular 3.1 Photo Shooting Power the monocular on and it will be ready to capture photos right away. A camera icon will appear in the top left corner of the screen. Press the POWER/MODE button to switch to a different mode.
  • Page 15 3. Using Your Monocular 3.3 Settings Your monocular has a number of settings that can be changed to your preferences. The monocular settings can be found below. 3.3.1 Photo Size (Resolution) Your monocular has a number of preset resolutions. 1. In Photo or Video Modes press and hold the MENU button. 2.
  • Page 16 3. Using Your Monocular 1. In Photo or Video Modes press and hold the MENU button. 2. Select ‘Video Size’ using the ZOOM button and press the OK button to enter the ‘Video Size’ submenu. 3. Press the ZOOM button to navigate the menu and press the OK button to confirm your selected setting (2.5K UHD, 1080p FHD, 1080p, 720p).
  • Page 17 3. Using Your Monocular confirm your selected setting (Off, On). 4. Press and hold the MENU button to exit the submenu. 3.3.8 Screen Brightness This function allows you to set the brightness of the LCD screen. 1. In Photo or Video Modes press and hold the MENU button. 2.
  • Page 18 3. Using Your Monocular 3. Press the ZOOM button to navigate the menu and press the OK button to confirm your selected language. 4. Press and hold the MENU button to exit the submenu. 3.3.12 Format Card The format setting erases all photos, videos and data stored on your memory card.
  • Page 19 3. Using Your Monocular 3.3.15 Version This setting displays the current firmware version of your monocular. 1. In Photo or Video Modes press and hold the MENU button. 2. Select ‘Version’ using the ZOOM button and press the OK button to view the monocular’s current firmware.
  • Page 20 3. Using Your Monocular 3.4 Playback Mode Videos and photos captured on your monocular can be easily played back. Press the MODE button to enter Playback mode, a play icon will show in the top left corner of the screen. Follow the steps below to navigate the Video Playback Mode: 1.
  • Page 21 4. Appendix 4.1 Technical Specifications Model Number Bell+Howell BHNV10 Fixed Focus • F/1.4 Telephoto Lens 4X Magnification • 8X Digital Zoom Zoom Image Sensor 10MP CMOS Sensor Shutter Electronic JPEG: 48MP • 30MP • 25MP • 20MP • 10MP •...
  • Page 22 Distributed under license of BHH LLC in the United States by: Elite Brands Inc. 40 Wall Street, 61st Floor, New York, NY 10005 USA Tel: 800-441-1100 www.elitebrands.com www.bellhowellcameras.com Copyright © 2022 Elite Brands Inc. If you’re having difficulties with your monocular, or would like further assistance, please call our toll-free technical support hotline at 800-441-1100.
