Eagle Group EL Series Assembly Instructions

EL Series Solid Gowning Benches
instruction sheet
#A230606
insPect contents iMMeDiAteLY AnD FiLe cLAiM With DeLiVerinG cArrier For AnY DAMAGe
You Are resPonsiBLe For DAMAGe to Your unit iF returneD iMProPerLY PAcKeD.

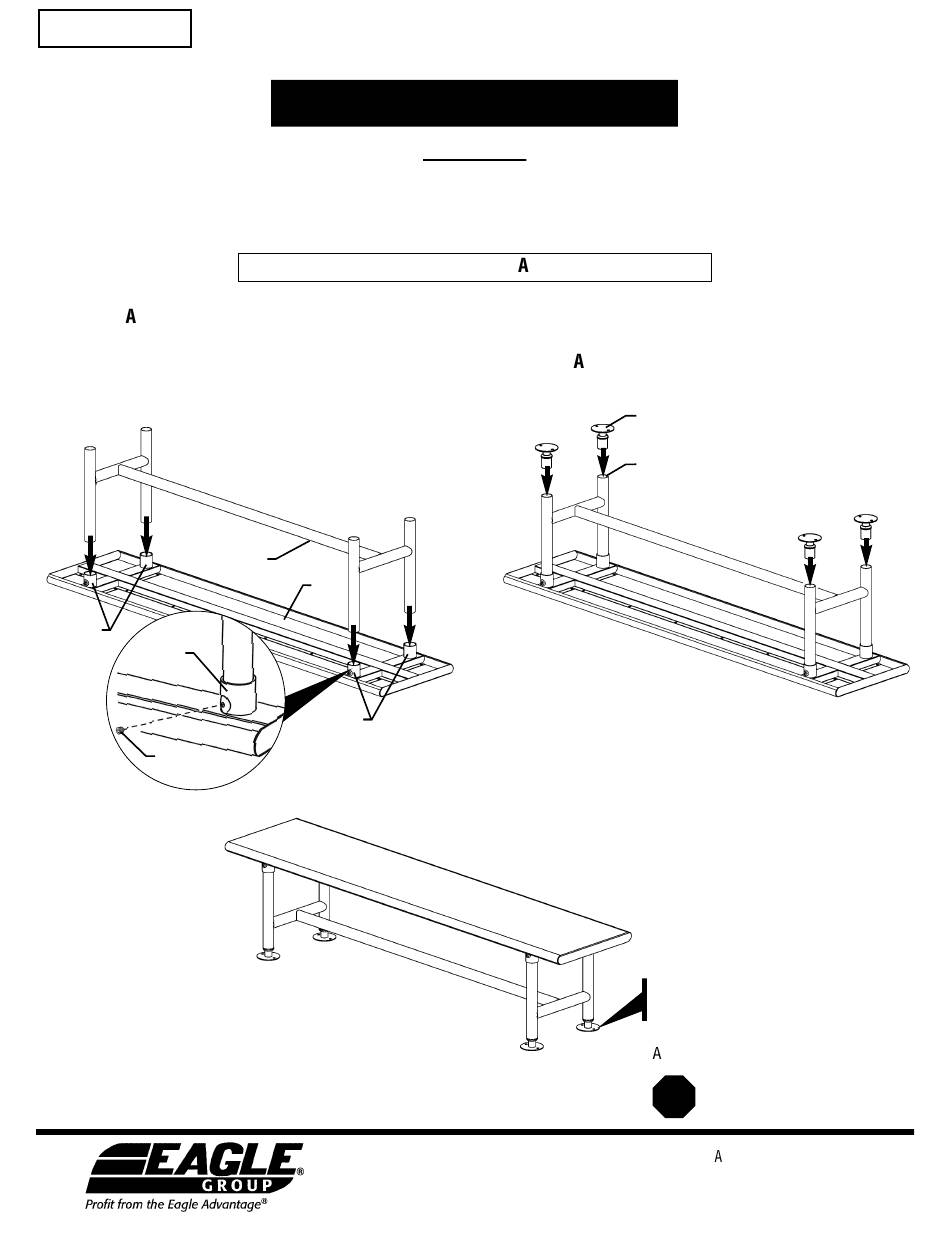

Step 1 - ttach frame to seat.
• Lay seat upside down so that the gussets face upward.
Note: Take care not to scratch the finish.
• Insert legs into gussets.
• Tighten all screws.
gussets
gusset
set screw
Step 3 - Flip the bench
onto its feet.
eagle Foodservice equipment, eagle Mhc, and specFAB are divisions of eagle Group. ©2019 by the eagle Group
with Welded H-Frame
ASSEMBLY INSTRUCTIONS
SAVE YOUR BOX AND ALL PACKING MATERIALS.
See reverse side for Units with djustable H-Frame.
h-frame
seat
gussets
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S. . • www.eaglegrp.com
• Phone: 302/653-3000 • (Foodservice) 800/441-8440 • (MHC) 800/637-5100
• Fax: 302/653-2065
CAUTION
Step 2 - ssemble feet to bottom of legs.
• Use a rubber mallet to insert feet into legs.
foot
bottom of leg

Step 4 - Secure feet to the floor.

Hardware not included.
ssembly is complete.
(End)
eG9928 revised 11/19
.
