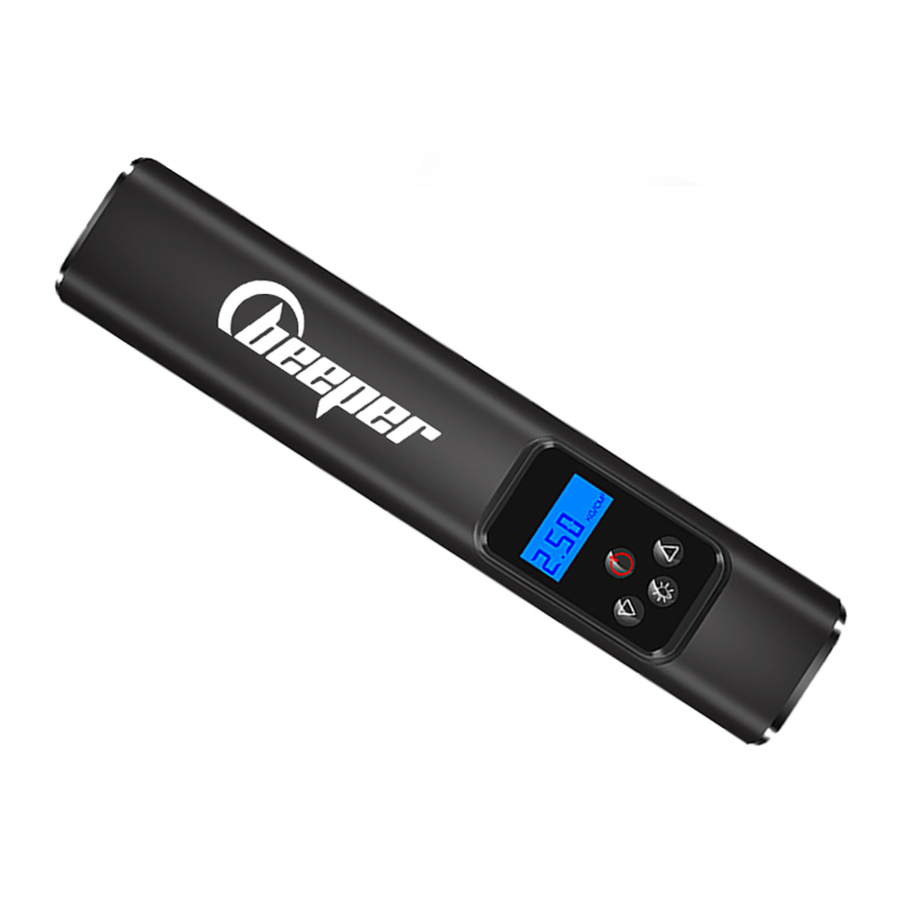

Beeper ME140 - Electric Inflator Air Pump Manual

Table of Contents

Contents

1 Precautions
2 Technical data
3 Product functions
4 Product use
5 Documents / Resources
- 5.1 References
- 5.2 Download manual

Precautions

Please read this manual before use.
Do not look at the light emitted directly, your eyes may be damaged.
This product is not a toy and should be kept away from children.
Do not use the pump near flammable & explosive liquids and gases.
Stay next to the product while inflation is in progress. After use for more than 8 minutes, the inflator should be left to stand for a few minutes.
If there is any abnormal noise or excessive temperature during inflation, please stop the operation immediately and allow the product to cool for at least 15 minutes.
If stored for a long time, the pump should be stored in a dry and closed place, and the battery should be recharged every three months.
Before using the product, please ensure that it has sufficient charge. The initial charge takes approximately 4 hours.
This product inflates tires for bicycles, cars, motorcycles, balls, outdoor toys and other comfort & leisure items.

Technical data

Power input on the car side: 12V 3A
Input voltage: 5V 2A
Operating current: 1-5A
Maximum current: <5A
No load current: <2A
Volume of expelled air: 15l / min
Inflation efficiency: Electric scooter (3 bars) = 30 seconds; Cycling (4.5 bars) = 5 minutes
Achievable pressure: 80-150 psi / 10.3 bar / 990 Kea / 10.5 kg / cm
Battery: 6000 mA 12.4V
Full recharge in 4 to 6 hours
2 charging modes provided: cigarette lighter (12V - 65W) and micro-USB
Operating temperature: -20°C / + 70°C
Integrated 6 LED emergency torch

Product functions

Long press on to turn on the device.
Short press on to select the unit of measurement.
Press to adjust the data.
Adjust the air pressure value. The number on the display flashes 4 times to indicate the end of the adjustment.
Short press to start inflation (the stop is automatic once the required pressure is obtained).
Long press on to turn on the built-in flashlight.

Product use

Reload your product. Either by the cigarette lighter cable supplied, or by the USB / Micro-USB cable also supplied in the box. The initial charge is approximately 4 hours.
Connect the end of the inflation hose to the valve of the tire or object to be inflated, then press the "decrease" and "increase" buttons to set the desired pressure. Please note, the order of the connections is important, be sure to respect it.
During inflation, the pump LED turns on automatically. It will turn off automatically once inflation is complete.
When inflation is complete, quickly remove the nozzle and hose from the valve to prevent pressure loss.
Once the operation is complete, remove the various parts and store your inflator in a dry and safe place.

The electric inflator is recommended for inflating small objects (balls, toys) or your travel vehicles such as electric scooters or bikes (pressures less than 6 bars).
For higher pressures (example: road bike), inflation will take longer and will require several cycles. In this context, it will therefore be more suitable for supplemental inflation.
