AS-12/15RW BEC
AS-12/15RW BEC (EASY)

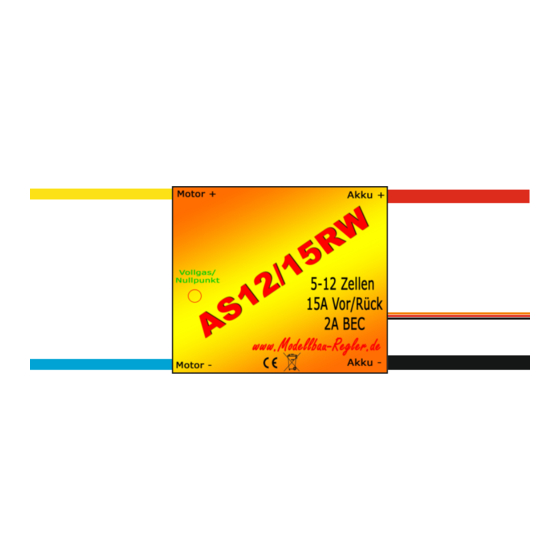

Features:
5-12 cells NiCd oder NiMh / 6-12 V lead-acid battery
2-3 S Lipo (without undervoltage protection)
Max - current: 15 A
BEC: max. 2 A
programable or EASY, Failsafe, LED-Monitor,
intelligent soft-polarity-reversal
User Manual
Motor+
Motor-
burst 20 A
to receiver
Advertisement
Table of Contents
Summary of Contents for Modellbau-Regler AS-12/15RW
- Page 1 User Manual AS-12/15RW BEC AS-12/15RW BEC (EASY) Motor+ to receiver Motor- Features: 5-12 cells NiCd oder NiMh / 6-12 V lead-acid battery 2-3 S Lipo (without undervoltage protection) Max - current: 15 A burst 20 A BEC: max. 2 A...
- Page 2 Autosetup AS12-15RW The ESC must be programmed to the receiver or the RC system before it is used for the first time. 11. Connect the ESC to the receiver 12. Turn on the transmitter, move the throttle stick to full throttle forward 13.
- Page 3 Autosetup AS12-15RW EASY ESCs of the EASY series do not have to be programmed! They are self-learning and very easy to use. When connecting, proceed as follows: 1. Connect the ESC to the receiver 2. Switch on the transmitter, move the throttle stick to "zero point". 3.
- Page 4 safe startup with motor beep To avoid accidents, the ESC only starts to operate when the throttle stick on the transmitter is moved to the 0 throttle position. The ESC then acknowledges the readiness for operation with a motor beep and the LED lights up.
- Page 5 Safety BEC This ESC is equipped with a safety BEC. This means that the BEC system CANNOT be damaged by overload. This achieves a high level of driving safety and the BEC still provides enough power even with 12 cells. The BEC system is short-circuit-proof and overload-proof. The ESC can also be operated without a BEC.
- Page 6 Therefore, in such cases, do not hesitate to send us an email to Info@Modellbau-Regler.de. We guarantee you will get a short-term answer, often within 24 hours. In most cases we can then solve problems without sending them in and wasting money and time. We fully understand that not everyone is an electronics or model building expert and we help where we can.
- Page 7 our ESC family AS 12/6 RW EASY 12 cells, 6A, with and without cables 20 x 17 x 5 mm 2 g AS 12/15 RW EASY or Normal 12 cells, 15A, BEC 31 x 26 x 7 mm 25 g AS 12/40 RW EASY or Normal 12 cells, 2-3s with LiPo protection, 40A, BEC 47 x 37 x 9 mm 40 g...
- Page 8 Tested according to the following basic standards: EN 55014-1/A1 55014-2 / WEEE DE 74067127 Area of use: radio controlled models If you have any questions or problems, please email us at: Info@Modellbau-Regler.de Inhaber: Manja Willing Postanschrift: Ostpreußenstr. 26 , 49525 Lengerich Steuernummer: 327/5241/1447 www.Modellbau-Regler.de...
